Question

In: Computer Science

Write a Matlab function called “SimpleChannel” which takes a signal as an input, simulates a channel...


Write a Matlab function called “SimpleChannel” which takes a signal as an input, simulates a channel and returns the transmitted signal.. SimpleChannel function will add a randomly generated noise (look for “rand” function) to the signal and return it. You can adjust the amplitude of the noise as you want in order to have a distinct noise effect. Then write another matlab code to show the channel noise. First create the signal and then simulate the channel by using your SimpleChannel function. Lastly plot the two signals in the same figure to show the effect of the noise.

Function : [Tran] = SimpleChannel(Rec)

The Signal : x(t) = 2 cos(2πt) + 3 cos(4πt)

Time interval : from 0s to 5s incremented by 0.01s

Note: Don’t forget to put title and label names.


Solutions

Expert Solution

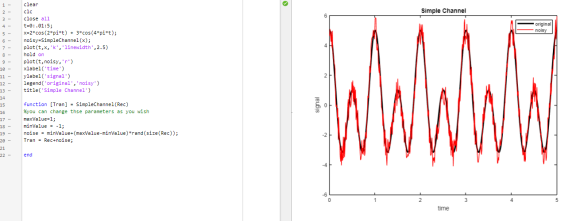

clear
clc
close all
t=0:.01:5;
x=2*cos(2*pi*t) + 3*cos(4*pi*t);
noisy=SimpleChannel(x);
plot(t,x,'k','linewidth',2.5)
hold on
plot(t,noisy,'r')
xlabel('time')
ylabel('signal')
legend('original','noisy')
title('Simple Channel')

function [Tran] = SimpleChannel(Rec)
%you can change thse parameters as you wish
maxValue=1;
minValue = -1;
noise = minValue+(maxValue-minValue)*rand(size(Rec));
Tran = Rec+noise;

end
