A 460 V 25 Hp, 60 Hz, 4-pole, Y-connected induction motor has the following parameters in...

A 460 V 25 Hp, 60 Hz, 4-pole, Y-connected induction motor has the following parameters in ohms per phase referred to the stator circuit.

R₁= 0.641 W R₂= 0.332 W X₁= 1.106 W X₂=0.464 W X_m=26.3 W

The rotational losses are 1100 W and are assumed to be constant. The core loss is included in this figure. The motor is supplied at rated voltage and rated frequency. Calculate;

Synchronous speed
Slip at which maximum torque occurs
The maximum torque of the motor
Assuming that the torque curve is linear between T_max and synchronous speed, what is the motor mechanical torque at S_Tmax/2?

The supply frequency is reduced to 30 Hz.

What should be the supply voltage to keep the pole flux constant at 60 Hz value?
Repeat the solution for 30 Hz
Compare results of 30 Hz and 60 Hz operation.

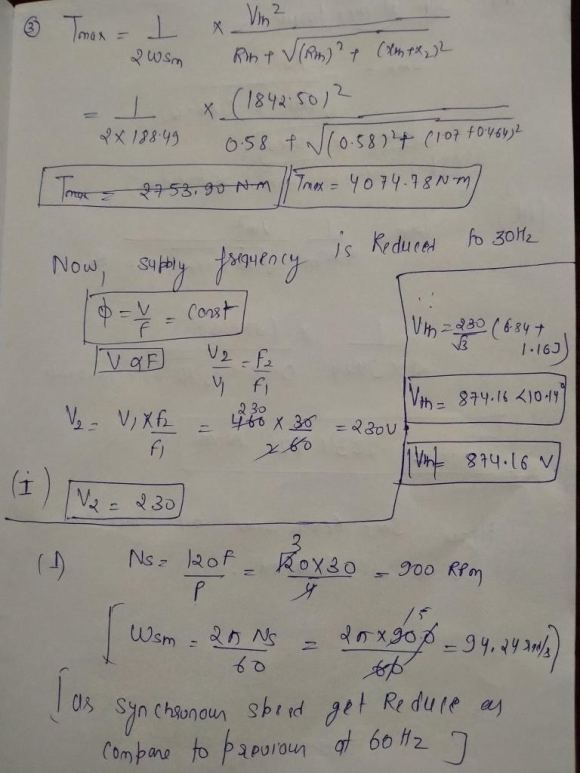

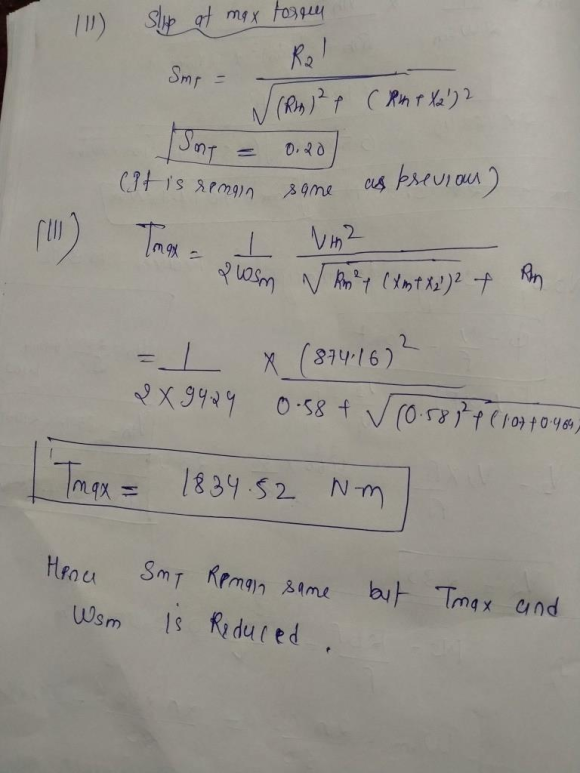

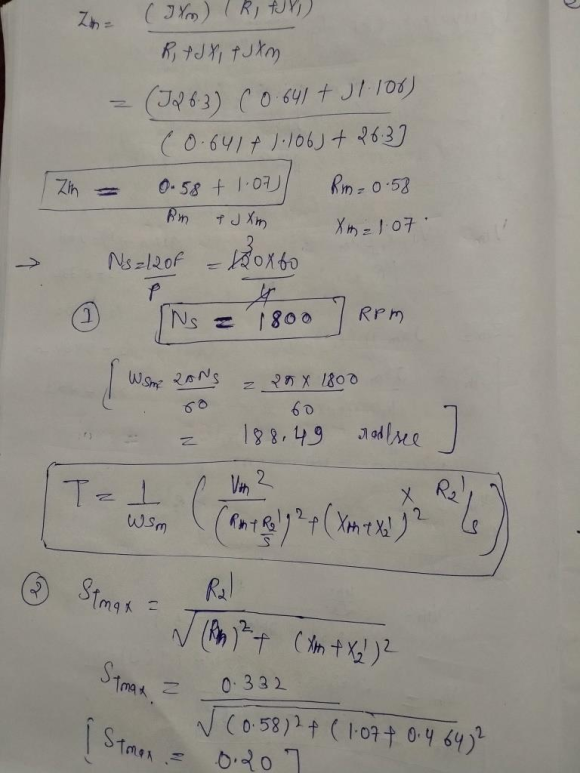

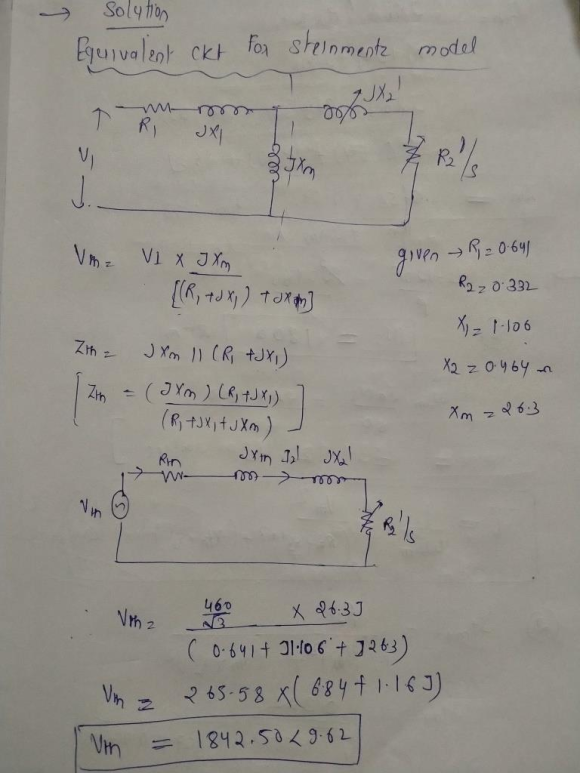

Expert Solution

answer is attached..

Manojponduru answered 1 month ago

A Y- connected, 460- V, 1710- rpm, 60- Hz, 4- pole squirrel cage induction motor has...

A Y- connected, 460- V, 1710- rpm, 60- Hz, 4- pole squirrel cage induction motor has a rotor current at starting 6 times the rotor current at full load. Calculate: a. The starting torque as percent of full load torque. b. The slip and speed at which the motor develops maximum torque. c. The maximum torque developed b the motor as percent of its full load value.

A 3 phase 460 V, 60 Hz, 4 pole, delta connected induction motor has the following...

A 3 phase 460 V, 60 Hz, 4 pole, delta connected induction motor has the following equivalent circuit parameters. Rs = 0.42 Ω, Rr = 0.23 Ω, Xs = Xr = 0.82 Ω. Xm = 22 Ω. The no load loss = 60 W and may be assumed constant. The rotor speed is 1750 rpm. Use the approximate equivalent circuit ( i.e. the Xm branch is at the very left of the circuit) determine the following a. the synchronous speed...

A three-phase, 11.2-kW, 1750-rpm, 460-V, 60-Hz, four-pole, Y-connected induction motor has the following parameters: Rs =...

A three-phase, 11.2-kW, 1750-rpm, 460-V, 60-Hz, four-pole, Y-connected induction motor has the following parameters: Rs = 0.53 Ω, R’r = 0.38 Ω, Xs = 1.23 Ω, X’r = 1.45 Ω, and Xm = 25.2 Ω. The motor is controlled by varying both the voltage and frequency. The volts/hertz ratio, which corresponds to the rated voltage and rated frequency, is maintained constant. a) Calculate the maximum torque, Tm and the corresponding speed, ꞷm for 60 Hz and 30 Hz. b) Repeat...

A three-phase, 460-V, 60-Hz, six-pole Y-connected induction motor has Rs = 0.32 Ω, R′ r =...

A three-phase, 460-V, 60-Hz, six-pole Y-connected induction motor has Rs = 0.32 Ω, R′ r = 0.18 Ω, Xs = 1.04 Ω, X′ r = 1.6 Ω, and Xm = 18.8 Ω. The no-load loss, Pno load, is negligible. The load torque, which is proportional to speed squared, is 180 N#m at 1180 rpm. If the motor speed is 850 rpm, determine (a) the load torque demand TL; (b) the rotor current I′ r; (c) the stator supply voltage Va;...

A 60-Hz, 208-V, 2 pole wye connected induction motor is rated at 15hp. The equivalent parameters...

A 60-Hz, 208-V, 2 pole wye connected induction motor is rated at 15hp. The equivalent parameters are as follows: RS = 0.2 Ω RR’ = 0.120 Ω XS = XR’ = 0.41 Ω Xm = 15 Ω The machine has negligible miscellaneous losses but experiences mechanical loss and core loss of 250 W and 180 W, respectively. For a slip of 5 %, determine a) The line current. (44.8  -25.5  A) b) The stator copper losses (1.205 kW)...

Q3) A three-phase, Y-connected, 220 V, 13 kW, 60 Hz, six-pole induction motor has the following...

Q3) A three-phase, Y-connected, 220 V, 13 kW, 60 Hz, six-pole induction motor has the following parameter values in Ω/phase referred to the stator: R1 = 0.3 Ω. R2' = 0.15 Ω X1 = 0.5 Ω. X2'= 0.21 Ω Xm = 13.25 Ω The total rotational losses are 450 W. The core loss is lumped in with the rotational losses. For a slip of 0.02, and based on approximate equivalent circuit, determine: (i) The rotor speed. (ii) The stator current....

The parameters of a 3-phase, 4-pole, 50 Hz, Y-connected, wound-rotor induction motor are listed below. These...

The parameters of a 3-phase, 4-pole, 50 Hz, Y-connected, wound-rotor induction motor are listed below. These are the default values of the “Asynchronous Machine” model in MATLAB Simulink. r1=0.5968 ?; r2=0.6258 ?; L1=0.0003495 H; L2=0.005473 H; Lm=0.0354 H; Stator line voltage = 400 V rms. The motor for rotor speeds nm= 0 to 1500 rpm. X1= 0.1097 ohm, X2= 1.719 ohm , Xm= 11.12 ohm, RTH = 0.5853 , XTH = 0.1395 and VTH = 230.82 V. Suppose the motor...

A 3-phase, 380 V, 50 Hz , 6 pole, Y-connected induction motor has R1 = 0.1...

A 3-phase, 380 V, 50 Hz , 6 pole, Y-connected induction motor has R1 = 0.1 W , X1 = 0.4 W, R2’ = 0.12 W , X2’ = 0.4 W, Xm = 20 W , Pr = 1 kW. The motor is operated at 970 rpm what is the efficiency?

A 440-V, 3-φ 50-Hz, 4 poles, 37.3 kW, Y-connected induction motor has the following parameters: R1=...

A 440-V, 3-φ 50-Hz, 4 poles, 37.3 kW, Y-connected induction motor has the following parameters: R1= 0.1 Ω, X1 = 0.4 Ω , R2′ = 0.15 Ω , X2′ = 0.44 Ω Motor has stator core loss of 1250 W and rotational loss of 1000 W. It draws a no-load line current of 20 A at a p.f. of 0.09 (lag). When motor operates at a slip of 3%, calculate a. input line current and p.f. [57.4@29°A, 0.875 lag] b....

396 v, 60 Hz, 600 hp, 0.6 pf-leading, four-pole triangle connected synchronous motor has 0.9Ω synchronous...

396 v, 60 Hz, 600 hp, 0.6 pf-leading, four-pole triangle connected synchronous motor has 0.9Ω synchronous reactance. Friction; wind; core losses and armature resistance are neglected. a) If the motor is operating under magnitude of phase current (ia) 216 Ampere and power factor of 0.6 lagging, 1. Find the input power of motor in hp ( 2. Find the generated voltage, EA 3. Find the torque and the maximum inducible torque in current state. b) If EA is increased by...
