A transformer with rated power of 250 kVA and a secondary voltage of 230/400 V, 50...

A transformer with rated power of 250 kVA and a secondary voltage of 230/400 V, 50 Hz, delivers energy to the following loads:
- 1 three-phase engine of nominal power 30 kW, 93% efficiency and power factor 0.9
- 90 lightning systems of 250 W each, rated voltage 230 V, and cos(phi)=0.6 (i), connected in a balanced manner
Consider a direct sequence and a reference of voltages V1=V∠0º
Find:
a) The true, reactive and apparent power provided by the transformer
b) The effective value of the current in each load
c) The phasors of the line currents provided by the transformer
d) The equivalent single phase circuit of the load
e) The reactive power and capacity (in wye and delta configurations) of a battery of capacitors so that we obtain a global power factor of 0.95 (i)
f) The new apparent power provided by the transformer after correcting the power factor
g) The effective value of the line currents if the transformer works at a power factor of 0.7 (i) in a balanced manner
h) The effective value of the line currents if the transformer works at a power factor of 1 in a balanced manner

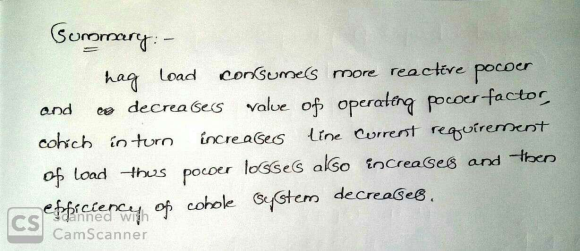

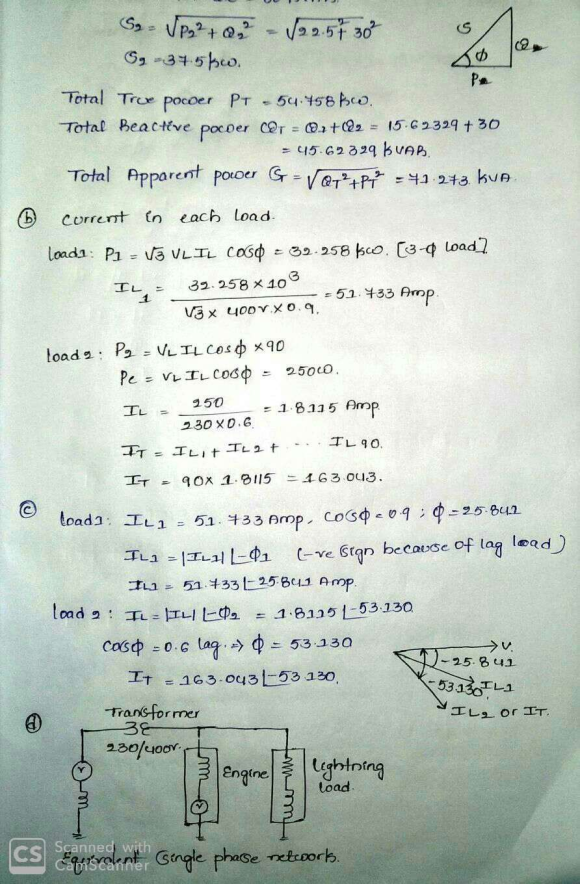

Expert Solution

Manojponduru answered 1 month ago

2.A n+400-k VA, 2300+n- 230+n-v, 60-hz transformer supplies a 0.8 lagging power-factor load whose KVA Is...

2.A n+400-k VA, 2300+n- 230+n-v, 60-hz transformer supplies a 0.8 lagging power-factor load whose KVA Is adjustable from no load to 120 percent rated KVA. The percent resistance, percent reactance, and percent core loss are m+1.56, m+3.16, and m+0.42 respectively. For 2 KVA increments of load, tabulate and plot the efficiency of the transformer from no load to 120 percent rated load. Use Matlab n=20 m=.2

A three-phase asynchronous motor with squirrel cage rotor is available with: Voltage: 230/400 V Frequency: 50...

A three-phase asynchronous motor with squirrel cage rotor is available with: Voltage: 230/400 V Frequency: 50 Hz Number of Poles: 10 In addition, the following parameters of the equivalent circuit are known: R1 = 0.5  X1 = 3  R´2 = 0.8  X´2 = 3.5  Mechanical losses are considered to be negligible and the parallel branch of the equivalent circuit. 1. Draw the approximate equivalent circuit of the motor without the branch in parallel. 2. Indicates the...

Plate values of a three-phase transformer are given below: 1600 kVA, 15 kV / 400 V,...

Plate values of a three-phase transformer are given below: 1600 kVA, 15 kV / 400 V, 50 Hz, io = 1.2%; ukN = 6%, idle losses 2450 W, rated copper losses of power 14500 W; Dy5. a) Calculate primary and secondary line and phase currents. b) Secondary at 75% load in power factor with 0.85 inductance and 0.85 capacity calculate the voltage separately. Compare and interpret the results. capacity at what time of day can the upload be seen? To...

For a power supply with full wave bridge rectifier, input voltage is 230 V and required...

For a power supply with full wave bridge rectifier, input voltage is 230 V and required output voltage is 12 V DC Load resistance is of 100 . Determine output rms voltage, dc current, rms current, power, ac power, efficiency of the rectifier, form factor, ripple factor, transformer utilization factor, and size of the transformer Draw complete diagram of the supply circuit

An ideal transformer has 50 turns in its primary and 250 turns in its secondary. 12...

An ideal transformer has 50 turns in its primary and 250 turns in its secondary. 12 V ac is connected to the primary. Find: a. The voltage ac available at the secondary. b. Current in the 10 ohms device connected to the secondary. c. Power supplied to the primary. d. Power supplied to the secondary.

A single-phase 300-kVA, 220/4400 V, 60 Hz transformer yielded the following information when tested: High voltage...

A single-phase 300-kVA, 220/4400 V, 60 Hz transformer yielded the following information when tested: High voltage winding open: Voltage=220 V, Current=40 A Power=l 000W Low voltage terminal shorted: Voltage= 195 V, Current=68.18A Power=4000W Find the equivalent circuit of the transformer as viewed from the high voltage Calculate the .efficiency of the transformer when it delivers its rated load at rated terminal voltage and 8 power factor lagging.

A star-connected induction motor has the following rated parameters: Voltage UN = 400 V, current IN...

A star-connected induction motor has the following rated parameters: Voltage UN = 400 V, current IN = 8 A, frequency fN = 50 Hz, speed nN = 1480 rpm, power factor cos ĳN = 0.8, efficiency ȘN = 0.9, magnetizing inductance Lm = 280 mH, stator leakage inductance LVı = 9 mH and rotor leakage inductance LUı = 14 mH. For the rated operating point of the motor, calculate the per-unit values for electric active power Pel, mechanical power Pmech,...

4.11)The equivalent circuit parameters of a 150 kVA, 2400 V/ 240 V, 60 Hz transformer are...

4.11)The equivalent circuit parameters of a 150 kVA, 2400 V/ 240 V, 60 Hz transformer are as follows: RHV = 0.21Ω, RLV = 2mΩ, XlHV = 0.45Ω, XlLV = 4.6mΩ, XmHV = 1.6kΩ, and RcHV = 12kΩ. The transformer delivers to a load, rated current at a power factor of 0.85 lagging at rated voltage. Determine the input voltage, current, apparent power and power factor, (a) using the approximate equivalent circuit, and (b) not using the approximate equivalent circuit. Problem...

A single-phase transformer of 3 kVA, 60 Hz, has a voltage ratio on open circuit of...

A single-phase transformer of 3 kVA, 60 Hz, has a voltage ratio on open circuit of 240 / 120 V. The primary and secondary resistances are 0.25 Ω and 0.05 Ω respectively, the corresponding leakage reactance being 0.75 Ω and 0.18 Ω. The transformer delivers current to the load at a 0.9 power factor lagging. Determine the voltage across the load. Determine the power dissipated by the load. Determine percentage voltage regulation referred to the secondary...

Exercises 1. A 25 kVA single-phase transformer has the primary and secondary number of turns of...

Exercises 1. A 25 kVA single-phase transformer has the primary and secondary number of turns of 200 and 400, respectively. The transformer is connected to a 220 V, 50 Hz source. Calculate the (i) turns ratio, and (ii) mutual flux in the core. 2. A 25 kVA, 2200/220 V, 50 Hz single-phase transformer’s low voltage side is short-circuited and the test data recorded from the high voltage side are P=150 W, I1 = 5A and V1 = 40 V. Determine...
