Assume that an EM plane wave with an electric field intensity E = (3xˆ − 5zˆ)...

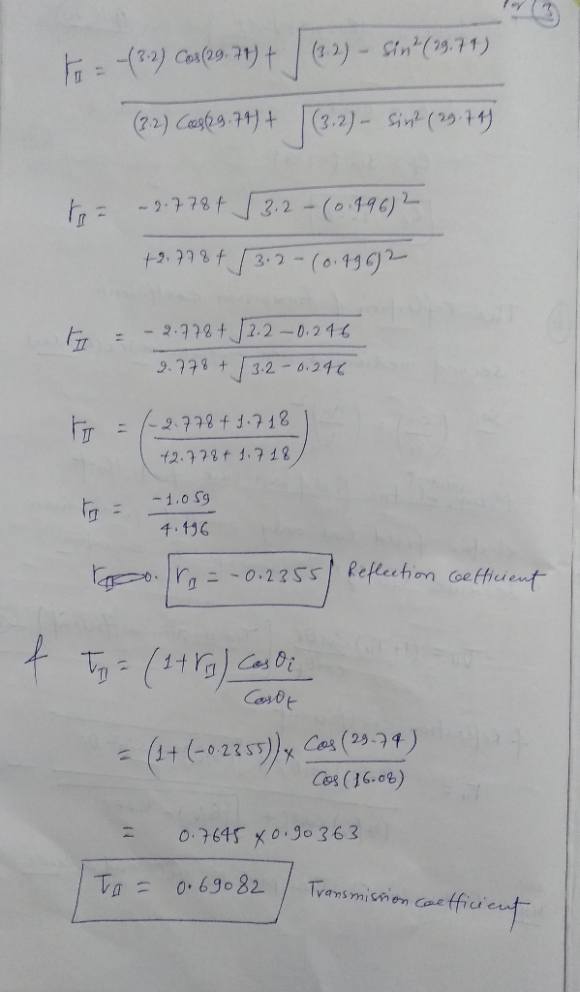

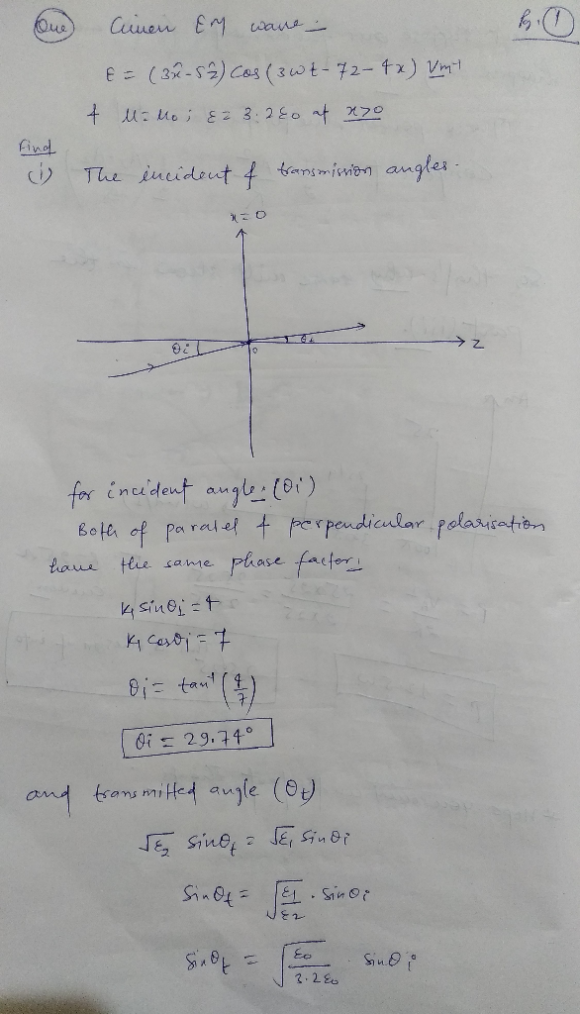

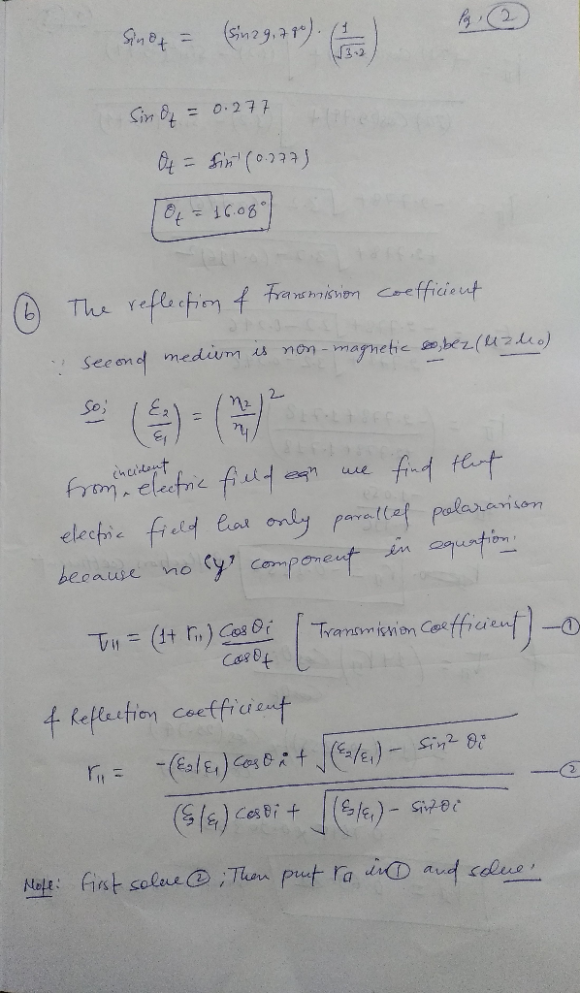

Assume that an EM plane wave with an electric field intensity E = (3xˆ − 5zˆ) cos(3ωt − 7z − 4x) (V m−1) is incident from air on the dielectric medium μ = μ0, ε = 3.2ε0 at x > 0. Determine: i) the incident and transmission angles; ii) the reflection and transmission coeffiients; iii) The Brewster angle. How do the determined values differ for those in vacuum?

Expert Solution

Manojponduru answered 1 month ago

1. An EM wave has a maximum electric field of 250 V / m. Determine the...

1. An EM wave has a maximum electric field of 250 V / m. Determine the average intensity of the wave. a. 120 W/m^2 b. 0.66 W/m^2 c. 170 W/m^2 d. 83 W/m^2 e. 0.89 W/m^2 2. The various colors of visible light differ in: a. frequency and wavelength b. frequency and its speed in a vacuum c. only in wavelength d. only in frequency e. its speed in a vacuum 3. Determine which of the following types of waves...

a. Write an expression for the electric field vector of a uniform plane wave in free...

a. Write an expression for the electric field vector of a uniform plane wave in free space that is propagating in the direction given by a line from the origin to the point (3,0,4) and that is linearly polarized along the y-direction. It has a wavelength of 2 �m and reaches its positive maximum amplitude of 20 V/m at a distance of 1 m from the origin at t = 0 s. b. Compute the irradiance of this wave.

Consider an electromagnetic harmonic plane wave, where the peak electric field amplitude is 1 N/C. a)...

Consider an electromagnetic harmonic plane wave, where the peak electric field amplitude is 1 N/C. a) What is the irradiance of this plane wave? b) Consider such a wave with a frequency in the centre of the visible band of the electromagnetic spectrum. What is the number of photons passing through an area of 1 m2 in 1 second? (Assume the area the light is passing through is perpendicular to the wave’s propagation direction). c) Now consider two additional waves...

Find electric field intensity E at P(0, 0, 1): (i) a point charge Q = 4πε0...

Find electric field intensity E at P(0, 0, 1): (i) a point charge Q = 4πε0 C at the origin; (ii) a line charge distribution with ρL = 2πε0 C/m on the x-axis with x ranging from -1 to +1 m.; (iii) a square surface charge distribution with ρS = 2ε0 C/m2 on the z = 0 plane with x and y both ranging from -1 to +1 m.; and (iv) a circular surface charge distribution with ρS = 2ε0...

In an EM wave traveling west, the B field oscillates up and down vertically and has...

In an EM wave traveling west, the B field oscillates up and down vertically and has a frequency of 91.0 kHz and an rms strength of 7.15×10−9T. Assume that the wave travels in free space. Part A: What is the frequency of the electric field? Express your answer to three significant figures and include the appropriate units. Part B: What is the rms strength of the electric field? Express your answer to three significant figures and include the appropriate units....

The electric field of an electromagnetic wave that propagates in a vacuum is given by: ?⃗...

The electric field of an electromagnetic wave that propagates in a vacuum is given by: ?⃗ (?, ?) = 2 cos (α? - ω?) ? + 2 sin (α? - ω?) ?, ?? (?/?); ???? α ? ω ??? ?????????? a) What is the amplitude E0 of the electric field, its angular frequency, period, frequency f, wave number | ?⃗ |, wavelength, its speed u and its phase constant φ? b) I) Determine the electric field in the x-y plane...

The magnetic field of a uniform plane wave that propagates in a vacuum, is given by...

The magnetic field of a uniform plane wave that propagates in a vacuum, is given by the expression: B (r, t) = (10^−6 )[xˆ + 2yˆ + Bzzˆ] cos [ωt + 3x - y - z] in m.k.s.units and where xˆ, yˆ, zˆ are unit vectors along the cartesians axes . Find: (a) The propagation direction. (b) The wavelength λ. (c) The angular frequency ω. (d) The associated electrical field

A 600 Mrad/s EM wave travels through air and is polarized with the electrical field normal...

A 600 Mrad/s EM wave travels through air and is polarized with the electrical field normal with the plane of incidence. This wave impinges on the surface of a perfect conductor on plane z=0 at 50º and its electric field has an amplitude of 2V/m. Find the electrical field resulting from incident and reflected wave on frequency domain. Also, find the current density at the interface between air and the perfect conductor

The components of the electric field in an electromagnetic wave traveling in vacuum are described by...

The components of the electric field in an electromagnetic wave traveling in vacuum are described by Ex = 0, Ey = 0, and Ez = 2.84 sin(8.73x - ωt) V/m, where x is measured in meters and t in seconds. Calculate the frequency of the wave. Tries 0/99 Calculate the wavelength of the wave. Tries 0/99 Calculate the amplitude of the magnetic field of the wave. Tries 0/99 Calculate the intensity of the wave. Tries 0/99

Derive wave equations or the electric field and magnetic field in vacuum. (Refer to Griffiths "Introduction...

Derive wave equations or the electric field and magnetic field in vacuum. (Refer to Griffiths "Introduction to electrodynamics" Chapter 9.2.1)
