Use the Smith Chart to find the input impedance of a lossless line of length l...

Use the Smith Chart to find the input impedance of a lossless line of length l terminated in a normalised load impedance zL for l = 0.2λ and zL = 1 + j2. How the value of the input impedance will change if l = 0.5λ? (Show all steps on the Smith chart).

Solutions

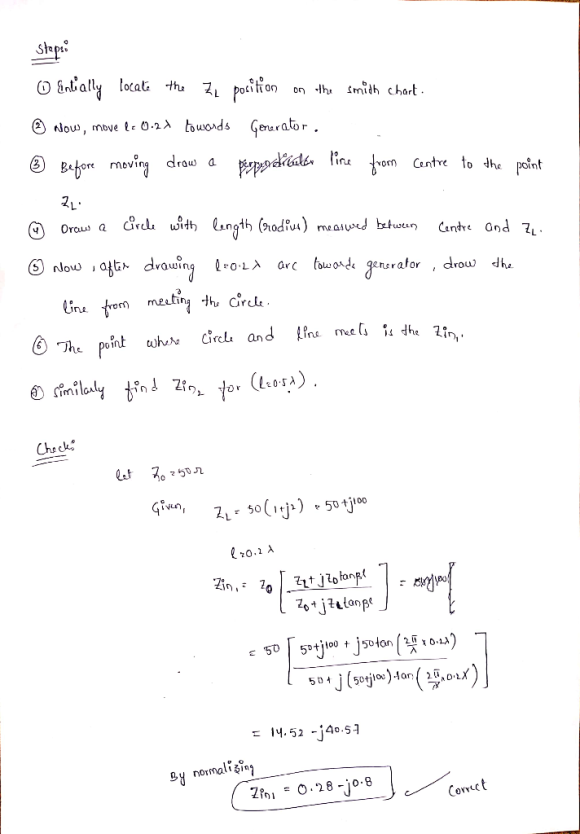

Expert Solution

Manojponduru answered 3 months ago
Next > < Previous

Related Solutions

Derive aformula for the input impedance of a terminated lossless transmission line.
Derive aformula for the input impedance of a terminated lossless transmission line.
A lossless transmission line of length l=0.4? is terminated with a complex load impedance Z_L=60+j50 ?...
A lossless transmission line of length l=0.4? is terminated with a complex load impedance Z_L=60+j50 ? and characteristic impedance (Z_0=50 ?). Use Smith Chart to find: The VSWR on the line; The reflection coefficient at the load and its phase angle; The load admittance of the line Y_L in S; The input impedance of the line in ?; The distance to the first voltage minimum from the load in ?; and The distance to the first voltage maximum from the...
Assuming that the length of a lossless transmission line with the normalized load impedance of zL...
Assuming that the length of a lossless transmission line with the normalized load impedance of zL = ZL/Z0 = 1 + j1 is l = 2.25λz , there are a total of (A) 2 voltage maxima and 2 voltage minima (B) 2 voltage maxima and 3 voltage minima (C) 3 voltage maxima and 2 voltage minima (D) 4 voltage maxima and 4 voltage minima (E) 4 voltage maxima and 5 voltage minima (F) 5 voltage maxima and 4 voltage minima...
Derive the input impedance of the transmission line of Z0, length ‘l’ and terminated with Zl.
Derive the input impedance of the transmission line of Z0, length ‘l’ and terminated with Zl.
(Use Smith Chart) A 50 Ω line is terminated by a 75 Ω resistor. The input...
(Use Smith Chart) A 50 Ω line is terminated by a 75 Ω resistor. The input terminals are connected to the output terminals of a 30 Ω line. Both lines are 0.12 λ long. a. Find Zin and Γin at the input of the 30 Ω line b. SWR values on both lines Use Smith Chart
Use the Smith Chart to find the shortest lengths of an open-circuited length of 50 Ω...
Use the Smith Chart to find the shortest lengths of an open-circuited length of 50 Ω line to give the following input impedance. (a) ZIN = 0 (b) ZIN = ∞ (c) ZIN = j25 Ω (d) ZIN =-j50Ω (e)
12. At a frequency of 80 MHz, a lossless transmission line has a characteristic impedance of...
12. At a frequency of 80 MHz, a lossless transmission line has a characteristic impedance of 300Ω and a wavelength of 2.5m. (a) Find L; (b) Find C. (c) If the line is terminated with the parallel combination of 200Ω and 5 pF, determine Γ and SWR.
A lossless 50-Ω transmission line is terminated in a load with Z L = (35 −...
A lossless 50-Ω transmission line is terminated in a load with Z L = (35 − j47.5) Ω using a short circuited stub. Use the Smith chart to determine position and length line for the stub? show step by step by hand and draw by hand I want details so I can understand
A lossless 50-Ω transmission line is terminated in a load with Z L = (35 −...
A lossless 50-Ω transmission line is terminated in a load with Z L = (35 − j47.5) Ω using a short circuited stub. Use the Smith chart to determine position and length line for the stub? show step by step I want details so I can understand
A lossless 60 Ω line is terminated by a (60 + j60) Ω load. (a) Find...
A lossless 60 Ω line is terminated by a (60 + j60) Ω load. (a) Find Γ and VSWR. (b) If Zin = 120 - j60 Ω, how far (in terms of wavelengths) is the load from the generator? (c) What fraction of the voltage is reflected? (d) What fraction of the current is reflected? (e) What fraction of the power is reflected?
