Question

In: Physics

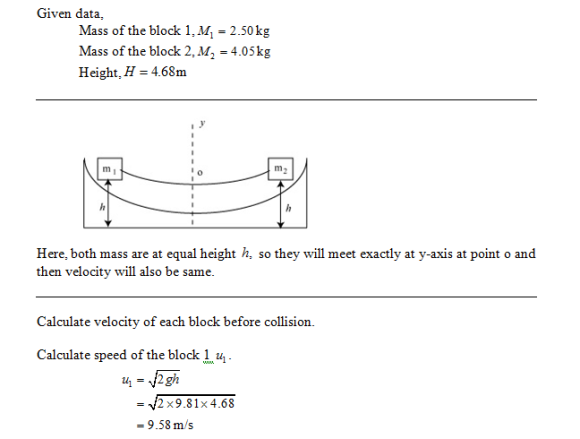

As shown in the figure below, two blocks (m1 and m2) are each released from rest...

As shown in the figure below, two blocks (m1 and m2) are each released from rest at a height of

h = 4.68 m

on a frictionless track and when they meet on the horizontal section of the track they undergo an elastic collision. If

m1 = 2.50 kg

and

m2 = 4.05 kg,

determine the maximum heights to which they rise after the collision. Use the coordinate system shown in the figure.

y1f

=
m

y2f

=
m.

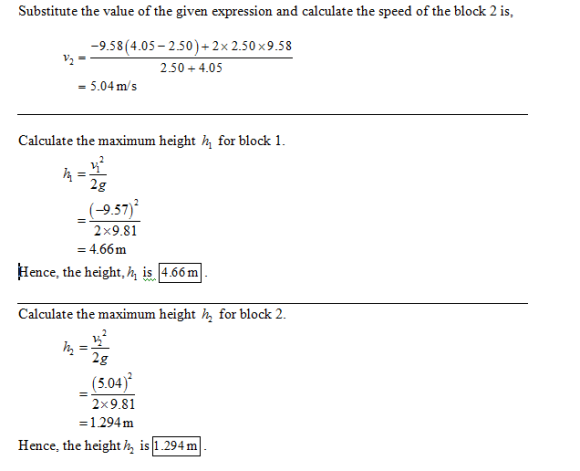

Solutions

Expert Solution
