A 12-bit Hamming code word containing 8 data bits and 4 parity bits is read from...

A 12-bit Hamming code word containing 8 data bits and 4 parity bits is read from memory. What was the original 12-bit word written into memory, if the 12-bit word read were the following?

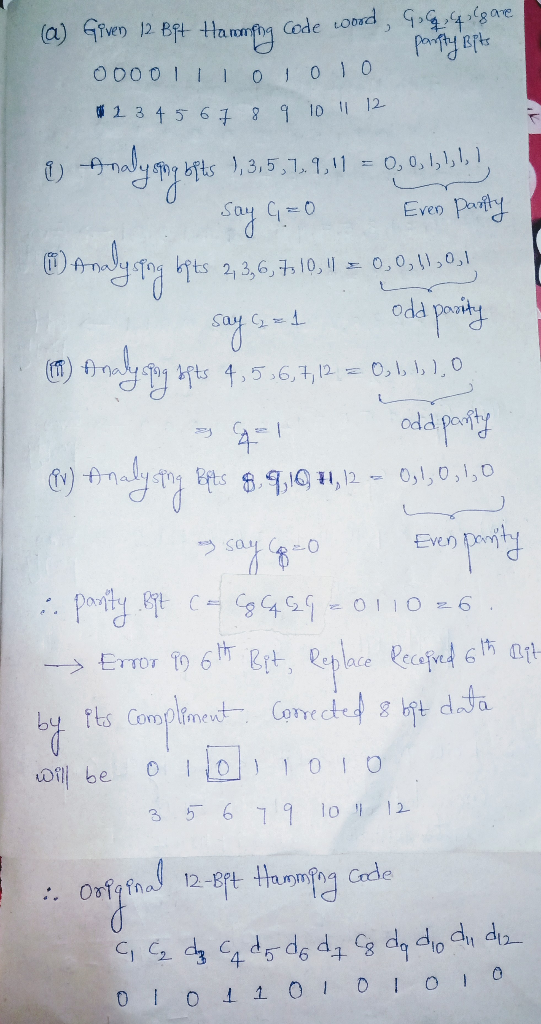

(i) 000011101010

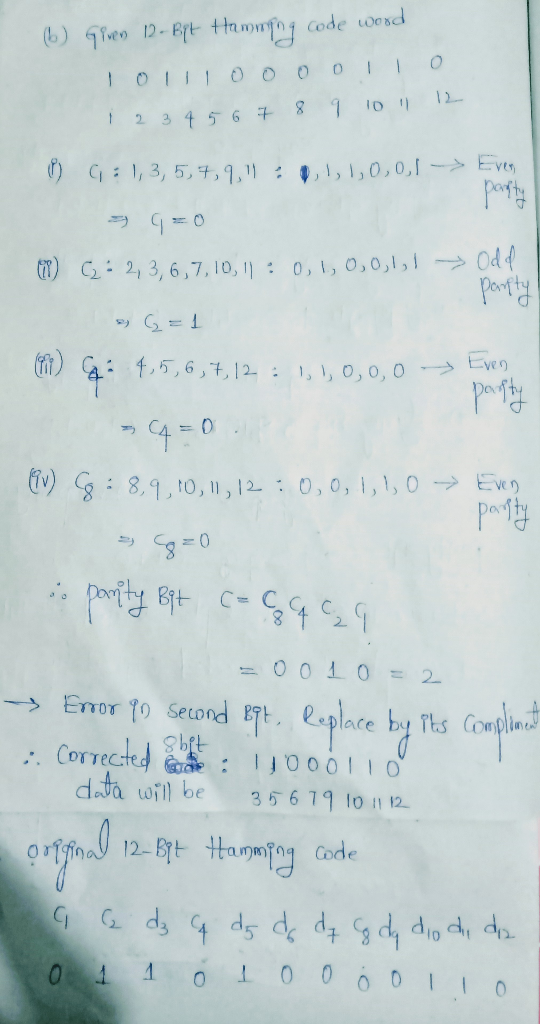

(ii) 101110000110

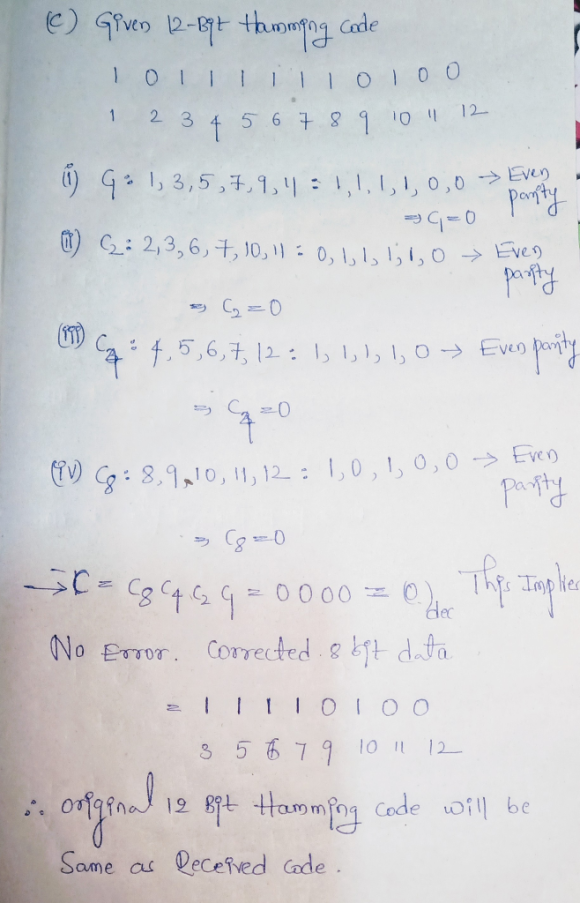

(iii) 101111110100

Solutions

Expert Solution

Manojponduru answered 1 month ago
