Question

In: Computer Science

In-class exercise 2 Objective and Overview: The exercises in this document is on Lecture 3 Exercise...

In-class exercise 2

Objective and Overview:

The exercises in this document is on Lecture 3

Exercise 1:

(The Account class) Design a class named Account that contains:

1. A private int data field named id for the account (default 0).

2. A private double data field named balance for the account (default 0).

3. A private static double data field named annualInterestRate that stores the current interest rate (default 0). Assume that all accounts have the same interest rate.

4. A private static int data field named transactions, that stores the number of transactions for all accounts.

5. A no-arg (default) constructor that creates a default account.

6. An initialization constructor that creates an account with the specified id and initial balance.

7. A copy constructor that creates an Account and initializes its attribute to the values of another account.

8. The accessor and mutator methods for id, balance, annualInterestRate, and transactions. 9. A method named getMonthlyInterestRate() that returns the monthly interest rate.

10. A method named getMonthlyInterest() that returns the monthly interest.

11. A method named withdraw that withdraws a specified amount from the account.

12. A method named deposit that deposits a specified amount to the account.

13. a toString() method to display all account details and the number of transactions.

Draw the UML diagram for the class then implement the class.

(Hint: The method getMonthlyInterest() is to return monthly interest, not the interest rate. Monthly interest is balance * monthlyInterestRate.

monthlyInterestRate is annualInterestRate / 12.

Note annualInterestRate is a percentage, for example 4.5%. You need to divide it by 100.)

Solutions

Expert Solution

Account.java

public class Account {
private int id;
private double balance;
private static double annualInterestRate;
private static int nTransactions;

public Account()
{
this.id = 0;
this.balance = 0;
Account.annualInterestRate = 0;
}

public Account(int id, double balance, double annualInterestRate)
{
this.id = id;
this.balance = balance;
Account.annualInterestRate = annualInterestRate;
}

public int getId() {
return id;
}

public void setId(int id) {
this.id = id;
}

public double getBalance() {
return balance;
}

public void setBalance(double balance) {
this.balance = balance;
}

public double getAnnualInterestRate() {
return annualInterestRate;
}

public void setAnnualInterestRate(double annualInterestRate) {
Account.annualInterestRate = annualInterestRate;
}

public static int getnTransactions() {
return nTransactions;
}

public static void setnTransactions(int nTransactions) {
Account.nTransactions = nTransactions;
}

public Account(Account account)
{
this.id = account.getId();
this.balance = account.getBalance();
Account.annualInterestRate = account.getAnnualInterestRate();
}

public double getMonthlyInterest()
{
return((getAnnualInterestRate() / 1200) * this.balance);
}

public void deposit(double amount)
{
if(amount > 0)
{
setBalance(getBalance() + amount);
nTransactions++;
}
}

public void withdraw(double amount)
{
if(amount > getBalance() || (getBalance() - amount) < 0)
System.out.println("Transaction failed due to insuffiecient funds!");
else
{
setBalance(getBalance() - amount);
nTransactions++;
}
}

@Override
public String toString()
{
return("ID: " + getId() + "\n"
+ "Interest Rate: " + getAnnualInterestRate() + "%\n"
+ "Balance: $" + String.format("%.2f", getBalance()) + "\n"
+ "Monthly Interest: $" + String.format("%.2f", getMonthlyInterest()) + "\n"
+ "Number of transactions so far: " + nTransactions);
}
}

AccountTest.java (Driver class)

public class AccountTest {

public static void main(String[] args)
{
Account acc = new Account(389, 5000, 4.5);

System.out.println("A new account created with Id: " + acc.getId() + "...\n" + acc.toString());

System.out.println("\nDeposited $100...");
acc.deposit(100);
System.out.println(acc.toString());

System.out.println("\nWithdraw $6100...");
acc.withdraw(6100);
System.out.println(acc.toString());

System.out.println("\nWithdraw $4100...");
acc.withdraw(4100);
System.out.println(acc.toString());

System.out.println("\nDeposited $1500...");
acc.deposit(1500);
System.out.println(acc.toString());
}
}

********************************************************************* SCREENSHOT ******************************************************

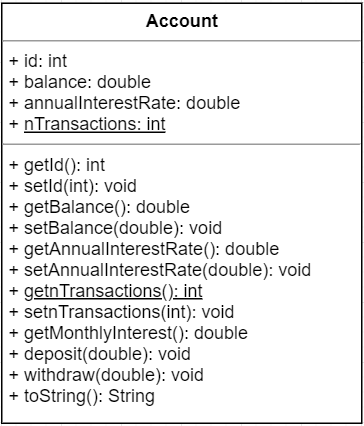

UML Diagram:
