Question

In: Computer Science

Please explain answer and show steps If your current Network ID is 223.40.35.0 with the default...

Please explain answer and show steps

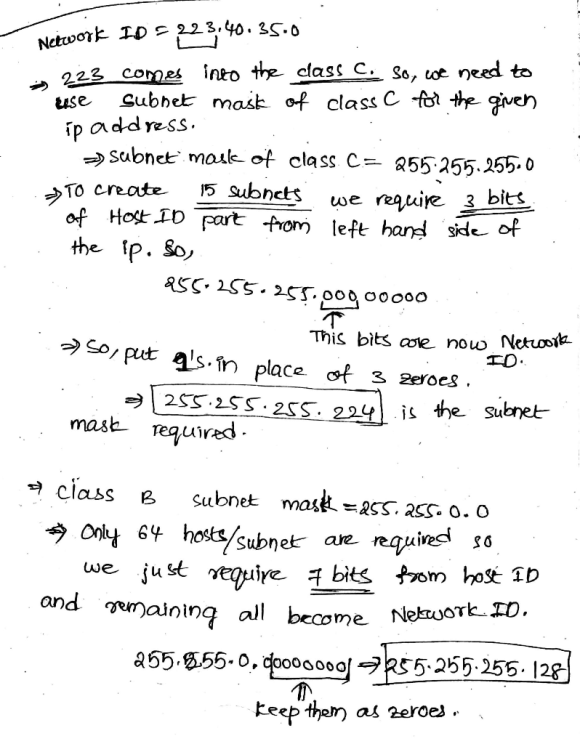

If your current Network ID is 223.40.35.0 with the default subnet mask and you need to have 15 subnets and maximizing the number of valid node IP addresses what would be the most appropriate subnet mask?

  1. 255.255.224.0
  2. 255.255.255.224
  3. 255.255.240.0
  4. 255.255.255.240

Given the following IP address from the Class B address range using the default subnet mask: 100.110.0.0. Your network plan requires no more than 64 hosts on a subnet. When you configure the IP address in Cisco IOS software, which value should you use as the subnet mask?

  1. 255.255.0.0
  2. 255.255.128.0
  3. 255.255.255.128
  4. 255.255.255.252

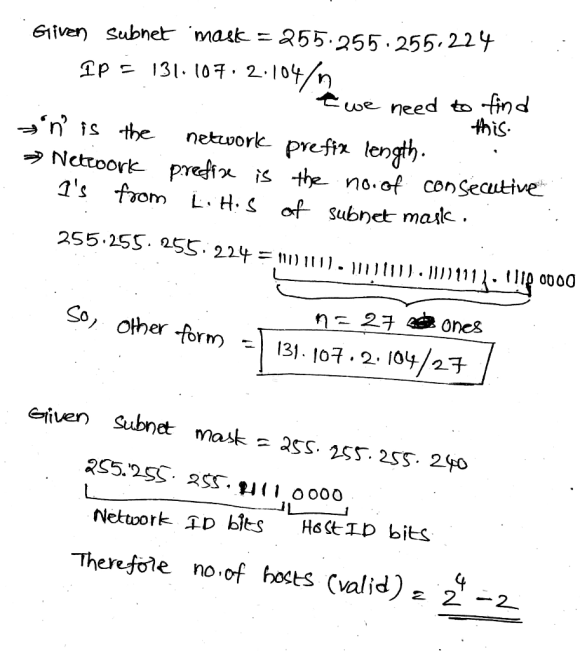

Given an IP address of 131.107.2.104 and a subnet mask of 255.255.255.224, which of the following is the other form of representing this address?

  1. 131.107.2.104/26
  2. 131.107.2.104/24
  3. 131.107.2.104/25
  4. 131.107.2.104/27
  5. 131.107.2.104/19



Identify how many valid host addresses can you have on 192.168.27.32 network with a subnet mask of 255.255.255.240.

  1. (2^4) - 2
  2. (2^3) – 2
  3. (2^2) - 2
  4. (2^1) – 2

Solutions

Expert Solution

Note: please give upvote if you understand
