Question

NEED TO DEBUG

// This pseudocode should create a report that contains an
// apartment complex rental agent's commission. The
// program accepts the ID number and name of the agent who
// rented the apartment, and the number of bedrooms in the
// apartment. The commission is $100 for renting a three-bedroom
// apartment, $75 for renting a two-bedroom apartment, $55 for
// renting a one-bedroom apartment, and $30 for renting a studio
// (zero-bedroom) apartment. Output is the salesperson’s
// name and ID number and the commission earned on the rental.
start
Declarations
num salesPersonID
string salesPersonName
num numBedrooms
num COMM_3 = $100.00
num COMM_2 = $75.00
num COMM_1 = $55.00
num COMM_STUDIO = $30.00
num QUIT = 9999
getReady()
while salesPersonID <> QUIT
detailLoop()
endwhile
finish()
stop

getReady()
output "Enter salesperson ID or ", QUIT, " to quit "
output salesperson_ID
return

detailLoop()
output "Enter name "
input salesPersonName
output "Enter number of bedrooms rented "
input numBedrooms
if numBedrooms > 3 then
commissionEarned = COMM_3
else
if numBedrooms < 2 then
commissionEarned = COMM_2
else
if numBedrooms > 1 then
commission = COMM_1
else
commission = COMM_4
endif
endif
endif
output salesPersonID, salesPersName, commissionEarned
output "Enter salesperson ID or ", QUIT, " to quit "
input salesPersonID
return

finish()
output "End of report"
return

Answer 1

Pseudo code :

start

num QUIT = 9999;

   num salesPersonID
   string salesPersonName
   num numBedrooms
   const num COMM_3 = 100
   const num COMM_2 = 75
   const num COMM_1 = 55
   const num COMM_STUDIO = 30
   num commissionEarned=0

   Call getReady() read return value in salesPersonID

   while salesPersonID != QUIT Then
       output "Enter name ";
       cin>> salesPersonName;
       output "Enter number of bedrooms rented ";
       cin>> numBedrooms;
       if (numBedrooms == 3 ) Then
           commissionEarned = COMM_3;
       else if (numBedrooms == 2 ) Then
           commissionEarned = COMM_2;
       else if( numBedrooms == 1 ) Then
           commissionEarned = COMM_1;
       else
           commissionEarned = COMM_STUDIO;
       end if

       output salesPersonID, salesPersonName, commissionEarned

       Call getReady() read return value in salesPersonID
   End while loop

stop

getReady()
   num salesperson_ID
   output "Enter salesperson ID or "<< QUIT<< " to quit "
   input salesperson_ID
return salesperson_ID

------------------------------------------------------------------------------------------------------

C++ code of pseudocode:

//main.cpp
#include<iostream>
#include<string>
#include<iomanip>
using namespace std;
int getReady();
int QUIT = 9999;
int main()
{
   int salesPersonID;
   string salesPersonName;
   int numBedrooms;
   const int COMM_3 = 100;
   const int COMM_2 = 75;
   const int COMM_1 = 55;
   const int COMM_STUDIO = 30;
   int commissionEarned=0;

   salesPersonID=getReady();

   while (salesPersonID != QUIT)
   {
       cout<< "Enter name ";
       cin>> salesPersonName;
       cout<< "Enter number of bedrooms rented ";
       cin>> numBedrooms;
       if (numBedrooms == 3 )
           commissionEarned = COMM_3;
       else if (numBedrooms == 2 )
           commissionEarned = COMM_2;
       else if( numBedrooms == 1 )
           commissionEarned = COMM_1;
       else
           commissionEarned = COMM_STUDIO;

       cout<<left<<setw(10)<<"Person#ID"
               <<setw(10)<<"Name"
               <<setw(10)<<"Commission"<<endl;
       cout<<left<<setw(10)<<salesPersonID
               <<setw(10)<<salesPersonName
               <<setw(10)<<commissionEarned<<endl;

           salesPersonID=getReady();
   }

   system("pause");
   return 0;
}
/*Function that prompt for sales person id and returns
the sales person id value.*/
int getReady()
{
   int salesperson_ID;
   cout<< "Enter salesperson ID or "<< QUIT<< " to quit ";
   cin>> salesperson_ID;
   return salesperson_ID;
}

------------------------------------------------------------------------------------------------------

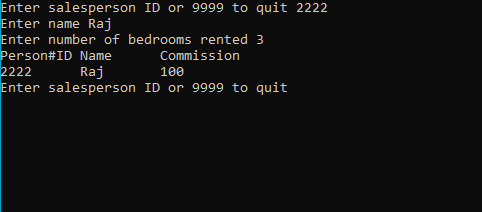

Sample Output:
