Magnetic field strength decreases as you get farther from the poles. Does the flux through the...

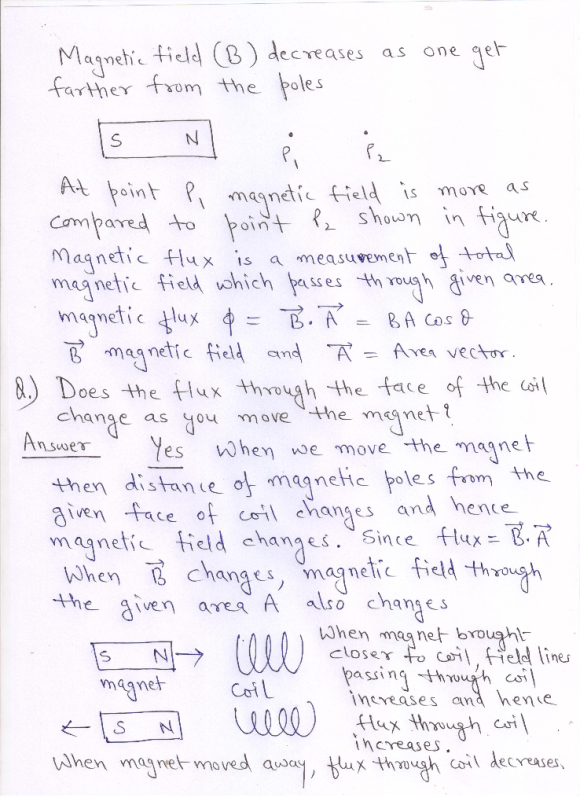

Magnetic field strength decreases as you get farther from the poles. Does the flux through the face of the coil change as you move the magnet? Explain your reasoning.

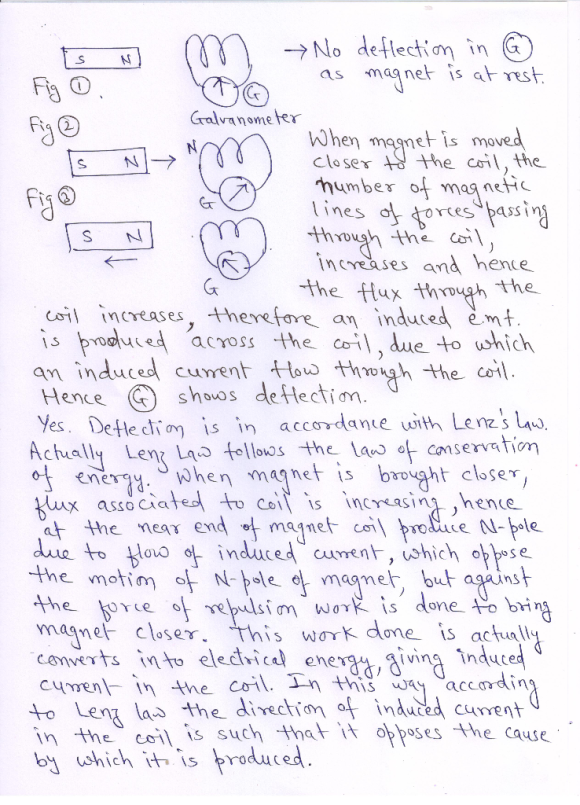

Why does the needle of the Galvanometer deflect when you bring a magnet in close to the coil? Is the deflection in accordance with Lenz's Law? Justify your answer in terms of Lenz's Law and your answer above.

Solutions

Expert Solution
