Question

Write a Visual C# project that will allow the user an option to choose from four different countries. When a country is chosen, the program will display the country flag and information that the user wishes to see. The name of the country selected will be displayed in a label under the country's flag image. The user may also choose to display or hide the form's title, the country name, and the name of the programmer/developer.   Check boxes will be used for the display/hide choices. Radio buttons will be used for the country selection.

You may choose the countries to display and their corresponding flags to display. In the Canvas module, you will see a zip file of flag images or you may choose your own.

Note: see the Note from the previous projects. These are now considered Basic Expectations and are expected in each program you develop and submit for grading.

Additionally, include keyboard access keys for all option buttons, check boxes, and command buttons. (add to Basic Expectations)
Be sure the tab order is set in the most logical order for the user.   (add to Basic Expectations)

Answer 1

Dear Student ,

As per the requirement submitted above , kindly find the below solution.

Here a new Windows Forms Application in C# is created using Visual Studio 2017 with name "CountryApplication".This application contains a form with name "Form1.cs".Below are the files associated with form1.

Form1.cs

//namespace
using System;
using System.Windows.Forms;
//application namespace
namespace CountryApplication
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
//When Indian Flag radio button checked , display indian flag and information
private void rbtIndia_CheckedChanged(object sender, EventArgs e)
{
pbCountryFlag.Image =System.Drawing.Image.FromFile(Application.StartupPath +"\\Flags\\India.jpg");//set flag
lblName.Text="India";//set country name
}
//When Australia Flag radio button checked , display Australia flag and information
private void rbtAustralia_CheckedChanged(object sender, EventArgs e)
{
pbCountryFlag.Image = System.Drawing.Image.FromFile(Application.StartupPath + "\\Flags\\Australia.jpg");//set flag
lblName.Text = "Australia";//set country name
}
//When Japan Flag radio button checked , display Japan flag and information
private void rbtJapan_CheckedChanged(object sender, EventArgs e)
{
pbCountryFlag.Image = System.Drawing.Image.FromFile(Application.StartupPath + "\\Flags\\Japan.jpg");//set flag
lblName.Text = "Japan";//set country name
}
//When Germany Flag radio button checked , display Germany flag and information
private void rbtGermany_CheckedChanged(object sender, EventArgs e)
{
pbCountryFlag.Image = System.Drawing.Image.FromFile(Application.StartupPath + "\\Flags\\german.jpg");//set flag
lblName.Text = "Germany";//set country name
}
//checkbox to hide and display choices
private void chkChoices_CheckedChanged(object sender, EventArgs e)
{
if(chkChoices.Checked==true)
{
this.Text = "";//do not display title
lblName.Visible = false;//hide the country name
lblProgrammer.Visible = false;//hide pogrammer name
}
else
{
this.Text = "Country Selection";// display title
lblName.Visible = true;//show the country name
lblProgrammer.Visible = true;//show pogrammer name
}

}
}
}

======================================================

Output : Run application using F5 and will get the screen as shown below

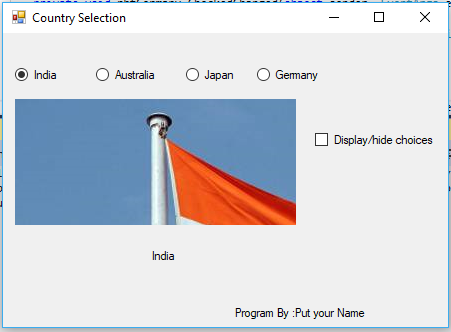

Screen 1 :

Screen 2:Screen when choices are hidden

NOTE : PLEASE FEEL FREE TO PROVIDE FEEDBACK ABOUT THE SOLUTION.
