In: Computer Science
I cant get this to compile in java idk if im making the wrong file or what but this si the code I was given I would like stsep by step java instuctions and which compiler to use to execute this code
import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.Dimension;
import java.awt.Font;
import java.awt.FontMetrics;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.RenderingHints;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import java.util.Random;
import javax.swing.JFrame;
import javax.swing.JPanel;
import javax.swing.SwingUtilities;
// We are going to create a Game of 15 Puzzle with Java 8 and
Swing
// If you have some questions, feel free to ue comments ;)
public class GameOfFifteen extends JPanel { // our grid will be
drawn in a dedicated Panel
// Size of our Game of Fifteen instance
private int size;
// Number of tiles
private int nbTiles;
// Grid UI Dimension
private int dimension;
// Foreground Color
private static final Color FOREGROUND_COLOR = new Color(239, 83,
80); // we use arbitrary color
// Random object to shuffle tiles
private static final Random RANDOM = new Random();
// Storing the tiles in a 1D Array of integers
private int[] tiles;
// Size of tile on UI
private int tileSize;
// Position of the blank tile
private int blankPos;
// Margin for the grid on the frame
private int margin;
// Grid UI Size
private int gridSize;
private boolean gameOver; // true if game over, false
otherwise
public GameOfFifteen(int size, int dim, int mar) {
this.size = size;
dimension = dim;
margin = mar;
// init tiles
nbTiles = size * size - 1; // -1 because we don't count blank
tile
tiles = new int[size * size];
// calculate grid size and tile size
gridSize = (dim - 2 * margin);
tileSize = gridSize / size;
setPreferredSize(new Dimension(dimension, dimension +
margin));
setBackground(Color.WHITE);
setForeground(FOREGROUND_COLOR);
setFont(new Font("SansSerif", Font.BOLD, 60));
gameOver = true;
addMouseListener(new MouseAdapter() {
@Override
public void mousePressed(MouseEvent e) {
// used to let users to interact on the grid by clicking
// it's time to implement interaction with users to move tiles to
solve the game !
if (gameOver) {
newGame();
} else {
// get position of the click
int ex = e.getX() - margin;
int ey = e.getY() - margin;
// click in the grid ?
if (ex < 0 || ex > gridSize || ey < 0 || ey >
gridSize)
return;
// get position in the grid
int c1 = ex / tileSize;
int r1 = ey / tileSize;
// get position of the blank cell
int c2 = blankPos % size;
int r2 = blankPos / size;
// we convert in the 1D coord
int clickPos = r1 * size + c1;
int dir = 0;
// we search direction for multiple tile moves at once
if (c1 == c2 && Math.abs(r1 - r2) > 0)
dir = (r1 - r2) > 0 ? size : -size;
else if (r1 == r2 && Math.abs(c1 - c2) > 0)
dir = (c1 - c2) > 0 ? 1 : -1;
if (dir != 0) {
// we move tiles in the direction
do {
int newBlankPos = blankPos + dir;
tiles[blankPos] = tiles[newBlankPos];
blankPos = newBlankPos;
} while(blankPos != clickPos);
tiles[blankPos] = 0;
}
// we check if game is solved
gameOver = isSolved();
}
// we repaint panel
repaint();
}
});
newGame();
}
private void newGame() {
do {
reset(); // reset in intial state
shuffle(); // shuffle
} while(!isSolvable()); // make it until grid be solvable
gameOver = false;
}
private void reset() {
for (int i = 0; i < tiles.length; i++) {
tiles[i] = (i + 1) % tiles.length;
}
// we set blank cell at the last
blankPos = tiles.length - 1;
}
private void shuffle() {
// don't include the blank tile in the shuffle, leave in the solved
position
int n = nbTiles;
while (n > 1) {
int r = RANDOM.nextInt(n--);
int tmp = tiles[r];
tiles[r] = tiles[n];
tiles[n] = tmp;
}
}
// Only half permutations o the puzzle are solvable
// Whenever a tile is preceded by a tile with higher value it
counts
// as an inversion. In our case, with the blank tile in the solved
position,
// the number of inversions must be even for the puzzle to be
solvable
private boolean isSolvable() {
int countInversions = 0;
for (int i = 0; i < nbTiles; i++) {
for (int j = 0; j < i; j++) {
if (tiles[j] > tiles[i])
countInversions++;
}
}
return countInversions % 2 == 0;
}
private boolean isSolved() {
if (tiles[tiles.length - 1] != 0) // if blank tile is not in the
solved position ==> not solved
return false;
for (int i = nbTiles - 1; i >= 0; i--) {
if (tiles[i] != i + 1)
return false;
}
return true;
}
private void drawGrid(Graphics2D g) {
for (int i = 0; i < tiles.length; i++) {
// we convert 1D coords to 2D coords given the size of the 2D
Array
int r = i / size;
int c = i % size;
// we convert in coords on the UI
int x = margin + c * tileSize;
int y = margin + r * tileSize;
// check special case for blank tile
if(tiles[i] == 0) {
if (gameOver) {
g.setColor(FOREGROUND_COLOR);
drawCenteredString(g, "\u2713", x, y);
}
continue;
}
// for other tiles
g.setColor(getForeground());
g.fillRoundRect(x, y, tileSize, tileSize, 25, 25);
g.setColor(Color.BLACK);
g.drawRoundRect(x, y, tileSize, tileSize, 25, 25);
g.setColor(Color.WHITE);
drawCenteredString(g, String.valueOf(tiles[i]), x , y);
}
}
private void drawStartMessage(Graphics2D g) {
if (gameOver) {
g.setFont(getFont().deriveFont(Font.BOLD, 18));
g.setColor(FOREGROUND_COLOR);
String s = "Click to start new game";
g.drawString(s, (getWidth() - g.getFontMetrics().stringWidth(s)) /
2,
getHeight() - margin);
}
}
private void drawCenteredString(Graphics2D g, String s, int x, int
y) {
// center string s for the given tile (x,y)
FontMetrics fm = g.getFontMetrics();
int asc = fm.getAscent();
int desc = fm.getDescent();
g.drawString(s, x + (tileSize - fm.stringWidth(s)) / 2,
y + (asc + (tileSize - (asc + desc)) / 2));
}
@Override
protected void paintComponent(Graphics g) {
super.paintComponent(g);
Graphics2D g2D = (Graphics2D) g;
g2D.setRenderingHint(RenderingHints.KEY_ANTIALIASING,
RenderingHints.VALUE_ANTIALIAS_ON);
drawGrid(g2D);
drawStartMessage(g2D);
}
public static void main(String[] args) {
SwingUtilities.invokeLater(() -> {
JFrame frame = new JFrame();
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
frame.setTitle("Game of Fifteen");
frame.setResizable(false);
frame.add(new GameOfFifteen(4, 550, 30),
BorderLayout.CENTER);
frame.pack();
// center on the screen
frame.setLocationRelativeTo(null);
frame.setVisible(true);
});
}
}
/*
//Note:--> The > JDK 1.8 does not support the command prompt. So you need to use any IDE like Eclipse, IntelliJ idea etc.
or install the old version of jdk like JDK1.8
and follow the steps
This code is running correctly. So there is no problem with code.
If you haven't install JDK
First of all, install it (Search JDK on search engine)
after the installation gets complete.
if you are using command prompt to run this program
follow the following steps

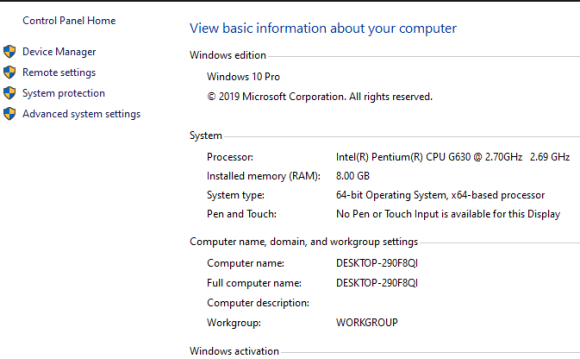

(1) go to Control Panel
(2) Select the System icon
(3)
Select the Advance system settings
(4)

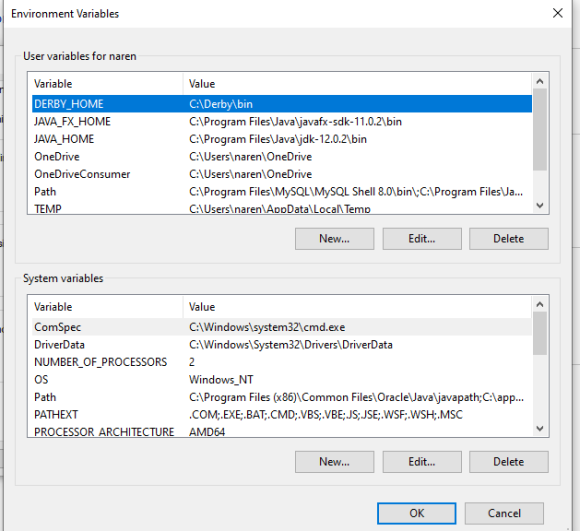

Now select the environment variables
(5)

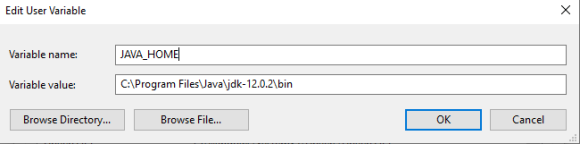

Click New in the user variables section.
(6)
the variable value is the path of the directory where your JDK is installed.
By default location is given above in pic.
(7) and press OK.

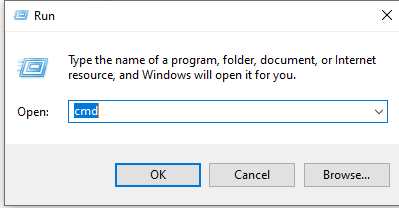

To check it, Go to the command prompt (type cmd in the search box ) or you can use the run command (Win key +R)

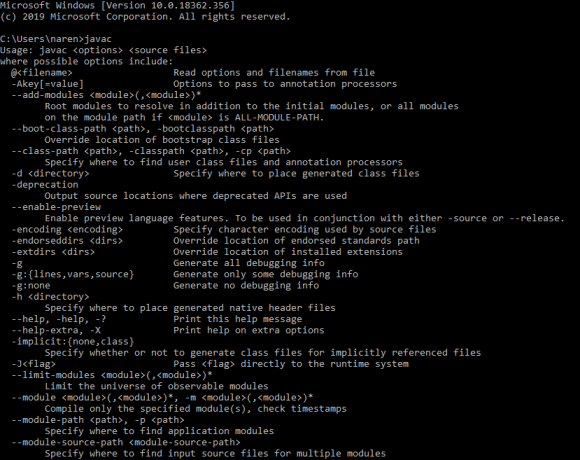

Type javac in cmd .
Now go to the file location where you saved your GameOfFifteen.java file. using CD command
as I have saved it in E:\
//Now use the following commands to compile and run your program
*/

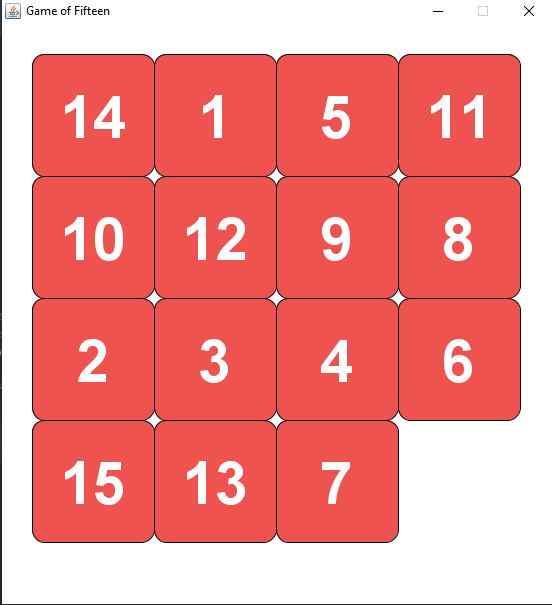

//Output
//If you need any help regarding this solution ............ please leave a comment ........ thanks
