A polarized light wave passes through a polarizing filter which reduced the intensity of the light...

A polarized light wave passes through a polarizing filter which reduced the intensity of the light to 25% of the incident intensity. What would the intensity become if the incident light is unpolarized?

PLEASE EXPLAIN :))

Solutions

Expert Solution

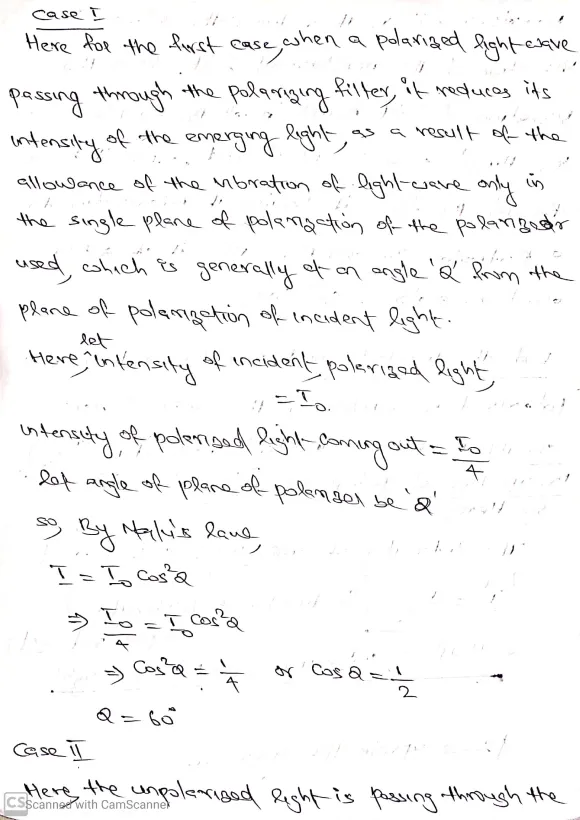

Here,when the polarized light incident on a polarizer filter,its intensity of the emerging plane polarized light will reduce as per the Malu's law,and be calculated.But if the incident light on polarizer filter is unpolarized light,it will reduce its intensity to half for the emerging polarized light irrespective of the passage angle of the polarizer filter.

genius_generous answered 1 year ago

Next > < Previous

Related Solutions

Polarized light passes through a polarizing filter which has an axis of transmission oriented at θ1...

Polarized light passes through a polarizing filter which has an axis of transmission oriented at θ1 = 39.4 degrees from vertical. The intensity of the emerging light is measured to be I1 = 700 W/m2. The polarizer is then rotated so that its axis of transmission is θ2 = 70.9 degrees from vertical, and the emerging light is now measured to be 290 W/m . Find the intensity of the incident polarized light and its orientation with respect to vertical....

A 180 mW vertically polarized laser beam passes through a polarizing filter whose axis is 36...

A 180 mW vertically polarized laser beam passes through a polarizing filter whose axis is 36 ∘ from horizontal. What is the power of the laser beam as it emerges from the filter?

A 225 mW horizontally polarized laser beam passes through a polarizing filter whose axis is 23°...

A 225 mW horizontally polarized laser beam passes through a polarizing filter whose axis is 23° from vertical. What is the power of the laser beam as it emerges from the filter? answer units must be in mW

Light of original intensity I0 passes through two ideal polarizing filters having their polarizing axes oriented...

Light of original intensity I0 passes through two ideal polarizing filters having their polarizing axes oriented as shown in the figure (Figure 1). You want to adjust the angle ϕ so that the intensity at point P is equal to I0/8.00. A.)If the original light is unpolarized, what should ϕbe? B.)If the original light is linearly polarized in the same direction as the polarizing axis of the first polarizer the light reaches, what should ϕ be?

A horizontal beam of vertically polarized light of intensity 42.0 W/m2 is sent through two polarizing...

A horizontal beam of vertically polarized light of intensity 42.0 W/m2 is sent through two polarizing sheets. The polarizing direction of the first is at 26.0° to the vertical, and that of the second is horizontal. What is the intensity of the light transmitted by the pair of sheets?

A horizontal beam of vertically polarized light of intensity 33.0 W/m2 is sent through two polarizing...

A horizontal beam of vertically polarized light of intensity 33.0 W/m2 is sent through two polarizing sheets. The polarizing direction of the first is at 37.0° to the vertical, and that of the second is horizontal. What is the intensity of the light transmitted by the pair of sheets? W/m2

Vertically polarized light that has an intensity of 450 W/m2 isincident on two polarizing filters....

Vertically polarized light that has an intensity of 450 W/m2 is incident on two polarizing filters. The first filter is oriented 30° from the vertical while the second filter is oriented 75° from the vertical. Predict the intensity and polarization of the light that emerges from the second filter. (Assume both angles are measured in the same direction with respect to the vertical.) _________W/m2 Please help! Thanks!

How does a polarizing filter work? After passing through a polarizing filter that is aligned vertically,...

How does a polarizing filter work? After passing through a polarizing filter that is aligned vertically, how are the electric and magnetic fields of the EM waves aligned? If you wished to block the light completely, how would you align a second polarizing filter that was placed directly behind the first?

Vertically polarized light passes through two polarizers, the first at 66° to the vertical space and...

Vertically polarized light passes through two polarizers, the first at 66° to the vertical space and the second at 85° to the vertical. What fraction of the light gets through? %

A beam of light is a mixture of unpolarized light with intensity Ia and linearly polarized...

A beam of light is a mixture of unpolarized light with intensity Ia and linearly polarized light with intensity Ib. The polarization direction for the polarized light is vertical. When this mixed beam of light is passed through a polarizer that is vertical, the transmitted intensity is 16.8 W/m2; when the polarizer is at an angle of 55.0° with the vertical, the transmitted intensity is 8.68 W/m2. (a) Is Ia greater than, less than, or equal to Ib? Explain. (b)...
