3. Consider the following problem related to Chapter 12 of the text. City utility people have observed over time that as temperatures warm up, water consumption in the city increases. Examine the following data gathered on various days over a yearly period. For each of the eight days, the high temperature and the water usage in millions of gallons is given.
Temperature Water Use
(degrees Fahrenheit) (millions of gallons)
103 219
39 56
77 107
78 129
50 68
96 184
90 150
75 112
Construct a scatter plot of the data, then add a trend line. Directions for scatter plot and trend line: To get a scatter plot of the data in Excel, click and drag over the data, go to the Insert Tab and create a Scatter Plot of the data. To place the regression line on the scatter plot, right hand click on one of the points on the graph. A command, add trendline, should appear. This is your regression line. Now, using Data Analysis, conduct a regression analysis of these data to develop a model for predicting Water Use by Temperature. Directions in Excel: Use the Data tab, select Data Analysis and then select Regression. In the regression dialog box, enter the location of the y variable and of the x variable. Check the “labels” box since we have titled each column. Check the box “residuals” at the bottom of the dialog box. Click OK and the regression output should appear including the residuals.

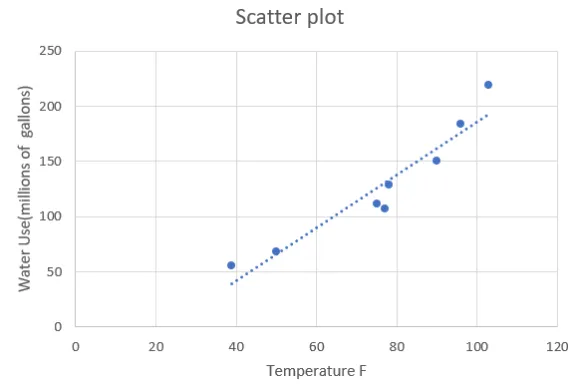

a) Scatterplot with trend line:
b) Excel output:
Excel output with residual
SUMMARY OUTPUT | ||||||||
Regression Statistics | ||||||||
Multiple R | 0.954053 | |||||||
R Square | 0.910216 | |||||||
Adjusted R Square | 0.895252 | |||||||
Standard Error | 17.88776 | |||||||
Observations | 8 | |||||||
ANOVA | ||||||||
df | SS | MS | F | Significance F | ||||
Regression | 1 | 19463.04 | 19463.04 | 60.82736 | 0.000234 | |||
Residual | 6 | 1919.831 | 319.9719 | |||||
Total | 7 | 21382.88 | ||||||
Coefficients | Standard Error | t Stat | P-value | Lower 95% | Upper 95% | Lower 95.0% | Upper 95.0% | |
Intercept | -54.356 | 24.23709 | -2.24268 | 0.066103 | -113.662 | 4.949978 | -113.662 | 4.949978 |
Temperature | 2.401066 | 0.307861 | 7.79919 | 0.000234 | 1.647758 | 3.154375 | 1.647758 | 3.154375 |
RESIDUAL OUTPUT | ||||||||
Observation | Predicted Water use | Residuals | ||||||
1 | 192.9538 | 26.04621 | ||||||
2 | 39.28555 | 16.71445 | ||||||
3 | 130.5261 | -23.5261 | ||||||
4 | 132.9271 | -3.92713 | ||||||
5 | 65.69727 | 2.302725 | ||||||
6 | 176.1463 | 7.853673 | ||||||
7 | 161.7399 | -11.7399 | ||||||
8 | 125.7239 | -13.7239 |
Estimated regression equation:
Water use^ = 2.4011*Temp + (-54.356)
