Consider the brass alloy the stress-strain behavior of which is shown in the Animated Figure 6.12....

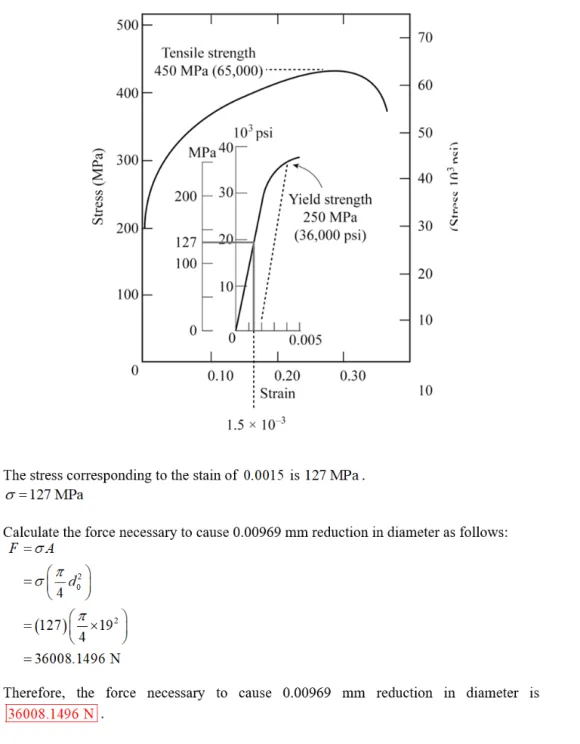

Consider the brass alloy the stress-strain behavior of which is shown in the Animated Figure 6.12. A cylindrical specimen of this alloy 19 mm in diameter and 177 mm long is to be pulled in tension. Calculate the force necessary to cause a 0.00969 mm reduction in diameter. Assume a value of 0.34 for Poisson's ratio.

Solutions

Expert Solution

samet mamat answered 1 year ago

Next > < Previous
