Question
In: Physics
A tank circuit in a radio transmitter is a series RCL circuit connected to an antenna....
A tank circuit in a radio transmitter is a series RCL circuit connected to an antenna. The antenna broadcasts radio signals at the resonant frequency of the tank circuit. Suppose that a certain tank circuit in a shortwave radio transmitter has a fixed capacitance of 1.2 x 10-11 F and a variable inductance. If the antenna is intended to broadcast radio signals ranging in frequency from 4.6 MHz to 8.4 MHz, find the (a) minimum and (b) maximum inductance of the tank circuit
Solutions
Expert Solution

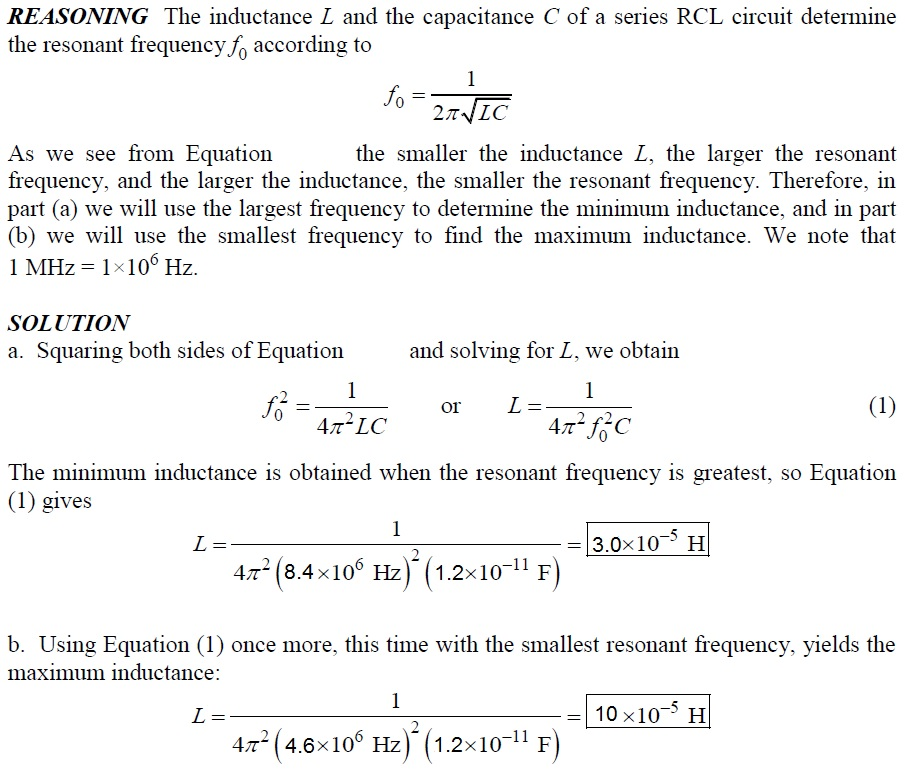

I hope you understood the problem and got your answers, If yes rate me!! or else comment for a better solutions
genius_generous answered 1 hour agoRelated Solutions
