An ideal spring is lying horizontally on a frictionless surface. One end of the spring is...

An ideal spring is lying horizontally on a frictionless surface. One end of the spring is attached to a wall. The other end is attached to a moveable block that has a mass of 5 kg. The block is pulled so that the spring stretches from its equilibrium position by 0.65 m. Then the block is released (from rest), and as a result the system oscillates with a frequency of 0.40 Hz (that's 0.40 rev/sec) Find:

Show all your steps

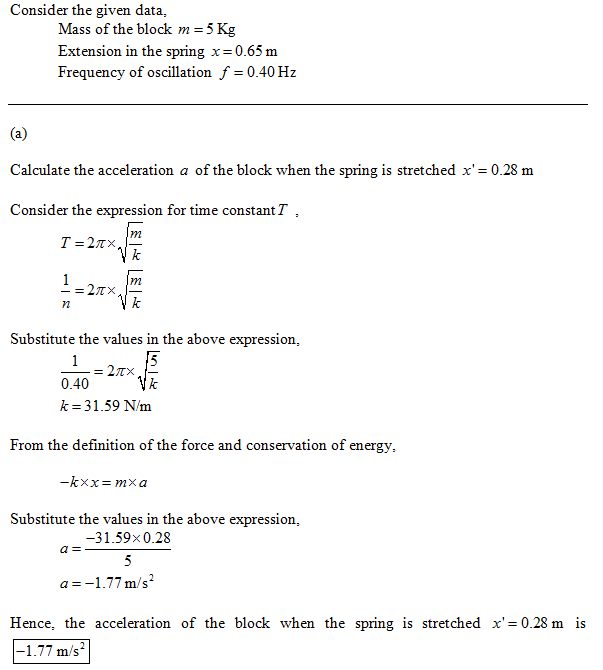

a) The acceleratiuon of the block when the spring is stretched by 0.28 m.

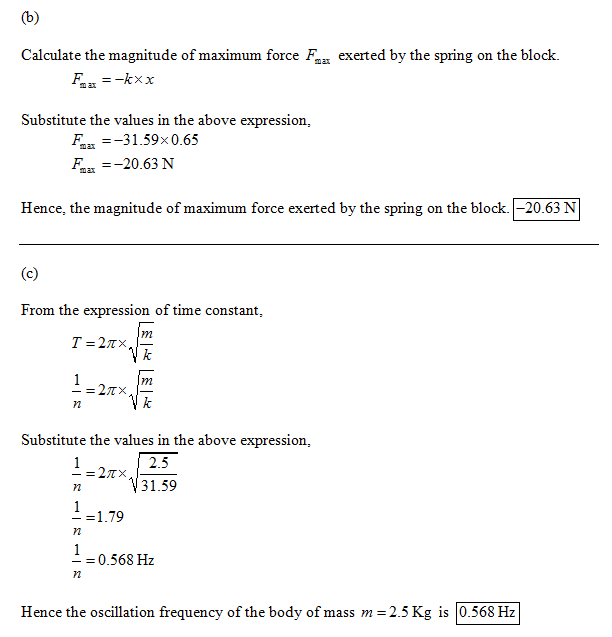

b) the maximum force magnitude exerted by the spring on the block.

c)the oscillation frequency of a 2.5 kg blcok under the same circumstances (i.e. with the same spring and initial displacement).

Expert Solution

genius_generous answered 4 hours ago

A spring of spring constant k sits on a frictionless horizontal surface, one end of the...

A spring of spring constant k sits on a frictionless horizontal surface, one end of the spring is attached to a wall, the other end to a block of mass M, also resting on the frictionless surface. The system executes simple harmonic motion such that at a given point the mass is -1/6 of the amplitude moving away from equilibrium, and 0.5 seconds later it has 1/7 of the maximum speeds, moving towards equilibrium, having passed equilibrium once. 1) How...

A mass resting on a horizontal, frictionless surface is attached to one end of a spring;...

A mass resting on a horizontal, frictionless surface is attached to one end of a spring; the other end is fixed to a wall. It takes 3.7 J of work to compress the spring by 0.14 m . If the spring is compressed, and the mass is released from rest, it experiences a maximum acceleration of 12 m/s2. Find the value of the spring constant. Find the value of the mass.

suppose that a 200g mass(0.20kg)is oscillating at the end of spring upon a frictionless horizontal surface....

suppose that a 200g mass(0.20kg)is oscillating at the end of spring upon a frictionless horizontal surface. The spring can be both stretched and compressed and has a spring constant of 240N/m. It was originally stretchef a distance of 12m (0.12m) from it equilibrium. What is its initial potential energy (PEmax) show calculation where in the oscillation is this maximum reached? what is the maximum velocity (Vmax) that the mass will reach in its oscillation? show calculation when the mass is...

1) A spring is 17.8 cm long when it is lying on a table. One end...

1) A spring is 17.8 cm long when it is lying on a table. One end is then attached to a hook and the other end is pulled by a force that increases to 28.0 N , causing the spring to stretch to a length of 19.7 cm a)What is the force constant of this spring? b)How much work was required to stretch the spring from 17.8 cm to 19.7 cm ? c)How long will the spring be if the...

Two circular loops are lying side-by-side horizontally on the surface of a table. A battery and...

Two circular loops are lying side-by-side horizontally on the surface of a table. A battery and switch are connected in series with the left-hand loop. When the switch is closed, a counterclockwise current begins to flow in the left-hand loop. What, if anything, happens in the right-hand loop due to the current flowing in the left-hand loop? a) The current remains zero. b) A counterclockwise current is induced. c) A clockwise current is induced. Explain your answer.

If an object on a horizontal frictionless surface is attached to a spring, displaced, and then...

If an object on a horizontal frictionless surface is attached to a spring, displaced, and then released, it oscillates. Suppose it is displaced 0.125 m from its equilibrium position and released with zero initial speed. After 0.860 s, its displacement is found to be 0.125 m on the opposite side and it has passed the equilibrium position once during this interval.Find the amplitude of the motion.=________________mFind the period of the motion.=________________sFind the frequency of the motion.=_________________Hz

A block of wood slides on a frictionless horizontal surface. It is attached to a spring...

A block of wood slides on a frictionless horizontal surface. It is attached to a spring and oscillates with a period of 0.8 s. A second block rests on top of the first. The coefficient of static friction between the two blocks is 0.25. If the amplitude of oscillations is 1.2 cm, will the block on the top slip? What is the greatest amplitude of oscillation for which the top block will not slip?

A 0.25 kg mass sliding on a horizontal frictionless surface is attached to one end of...

A 0.25 kg mass sliding on a horizontal frictionless surface is attached to one end of a horizontal spring (with k = 800 N/m) whose other end is fixed. The mass has a kinetic energy of 9.0 J as it passes through its equilibrium position (the point at which the spring force is zero). 1.At what rate is the spring doing work on the mass as the mass passes through its equilibrium position? 2.At what rate is the spring doing...

A 0.60 kg mass sliding on a horizontal frictionless surface is attached to one end of...

A 0.60 kg mass sliding on a horizontal frictionless surface is attached to one end of a horizontal spring (with k = 650 N/m) whose other end is fixed. The mass has a kinetic energy of 11.0 J as it passes through its equilibrium position (the point at which the spring force is zero). A. At what rate is the spring doing work on the mass as the mass passes through its equilibrium position? B. At what rate is the...

a 0.6 kg ball traveling horizontally on a frictionless surface approaches a wall at a speed...

a 0.6 kg ball traveling horizontally on a frictionless surface approaches a wall at a speed of 20m/s perpendicularly to the wall and rebounds with 70% of its initial kinetic energy. What is the magnitude of the impulse exerted on the ball by the wall? A. 12.0 kg*m/s B. 1.96 kg*m/s C. 22.0 kg*m/s D. 20.4 kg*m/s E. 3.60 kg*m/s
