Compute the following subtraction problems using two’s complement (Keep answers in two’s comp. 4-bit binary). (Four...

Compute the following subtraction problems using two’s complement (Keep answers in two’s comp. 4-bit binary). (Four Points)

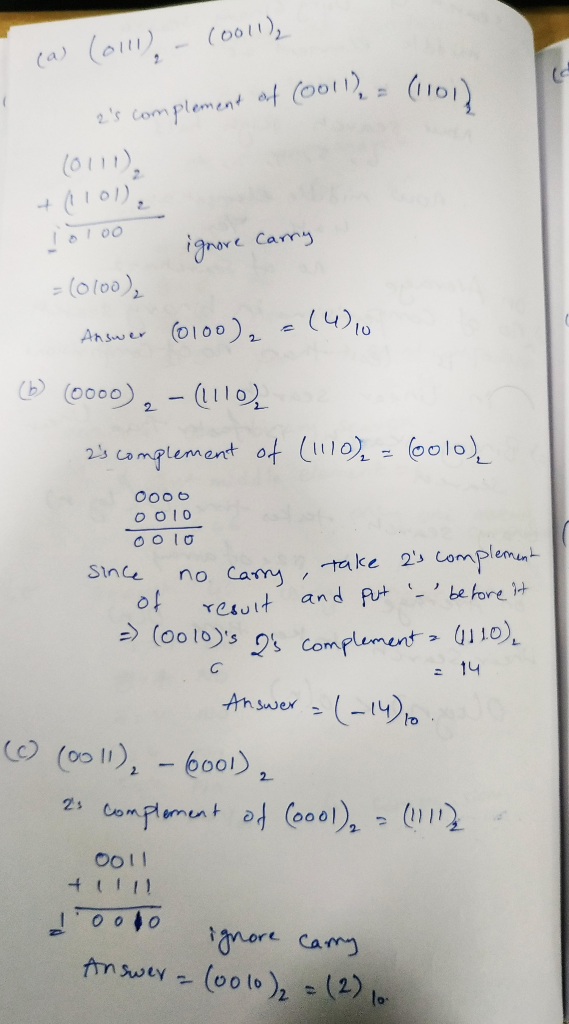

0111₂ – 0011₂ =
0000₂ – 1110₂ =
0011₂ – 0001₂ =

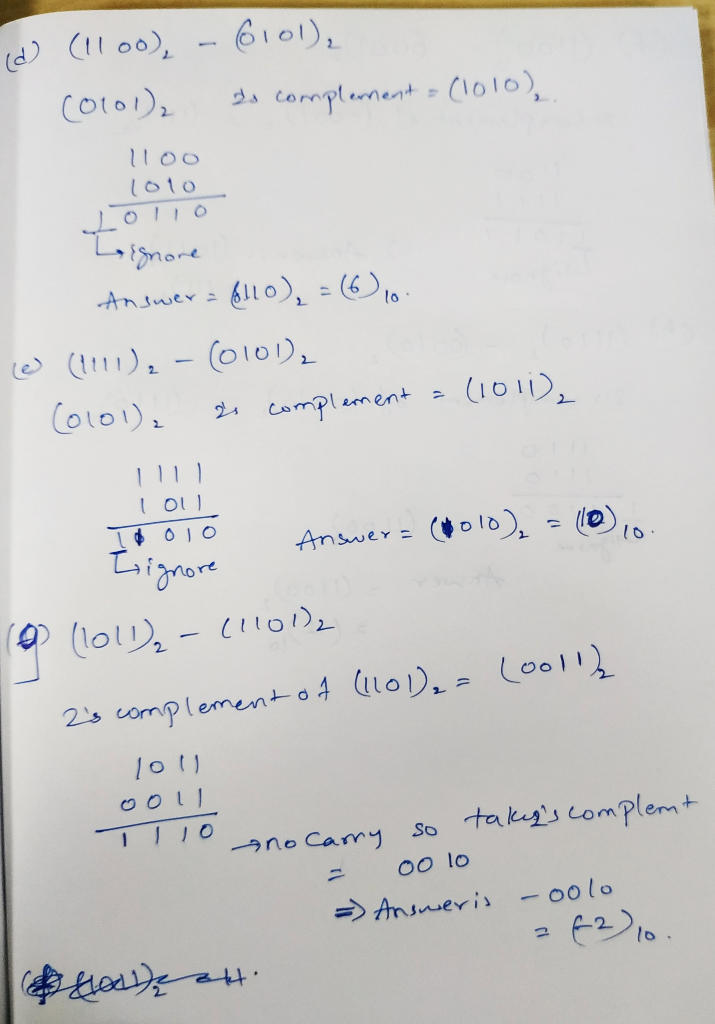

1100₂ – 0011₂ =
1111₂ – 0101₂ =

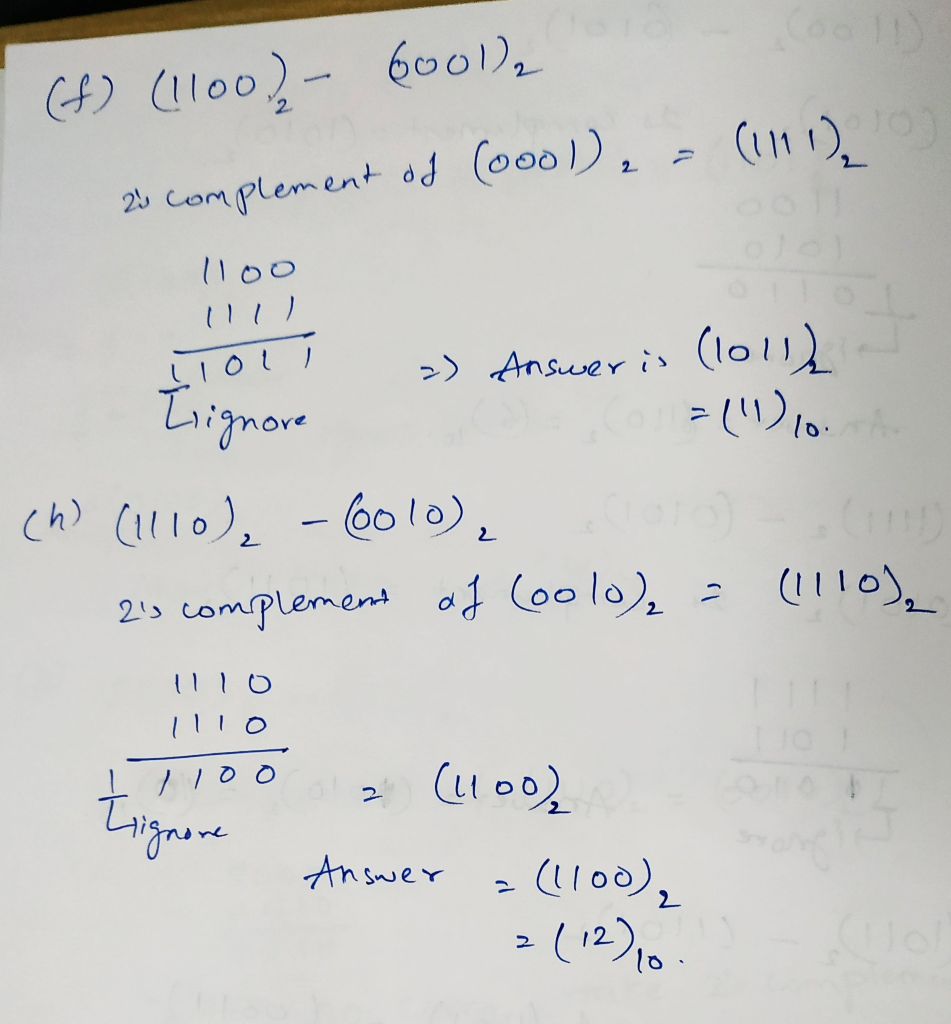

1100₂ – 0001₂ =
1011₂ – 1101₂ =
1110₂ – 0010₂ =

Expert Solution

venereology answered 1 hour ago
