Question

In: Physics

A point charge q1 = -4.00 nC is at the point x = 0.60 m, y...

A point charge q1 = -4.00 nC is at the point x = 0.60 m, y = 0.80 m , and a second point charge q2 = +6.00 nC is at the point x = 0.60 m , y = 0.

A) Calculate the magnitude of the net electric field at the origin due to these two point charges

B) Calculate the direction of the net electric field at the origin due to these two point charges.

Solutions

Expert Solution

A)

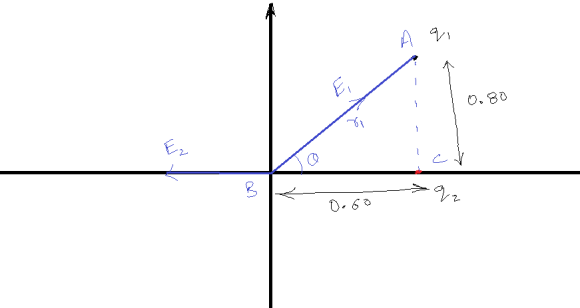

In triangle ABC

r1 = distance of charge q1 from origin = sqrt(0.602 + 0.802) = 1 m

= tan-1(AC/BC) = tan-1(0.80/0.60) = 53.12 deg

r2 = distance of charge q2 from origin = 0.60 m

magnitude of electric field by charge q1 is given as

E1 = k q1/r12 = (9 x 109) (4 x 10-9)/(1)2 = 36 N/C

magnitude of electric field by charge q2 is given as

E2 = k q2/r22 = (9 x 109) (6 x 10-9)/(0.60)2 = 150 N/C

Net electric field along x-direction is given as

Ex = E1 Cos - E2 =  (36) Cos53.12 - 150 = - 128.4 N/C

Net electric field along y-direction is given as

Ey = E1 Sin=  (36) Sin53.12 = 28.8 N/C

Net electric field is given as

E = sqrt(Ex2 + Ey2) = sqrt((- 128.4)2 + (28.8)2) = 131.6 N/C

B)

= direction = 180 - tan-1(Ey/Ex) = 180 - tan-1(28.8/128.4) = 167.4 deg counterclockwise from +X-direction
