Question

In: Physics

Consider the light passing from a means of refractive index n1 to another of index n2....

Consider the light passing from a means of refractive index n1 to another of index n2. Use the Fermat principle to minimize travel time and                                                                                     deduce the law of refraction: n1sen (θ1) = n2sen (θ2).

Solutions

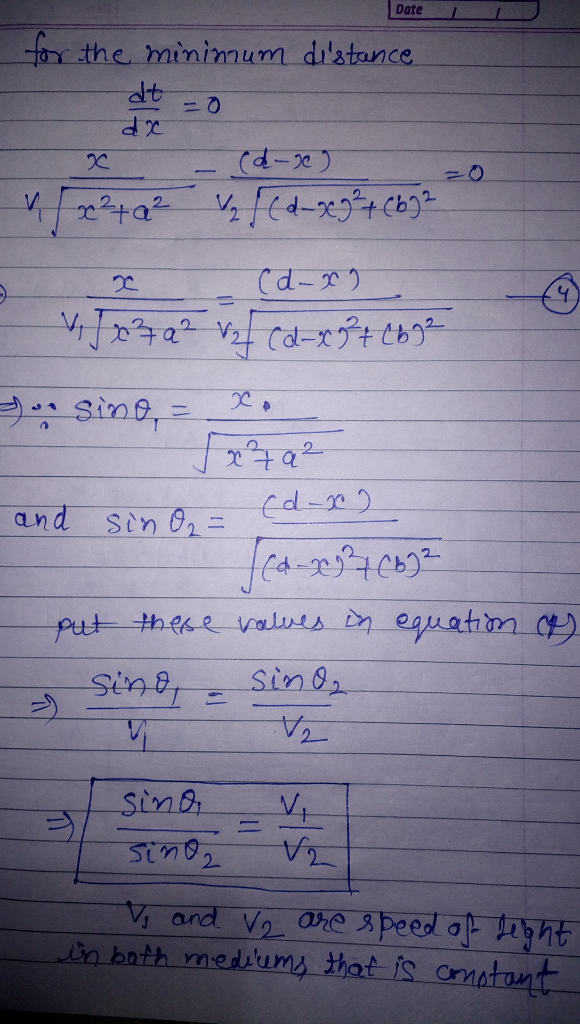

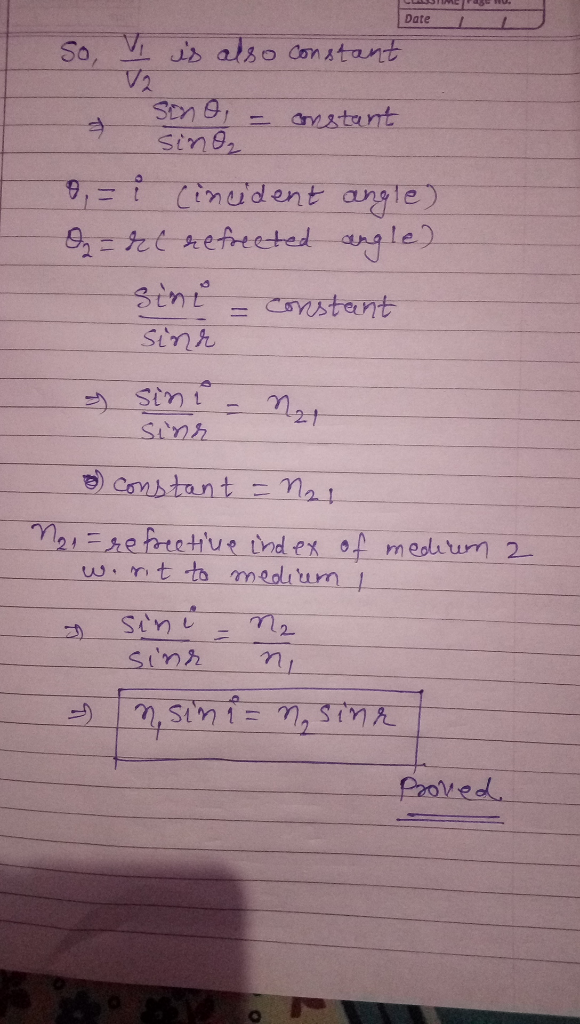

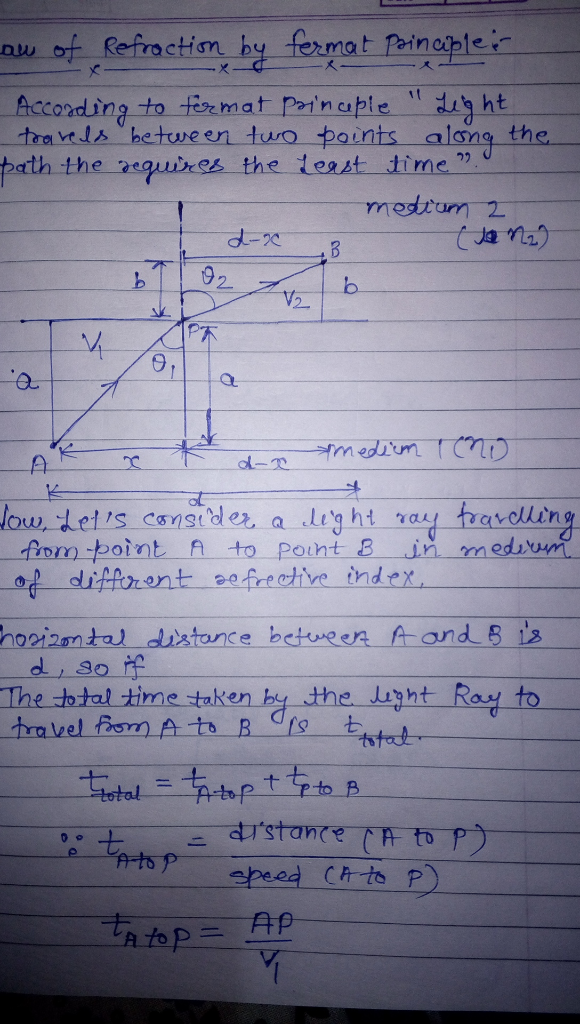

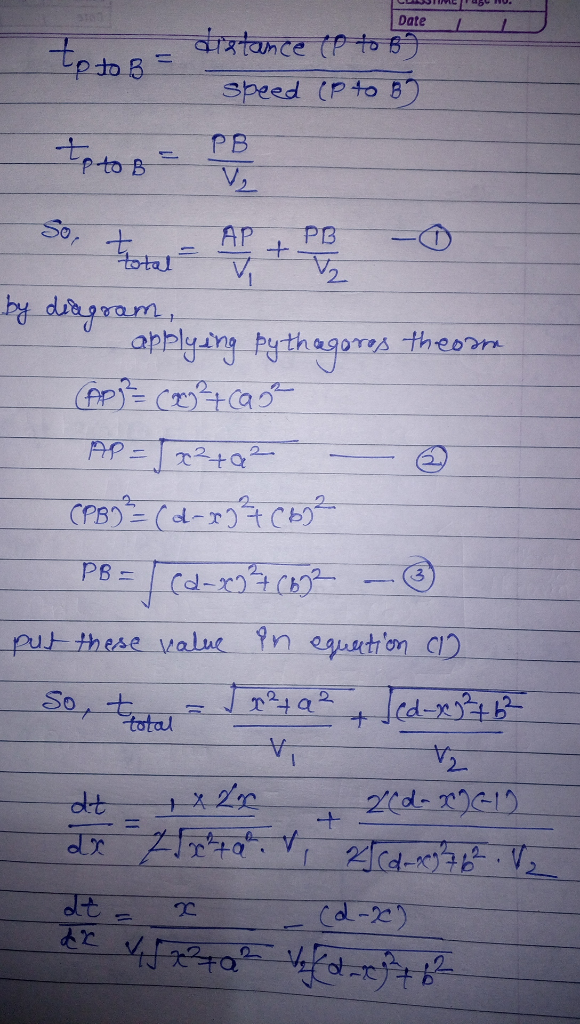

Expert Solution


Related Solutions

Consider a beam of light passing from air into glass (refractive index 1.5) at an angle...
Consider a beam of light passing from air into glass (refractive index 1.5) at an angle of 30 degrees from vertical. Calculate - The angle of the reflected light - The angle of the refracted light - The intensity of the reflected light - The intensity of the refracted light
A beam of yellow light (420 nm) travels from air (refractive index n1=1.00) to glass (n2=2.50)...
A beam of yellow light (420 nm) travels from air (refractive index n1=1.00) to glass (n2=2.50) at an incident angle θ1 of 60°. Some light is reflected and some refracted. (a) What’s the reflection angle θ2 and relative intensity (as percent of the original intensity) of the reflected beam? (b) What’s the refraction angle θ2 ’? (c) What’s the speed of this light in the glass? (d) What’s the energy of one photon of this light? c = 3.00 ×...
1. A ray of light passes from one substance (n1) into another (n2). In the scenario...
1. A ray of light passes from one substance (n1) into another (n2). In the scenario where n1 < n2, what is the relationship between the speed of light at n1 with respect to the speed of light at n2? greater than equal to less than n/a 2. When a ray of light hits a flat mirror, what is the relationship between the angle of incidence to the angle of reflection? greater than equal to less than dependent upon n...
light travels from air through two layers with index of refraction n1 and n2, respectively. If...
light travels from air through two layers with index of refraction n1 and n2, respectively. If upon entering each layer light loses 10% of its velosity, what is the index of refraction n2
The refractive index of diamond is 2.4. For unpolarized light incident from vacuum onto a polished...
The refractive index of diamond is 2.4. For unpolarized light incident from vacuum onto a polished diamond surface, calculate the angle of refraction for which the reflected light is fully polarized. Calculate the ratio between the reflected light intensity and the incident light intensity, and specify the polarization state of the reflected light
Refractive index of core of an optical fibre is 1.46 and its diameter is 250μm. Light...
Refractive index of core of an optical fibre is 1.46 and its diameter is 250μm. Light propagates along the axis of the fibre . If the fibre bends at one point with radius of curvature R, Calculate the minimum value (critical radius of curvature Rmin) to sustain the light inside, without escaping from the fibre. Discuss the factors on which the critical radius of curvature may depend? Does it depend on the colour of light propagating through the fibre?   ...
Light enters medium 2 from medium 1 whose refractive index is 1.5 at an angle of incidence of 50
Light enters medium 2 from medium 1 whose refractive index is 1.5 at an angle of incidence of 50. If the angle of refraction in medium 2 is 25, calculate the refractive index of medium 2.4.0424.3610.3542.7191.243When light enters a medium of refractive index 1.1from a medium of refractive index 2, for whichof the following angle of incidence would bothreflection and refraction take place? 36.4931.22637.60135.49934.802
Light is incident along the normal on face AB of a glass prismwith refractive index 1.52....
Light is incident along the normal on face AB of a glass prismwith refractive index 1.52. A. Find the largest value the angle α can have withoutany light refracted out of the prism at face AC if the prism isimmersed in air. B. Find the largest value the angle α can have withoutany light refracted out of the prism at face AC if the prism isimmersed in water. air refactive index = 1.00029 water refractive index = 1.33
. Light travels at different speeds through materials due the refractive index of that material. Given...
. Light travels at different speeds through materials due the refractive index of that material. Given that I have a transparent polymer material, would light travel faster or slower through it if it (a) have zero stress on it or (b) have a substantial, but still elastic, stress on it (say 20 MPa for HDPE)? Explain.
A certain ultraviolet light has a wavelength of 160nm in carbon di-sulfide (refractive index = 1.6).
A certain ultraviolet light has a wavelength of 160nm in carbon di-sulfide (refractive index = 1.6). The wavelength of the same light in diamond (refractive index = 2.4) will beGroup of answer choices83 nm.107 nm.160 nm.200 nm.240 nm.
