This is done using Visual Basic. Add three text boxes and three buttons to the form....

This is done using Visual Basic.

Add three text boxes and three buttons to the form. Set the second and third text boxes' Multiline, ReadOnly, and ScrollBars properties to True, True, and Vertical, respectively. The user will enter a number in the first text box and them click the first button. The first buttons click event procedure should write the number on a seperate line in a sequential access file. The second button's click event procedure should read the entire sequential access file at once, and display the file's contents in the third text box; display each number on a separate line. Code the procedures. Save the solution and start the application. Use the first button to write any six numbers to the file. Then, use the second and third buttons to display the contents of the file in their respective text boxes. Close the solution.

Solutions

Expert Solution

In case of any query do comment. Please rate answer as well. Thanks

Note: You didn’t mention the functionality of Third button and second text box. Please do let me know via comment if you require anything for Third button. Right now I am just outputting, on the click of third button push the data to Second text box

Code:

=======Form1.vb======

Imports System.IO

Public Class Form1
Dim data() As String
'handles the click of Button 2
Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
'StreamWrite is used to write lines to the file opened by AppendText
Using writer As StreamWriter = File.AppendText("C:\display.txt")
'Write the content of a text box
writer.WriteLine(TextBox1.Text)
End Using
TextBox1.Clear()
End Sub
'handles the click of Button 2
Private Sub Button2_Click(sender As Object, e As EventArgs) Handles Button2.Click
'assign the ReadData output to Text box 2
TextBox2.Text = ReadData()
End Sub
'Read the data from the file and join it using new line and return the data
Private Function ReadData() As String
data = File.ReadAllLines("C:\display.txt")
ReadData = Join(data, System.Environment.NewLine)
End Function
'function to read file line by line
Private Function ReadDataLineByLine() As String
Dim reader As StreamReader = My.Computer.FileSystem.OpenTextFileReader("C:\display.txt")
Dim line As String
Do
line = reader.ReadLine
data.Append(line)
Loop Until line Is Nothing
reader.Close()
ReadDataLineByLine = Join(data, System.Environment.NewLine)
End Function
'handles the click of Button 3
Private Sub Button3_Click(sender As Object, e As EventArgs) Handles Button3.Click
'assign the ReadData output to Text box 3
TextBox3.Text = ReadDataLineByLine()
End Sub
End Class

=====from1.designer.vb========

<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _

Partial Class Form1

    Inherits System.Windows.Forms.Form

    'Form overrides dispose to clean up the component list.

    <System.Diagnostics.DebuggerNonUserCode()> _

    Protected Overrides Sub Dispose(ByVal disposing As Boolean)

        Try

            If disposing AndAlso components IsNot Nothing Then

                components.Dispose()

            End If

        Finally

            MyBase.Dispose(disposing)

        End Try

    End Sub

    'Required by the Windows Form Designer

    Private components As System.ComponentModel.IContainer

    'NOTE: The following procedure is required by the Windows Form Designer

    'It can be modified using the Windows Form Designer.

    'Do not modify it using the code editor.

    <System.Diagnostics.DebuggerStepThrough()> _

    Private Sub InitializeComponent()

        Me.TextBox1 = New System.Windows.Forms.TextBox()

        Me.TextBox2 = New System.Windows.Forms.TextBox()

        Me.TextBox3 = New System.Windows.Forms.TextBox()

        Me.Button1 = New System.Windows.Forms.Button()

        Me.Button2 = New System.Windows.Forms.Button()

        Me.Button3 = New System.Windows.Forms.Button()

        Me.SuspendLayout()

        '

        'TextBox1

        '

        Me.TextBox1.Location = New System.Drawing.Point(74, 76)

        Me.TextBox1.Name = "TextBox1"

        Me.TextBox1.Size = New System.Drawing.Size(180, 26)

        Me.TextBox1.TabIndex = 0

        '

        'TextBox2

        '

        Me.TextBox2.Location = New System.Drawing.Point(289, 76)

        Me.TextBox2.Multiline = True

        Me.TextBox2.Name = "TextBox2"

        Me.TextBox2.ReadOnly = True

        Me.TextBox2.ScrollBars = System.Windows.Forms.ScrollBars.Vertical

        Me.TextBox2.Size = New System.Drawing.Size(195, 103)

        Me.TextBox2.TabIndex = 1

        '

        'TextBox3

        '

        Me.TextBox3.Location = New System.Drawing.Point(509, 76)

        Me.TextBox3.Multiline = True

        Me.TextBox3.Name = "TextBox3"

        Me.TextBox3.ReadOnly = True

        Me.TextBox3.ScrollBars = System.Windows.Forms.ScrollBars.Vertical

        Me.TextBox3.Size = New System.Drawing.Size(195, 103)

        Me.TextBox3.TabIndex = 3

        '

        'Button1

        '

        Me.Button1.Location = New System.Drawing.Point(86, 226)

        Me.Button1.Name = "Button1"

        Me.Button1.Size = New System.Drawing.Size(167, 36)

        Me.Button1.TabIndex = 4

        Me.Button1.Text = "First Button"

        Me.Button1.UseVisualStyleBackColor = True

        '

        'Button2

        '

        Me.Button2.Location = New System.Drawing.Point(317, 226)

        Me.Button2.Name = "Button2"

        Me.Button2.Size = New System.Drawing.Size(167, 36)

        Me.Button2.TabIndex = 5

        Me.Button2.Text = "Second Button"

        Me.Button2.UseVisualStyleBackColor = True

        '

        'Button3

        '

        Me.Button3.Location = New System.Drawing.Point(555, 226)

        Me.Button3.Name = "Button3"

        Me.Button3.Size = New System.Drawing.Size(167, 36)

        Me.Button3.TabIndex = 6

        Me.Button3.Text = "Third Button"

        Me.Button3.UseVisualStyleBackColor = True

        '

        'Form1

        '

        Me.AutoScaleDimensions = New System.Drawing.SizeF(9.0!, 20.0!)

        Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font

        Me.ClientSize = New System.Drawing.Size(800, 450)

        Me.Controls.Add(Me.Button3)

        Me.Controls.Add(Me.Button2)

        Me.Controls.Add(Me.Button1)

        Me.Controls.Add(Me.TextBox3)

        Me.Controls.Add(Me.TextBox2)

        Me.Controls.Add(Me.TextBox1)

        Me.Name = "Form1"

        Me.Text = "Form1"

        Me.ResumeLayout(False)

        Me.PerformLayout()

    End Sub

    Friend WithEvents TextBox1 As TextBox

    Friend WithEvents TextBox2 As TextBox

    Friend WithEvents TextBox3 As TextBox

    Friend WithEvents Button1 As Button

    Friend WithEvents Button2 As Button

    Friend WithEvents Button3 As Button

End Class

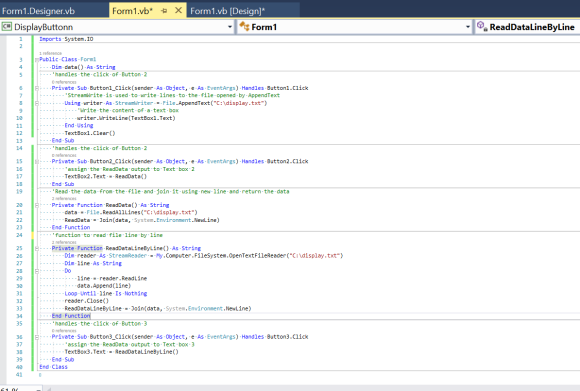

=========screen shot of the code=========

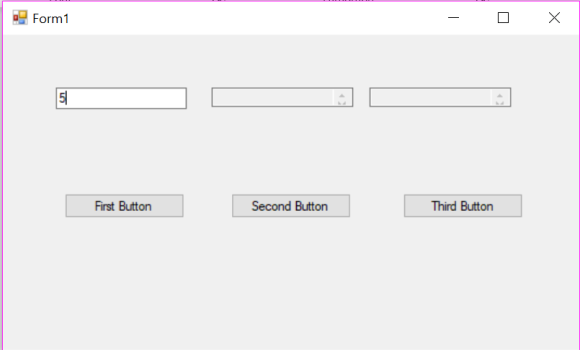

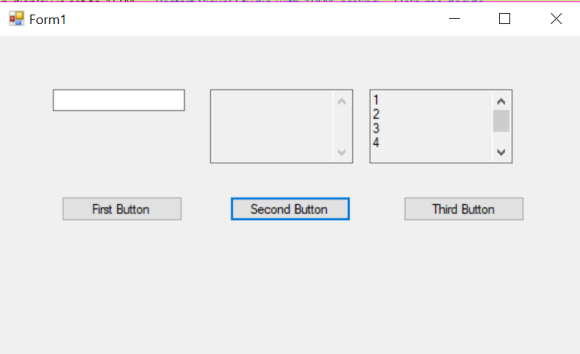

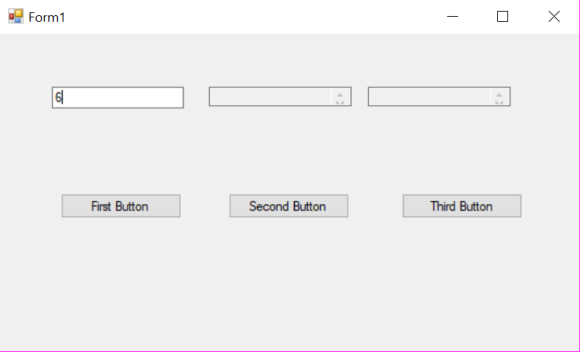

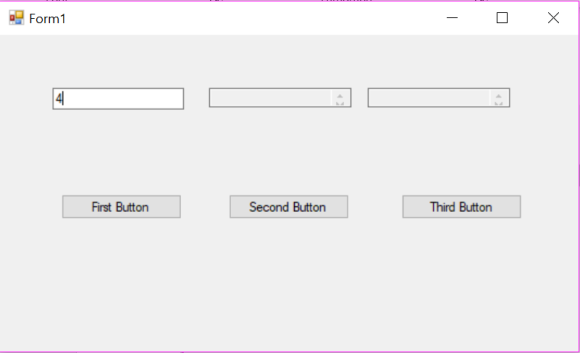

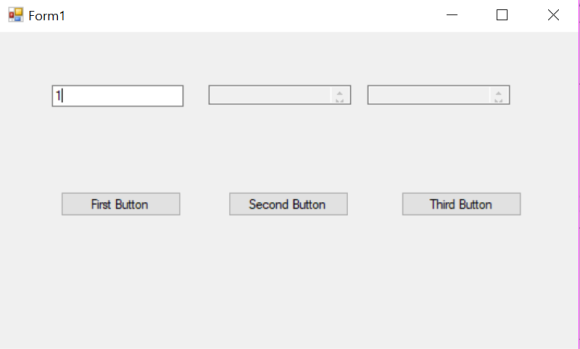

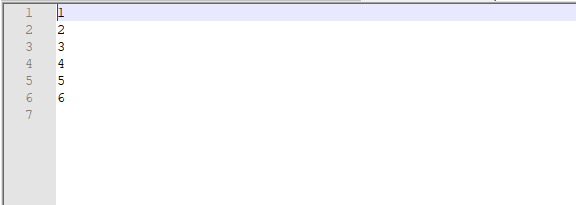

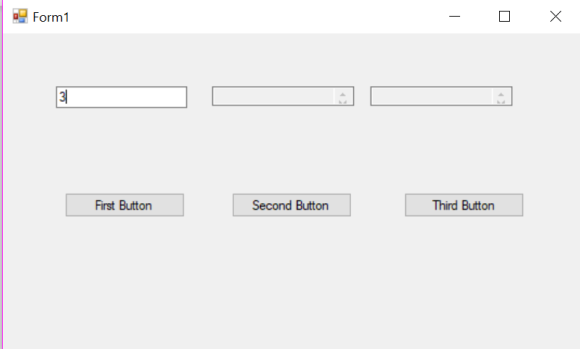

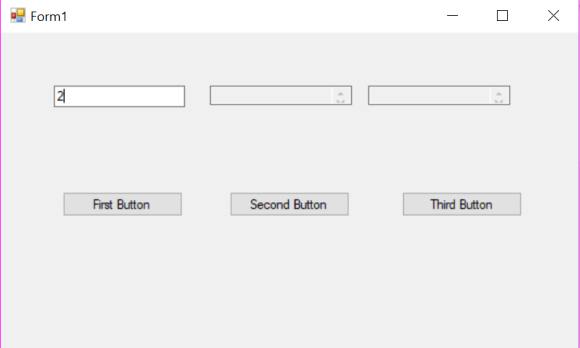

Output:

X Form 1.Designer.vb Form1.vb C# DisplayButtonn Imports System.IO Form 1.vb [Design] Form1 . . ReadData 1 reference Public.Class Form1 F... Dimdata().As String Hoc.'handles.the-click-of-Button-2 O references ... Private Sub-Button1_Click(sender. As. Object, e. As - EventArgs) - Handles Button1. Click ..'Streamwrite is used to write lines to the file opened.by. AppendText ...Using writer. As-StreamWriter.=. File. AppendText("C:\display.txt") ...... 'Write the content of a text box -writer.WriteLine(TextBox1.Text) ...End-Using ...TextBox1.Clear() End Sub ...'handles-the-click-of-Button-2 O references ...Private Sub-Button2_Click(sender. As. Object, .e-As.EventArgs). Handles. Button2. Click ......'assign-the-ReadData-output-to-Textbox3 ...TextBox3.Text = ReadData() ... End Sub ... 'Read the data from the file and join it.using.new-line and return the data 3 references ... Private. Function. ReadData() - As String ...... data = File. ReadAllLines ("C:\display.txt") S ct... ReadData = Join(data,System.Environment. NewLine) ... End- Function .'handles the click.of. Button-3 O references ... Private Sub-Button3_Click(sender. As. Object, e As.EventArgs) - Handles Button3. Click ... ..'assign-the-ReadData.outputto-Text-box-2 Fot...TextBox2.Text =- ReadData() + ... End Sub End.Class

Form1 - 0 x First Button Second Button Third Button

Form1 - O X First Button Second Button Third Button

Form1 - O x First Button Second Button Third Button

. Form1 - O X First Button Second Button Third Button

. Form1 - O X First Button Second Button Third Button

Form1 - O x First Button Second Button Third Button

. Form1 - 0 X First Button Second Button Third Button

o Form1 - D x WN - First Button Second Button Third Button

HNM HNM in

X Form 1.Designer.vb Form1.vb C# DisplayButtonn Imports System.IO Form 1.vb [Design] Form1 . . ReadData 1 reference Public.Class Form1 F... Dimdata().As String Hoc.'handles.the-click-of-Button-2 O references ... Private Sub-Button1_Click(sender. As. Object, e. As - EventArgs) - Handles Button1. Click ..'Streamwrite is used to write lines to the file opened.by. AppendText ...Using writer. As-StreamWriter.=. File. AppendText("C:\display.txt") ...... 'Write the content of a text box -writer.WriteLine(TextBox1.Text) ...End-Using ...TextBox1.Clear() End Sub ...'handles-the-click-of-Button-2 O references ...Private Sub-Button2_Click(sender. As. Object, .e-As.EventArgs). Handles. Button2. Click ......'assign-the-ReadData-output-to-Textbox3 ...TextBox3.Text = ReadData() ... End Sub ... 'Read the data from the file and join it.using.new-line and return the data 3 references ... Private. Function. ReadData() - As String ...... data = File. ReadAllLines ("C:\display.txt") S ct... ReadData = Join(data,System.Environment. NewLine) ... End- Function .'handles the click.of. Button-3 O references ... Private Sub-Button3_Click(sender. As. Object, e As.EventArgs) - Handles Button3. Click ... ..'assign-the-ReadData.outputto-Text-box-2 Fot...TextBox2.Text =- ReadData() + ... End Sub End.Class

We were unable to transcribe this image

We were unable to transcribe this image

We were unable to transcribe this image

. Form1 - O X First Button Second Button Third Button

We were unable to transcribe this image

We were unable to transcribe this image

We were unable to transcribe this image

We were unable to transcribe this image

HNM HNM in
