The following details refer to a centrifugal pump. Outer diameter: 36 cm. Eye diameter: 18 cm....

The following details refer to a centrifugal pump. Outer diameter: 36 cm. Eye diameter: 18 cm. Blade angle at inlet: 28°. Blade angle at outlet: 20°. The flow velocity remains constant at 10 m/s. The whirl at inlet is zero. the manometric efficiency is 95%. If width at outlet is 3 cm, determine the power in W (η₀ = 83%).

Expert Solution

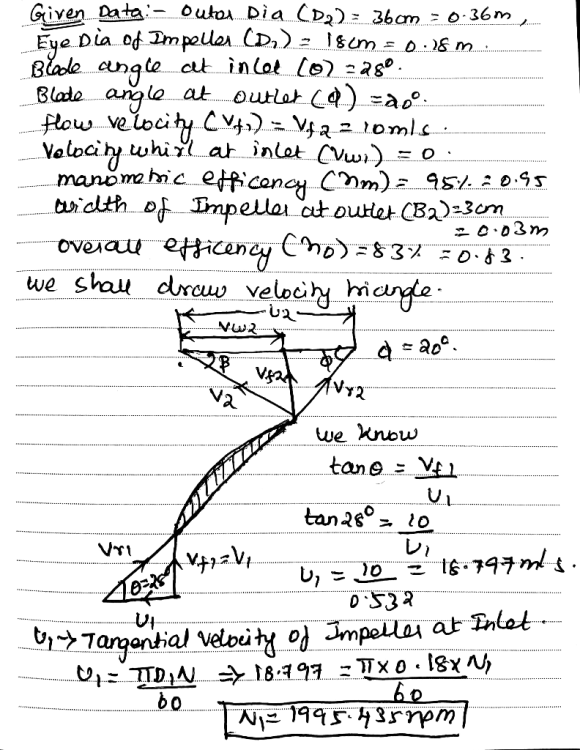

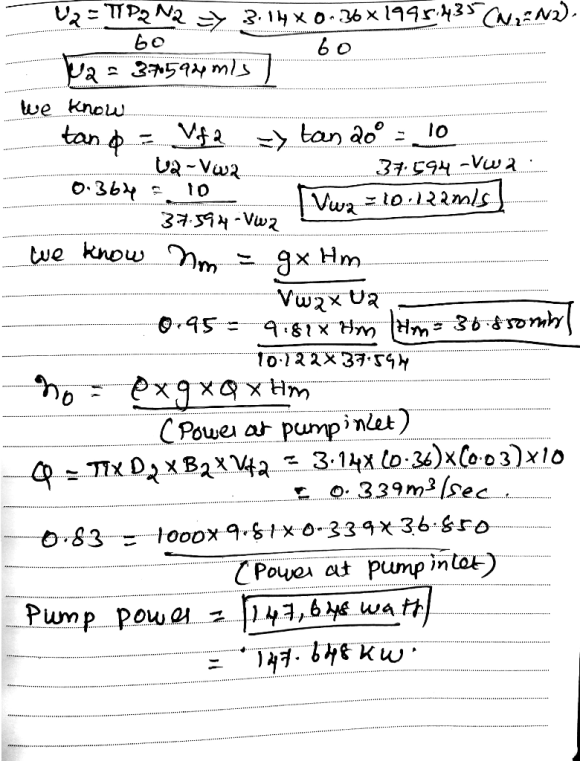

The solution for finding the Pump Power in watts is given below as image file.

samet mamat answered 1 month ago

An engineer is conducted the centrifugal pump at aircraft hangar. The pump has an eye diameter...

An engineer is conducted the centrifugal pump at aircraft hangar. The pump has an eye diameter and an impeller diameter of 200 mm and 500 mm respectively while running at 900 rpm. While it rotate, the blade angle is measured at 35o at outlet with considering the tangent. The flow velocity is limited at 3 m/s constantly. Evaluate the (a) inlet blade angle (b) outlet absolute velocity with its angle at outlet and (c) the manometric head.

A centrifugal pump has an eye diameter and an impeller diameter of 300 mm and 600...

A centrifugal pump has an eye diameter and an impeller diameter of 300 mm and 600 mm respectively while running at 850 rpm. When rotating, the blade angle is measured at 35o at the outlet with considering the tangent. The flow velocity is limited at 5 m/s constantly. Determine the following; (a) inlet blade angle (b) outlet absolute velocity with its angle at outlet and (c) the manometric head.

‏1. The impeller in a centrifugal pump has inner diameter as 125 mm and outer diameter...

‏1. The impeller in a centrifugal pump has inner diameter as 125 mm and outer diameter as 270 mm. The pump runs at 1400 rpm. The vane angles of impeller at inlet and outlet are 17° and 30° respectively. The water enters the impeller radially and velocity of flow is constant. Determine the work done by impeller per unit weight of water.

A centrifugal pump has the following characteristic: outer diameter of impeller 800 mm, width of impeller...

A centrifugal pump has the following characteristic: outer diameter of impeller 800 mm, width of impeller vanes at outlet 100 mm, angle of impeller vanes at outlet 40 o . The impeller runs at 550 rpm and delivers 0.98 m 3 /s of water under an effective head of 35 m. A 500 kW motor is used to drive the pump. Determine the manometric, mechanical and overall efficiencies of the pump. Assume water enters the impeller vanes radially at inlet....

The radius of the impeller of a centrifugal pump at the inlet is 6 cm and...

The radius of the impeller of a centrifugal pump at the inlet is 6 cm and at the outlet is 10.5 cm. The blade angles β1 and β2 are respectively 33o and 21o respectively. The width of the impeller is uniform and 4.75 cm. The impeller rotates at 1200 rpm and pumps water (See Figure 1). Assuming radial entry, (a) the flow rate through the pump (b) the theoretical head (c) the power required assuming an efficiency of 75%. (d)...

A toroid with inner diameter of 3 cm, outer diameter of 5 cm, and height of...

A toroid with inner diameter of 3 cm, outer diameter of 5 cm, and height of 0.1 cm is made of a body-centered-cubic (bcc) paramagnetic material with lattice parameter equal to 0.5 nm. The toroid is wrapped by a copper wire in 20 turns. If each atom of the magnetic material has a magnetic moment of 1.5µB (Bohr Magneton), (a) (1.5 pt) What is the saturation magnetization (in A/m) of the material? (b) (1.5 pt) If a current of 2...

A brass ring with inner diameter 2.00 cm and outer diameter 3.00 cm needs to fit...

A brass ring with inner diameter 2.00 cm and outer diameter 3.00 cm needs to fit over a 2.00 cm-diameter steel rod, but at 20∘C the hole through the brass ring is 48 μmtoo small in diameter. To what temperature, in ∘C, must the rod and ring be heated so that the ring just barely slips over the rod?

A centrifugal pump with an impeller diameter of 30cm and speed 1800RPM operating at its best...

A centrifugal pump with an impeller diameter of 30cm and speed 1800RPM operating at its best effiecieny point develops a head of 30m and a flow of 3900L/min. while requiring power of 24kW. This pump is scaled up to provide a flow of 11000L/min. and a head of 75m. Determine the impeller diameter, speed, and a brake power of the new pump.

2. A centrifugal pump running at 750 rpm with a 1-m-diameter impeller generates the following pressure...

2. A centrifugal pump running at 750 rpm with a 1-m-diameter impeller generates the following pressure rise and flow rate data while pumping water at room temperature: ?(dot)[m^3/s]= [0, 0.0278, 0.0417, 0.0556, 0.0694, 0.0833, 0.0903, 0.0972] ?P [kPa]= [361, 349, 328, 293, 230, 145, 114, 59] Estimate the pressure rise and flow rate for impeller speeds of 500 and 1000 rpm using the 750 rpm data. Plot pressure rise (y-axis) vs flow rate (x-axis) for all three pump speeds and...

The inner and outer diameter of a single core cable are 3 cm and 8.5 cm...

The inner and outer diameter of a single core cable are 3 cm and 8.5 cm The insulated with two materials having relative permittivity of 5 and 3.5 respectively with corresponding maximum electric stresses of 35 kV/cm and 25 kV/cm. Draw the configuration and calculate: a) the radial thickness of each insulating layer. b) the safe working voltage of the cable. c) draw the voltage and electric stress as a function of radial distance from center to metal sheath.
