Question

In: Physics

Two capacitors, C1 = 16.0 μF and C2 = 32.0 μF, are connected in series, and...

Two capacitors,

C₁ = 16.0 μF

and

C₂ = 32.0 μF,

are connected in series, and a 15.0-V battery is connected across them.

(a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor.

equivalent capacitance	μF
total energy stored	J

(b) Find the energy stored in each individual capacitor.

energy stored in C₁
energy stored in C₂

(c) If the same capacitors were connected in parallel, what potential difference would be required across them so that the combination stores the same energy as in part (a)?
V____

Which capacitor stores more energy in this situation, C₁ or C₂?

C₁C₂ Both C₁ and C₂ store the same amount of energy.

Expert Solution

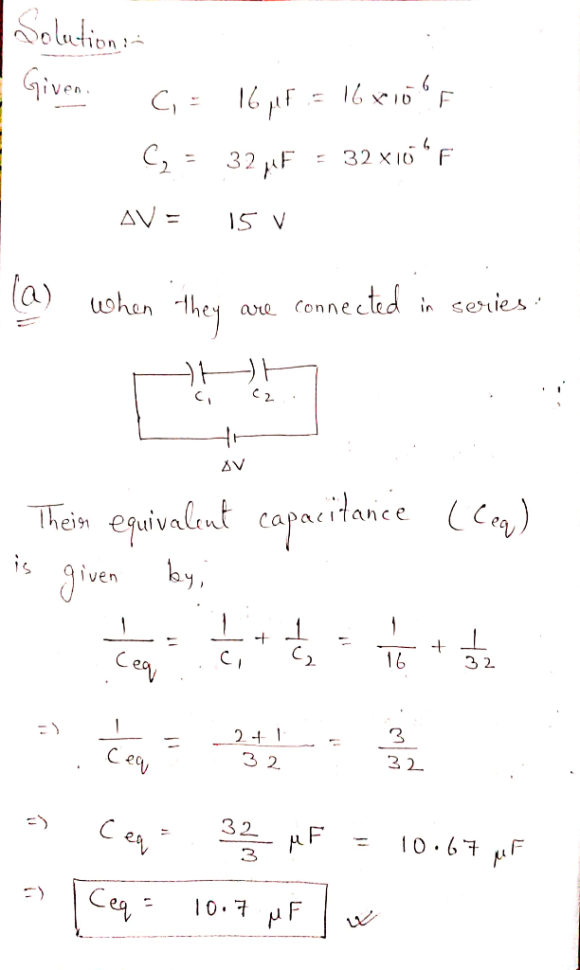

(a) 10.7 uF

1.2 x 10^-3 J

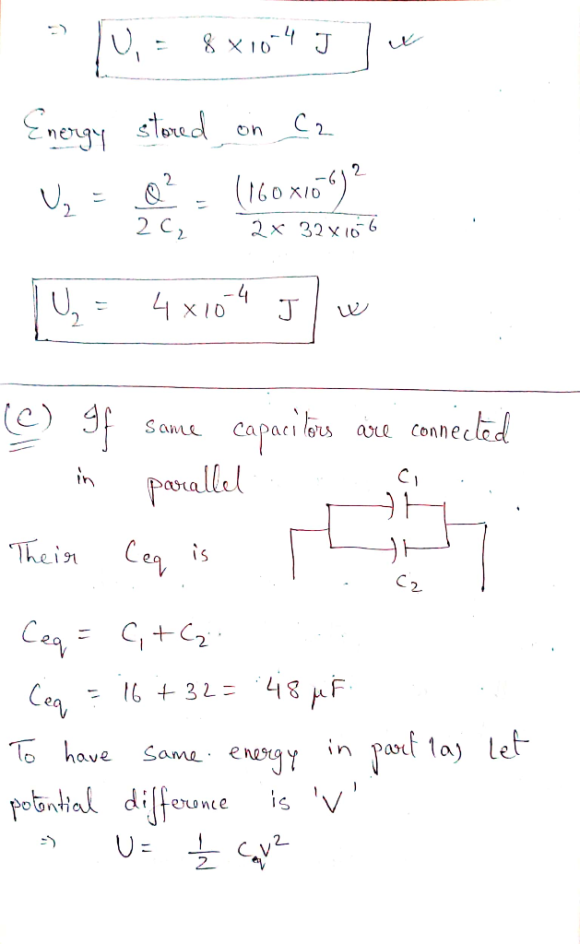

(b) 8x10^ -4 J

4x10^ -4 J

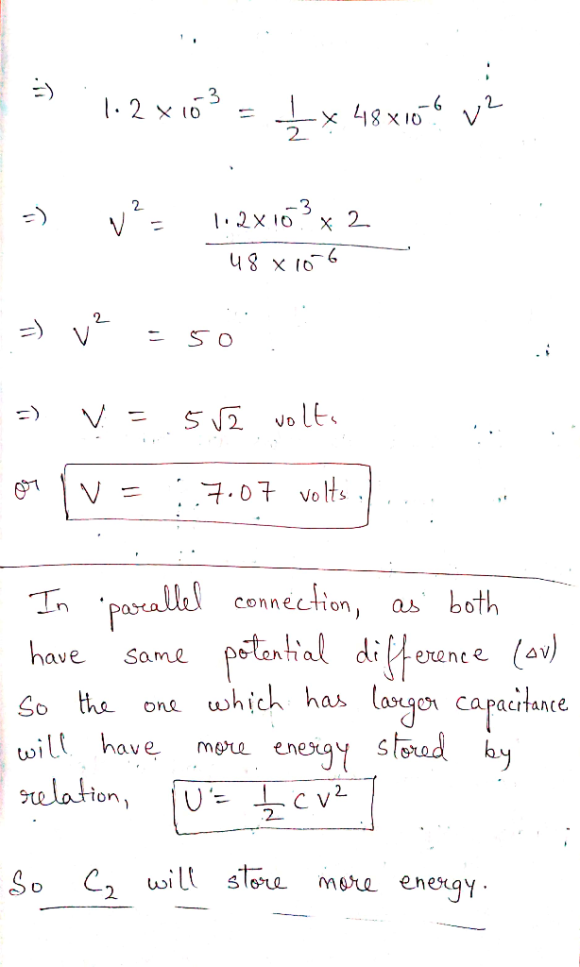

(c). V= 7.07 volts

C2 will store more energy

genius_generous answered 1 month ago
