What is enhanced ER Model? Explain extended ER features: Specialization, Generalization and Aggregation with your clear...

What is enhanced ER Model? Explain extended ER features: Specialization, Generalization and Aggregation with your clear definitions/ideas/differences in your own words and give at least one appropriate example for each one of them.

Solutions

Expert Solution

Enhanced ER Model (EER) :

  • It is also known as Extended ER model.
  • As the data is increasing, development of traditional ER model for database modeling is getting difficult. To reduce complexity of modeling we have EER model.
  • It is a high-level data model also is an extension of original ER model, Enhanced ER diagrams are advance database diagrams which represents requirements and the complex database

.Features of EER Model :

  • Creates designs more accurate to schema of database.
  • It shows the constraints and data properties more precisely.
  • it is an extension of Original ER model so it includes all modeling concepts of Original ER model.
  • It is a diagrammatic Technique for showing Super Class and Sub Class i.e. leads to concept of Inheritance.
  • It has concept of Specialization and Generalization, Union or Category, Aggregation.

Generalization

  • It is a bottom-up approach. In this two or more low level entities combine to form a higher level entity, with attributes common to them.
  • In Programming subclass are called specialized class and superclass are called generalized class, two or more sub class with some common properties combine to form a super class.
  • Revere process of Specialization is Generalization.
  • It is used to identify common features of the entities.

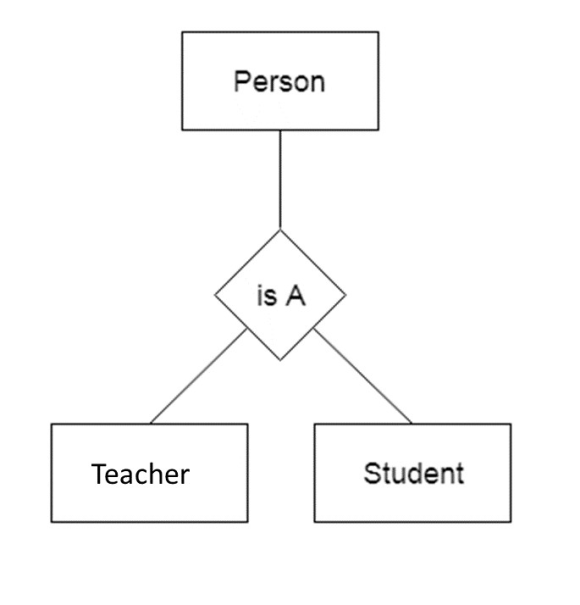

  • Example : Teacher and Student entities can be combined and create a higher level entity Person.

Specialization :

  • It is top-down approach. High level entities are broken down into multiple low level entities.
  • It is opposite of Generalization.
  • Each subclass of a superclass i.e. each subset of an entity have some distinguishing features.
  • Specialization is usually done after Generalization, i.e. superclass is defined first after which sub classes can be defined.
  • It identifies unique attributes of the members of an entity.

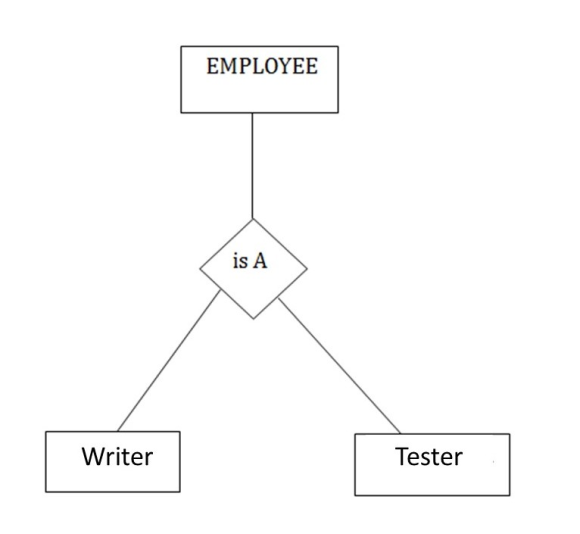

Example : In Employee management system, EMPLOYEE entity could be specialized as WRITER or TESTER based on roles they have in the company.

Aggregation :

  • Aggregation is a process to depict the relationship between various entities, aggregated into high level entity.
  • It is like data abstraction, as It abstracts relationship between multiple objects to a single object.
  • In this process we consider two activities as single entities.

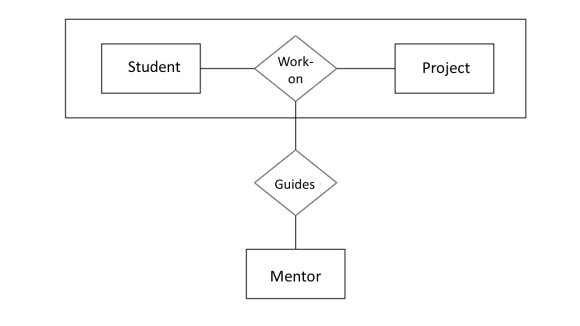

Example : STUDENT entity has a relation of works on with PROJECT entity and they together form a single entity that has a relationship "guides" with the entity MENTOR

HOPE THIS HELPS THUMBS UP :)
