An archer standing on a 15 degree slope shoots an arrow at an angle of 23...

An archer standing on a 15 degree slope shoots an arrow at an angle of 23 degrees above the horizontal. How far down the slope does the arrow hit if it is shot with a speed of 44 m/s from a height of 1.78 m above the ground?

Solutions

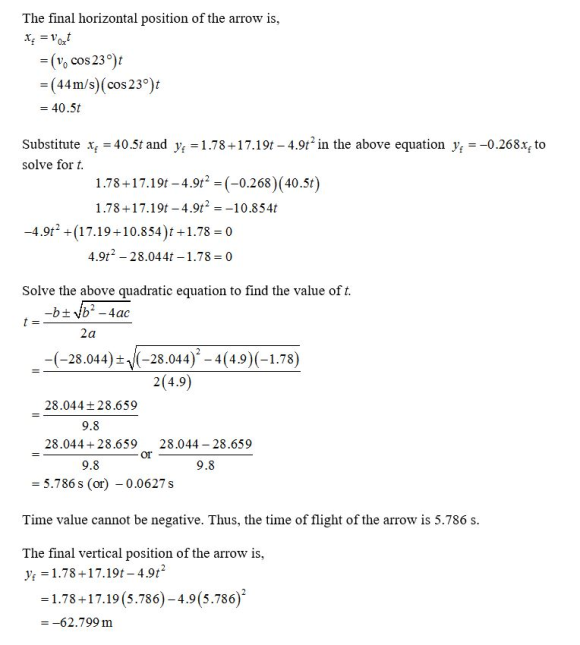

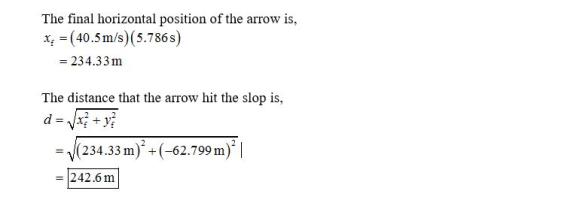

Expert Solution


Related Solutions

An archer shoots an arrow
An archer shoots an arrow at a 75 m distant target; the bull’s-eye of the target is at same height as the release height of the arrow. If d = 75 m and v = 37 m/s. At what angle must the arrow be released to hit the bull’s-eye if its initial speed is 37m/s?
An archer shoots an arrow at an angle 20◦ above the horizontal. How far from the...
An archer shoots an arrow at an angle 20◦ above the horizontal. How far from the archer does the arrow hit the ground if it is shot with a speed of 50 m/s from 1.75m above ground? Hint: Start with setting up your xy coordinates system appropriately. Extra Practice: An archer standing on a 15◦ slope shoots an arrow 20◦ above the horizontal. How far down the slope does the arrow hit if it is shot with a speed of...
A 60 kg archer, standing on frictionless ice, shoots a 120 g arrow at a speed...
A 60 kg archer, standing on frictionless ice, shoots a 120 g arrow at a speed of 95 m/s. a) Does the bow exert a constant force or a variable force on the arrow? b) Is this situation considered an isolated system or a non-isolated system? What other forces would you include in a free-body diagram? Would these other forces contribute to the velocity of either the arrow or the archer? c) What pair of forces exist that causes the...
A 0.5 kg ball is dropped from a window. An archer shoots a 0.05 kg arrow...
A 0.5 kg ball is dropped from a window. An archer shoots a 0.05 kg arrow to intercept the ball. When the ball is impaled it is traveling at -2 m/s in the y direction, and the arrow is traveling at 35 m/s at an angle of 20 degrees. What is the velocity of the pair after the collision in vector notation, magnitude, and direction? What is the impulse of the arrow?
An archer is able to hit the bull's-eye 25% of the time. If she shoots 15...
An archer is able to hit the bull's-eye 25% of the time. If she shoots 15 arrows, what is the probability that she does not get at least 4 bull's-eyes? Assume each shot is independent of the others. Express your answer as a percentage rounded to the nearest hundredth.
The intersection angle of a 5 degree curve is 23 degrees and the PC is located...
The intersection angle of a 5 degree curve is 23 degrees and the PC is located at station 550+55.00. Determine the length of the curve, the station of the PT, the deflection angles, and the chord lengths for setting out the curve at whole stations from the PC.
An archer shoots arrows at a circular target where the central portion of the target inside...
An archer shoots arrows at a circular target where the central portion of the target inside is called the bull. The archer hits the bull with probability 1/32. Assume that the archer shoots 96 arrows at the target, and that all shoots are independent. What is an approximated probability that an archer hit not more than one bull?
An archer can hit the bullseye on 30% of her shots. She shoots 5 arrows. Let...
An archer can hit the bullseye on 30% of her shots. She shoots 5 arrows. Let the variable x represent the number of arrows that hit the bullseye. a) Using the formula (not the distributions on the TI84) find the probability that X=3. b) Write out the probability distribution for X and draw the histogram. c) Find the probability that X is less than 3. d) Find the mean, variance, and standard of X.
You are standing on a slope of 20 degrees to the horizontal and are going to...
You are standing on a slope of 20 degrees to the horizontal and are going to throw a ball at vi=20 m/s up the incline. If you throw the ball at an angle of 45 degrees with respect to the horizontal at what distance up the incline from your feet does it land? Assume the ball leaves your hand directly overhead, h=2.0 m above the slope. I know the horizontal velocity = 14.14 m/s and the vertical velocity also =...
William Tell shoots an apple from his son's head. The speed of the 118-g arrow just...
William Tell shoots an apple from his son's head. The speed of the 118-g arrow just before it strikes the apple is 20 m/s, and at the time of impact it is traveling horizontally. If the arrow sticks in the apple and the arrow/apple combination strikes the ground 7.7 m behind the son's feet, how massive was the apple? Assume the son is 1.85 m tall.
