Question

In: Mechanical Engineering

s) Sketch a rotary vane steering gear, label the parts and explain how it functions. b)...

s) Sketch a rotary vane steering gear, label the parts and explain how it functions.

b) List five (5) vital checks to carry out prior to the ship sailing out of port.

c) Draw a basic direct expansion refrigeration cycle and describe its operation

d) In Heating Ventilation and Air Conditioning (HVAC), explain what operation is carried
out to achieve comfort (in terms of humidity) during summer and in winter.

Solutions

Expert Solution

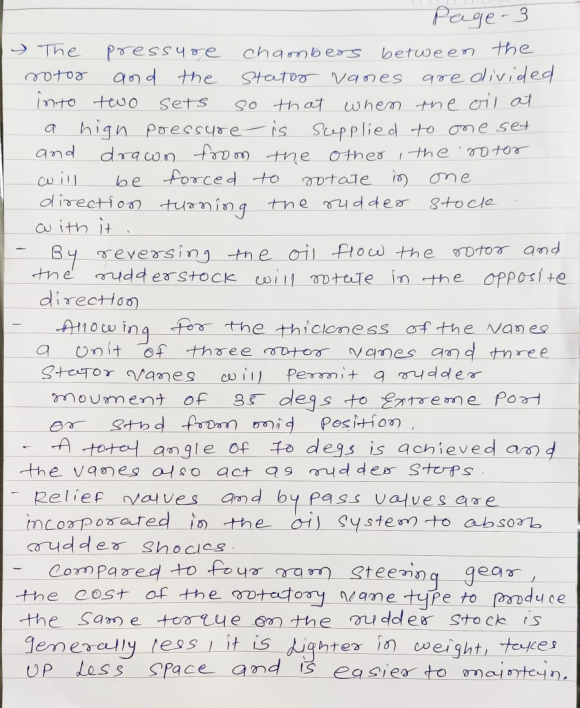

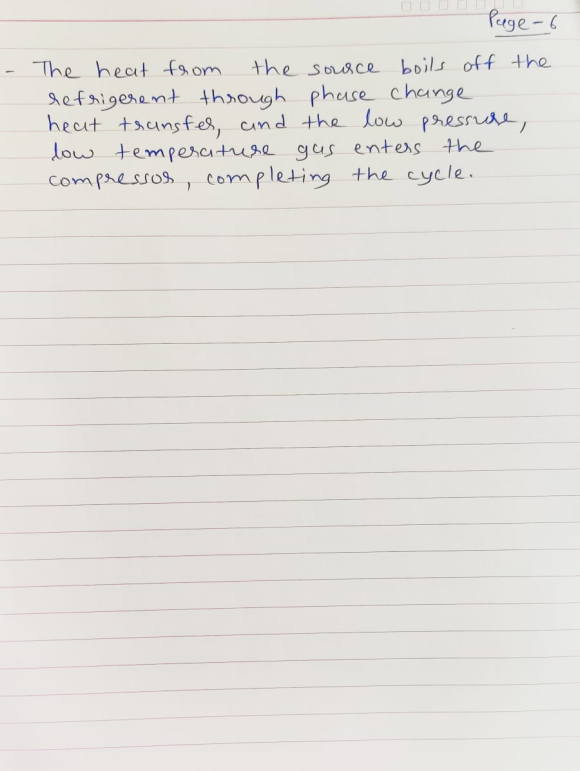

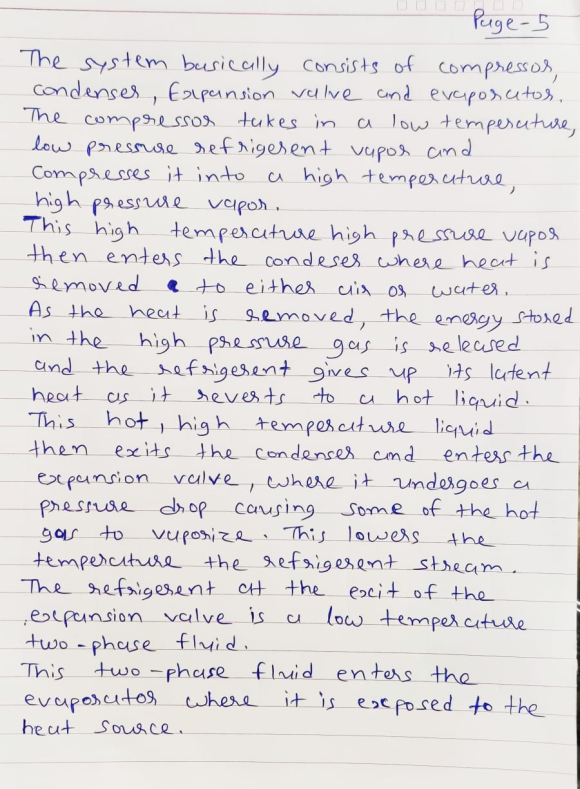

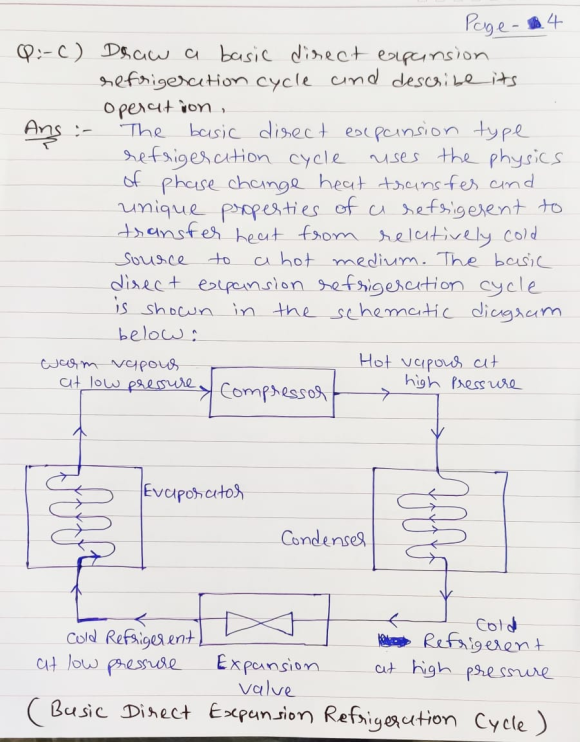

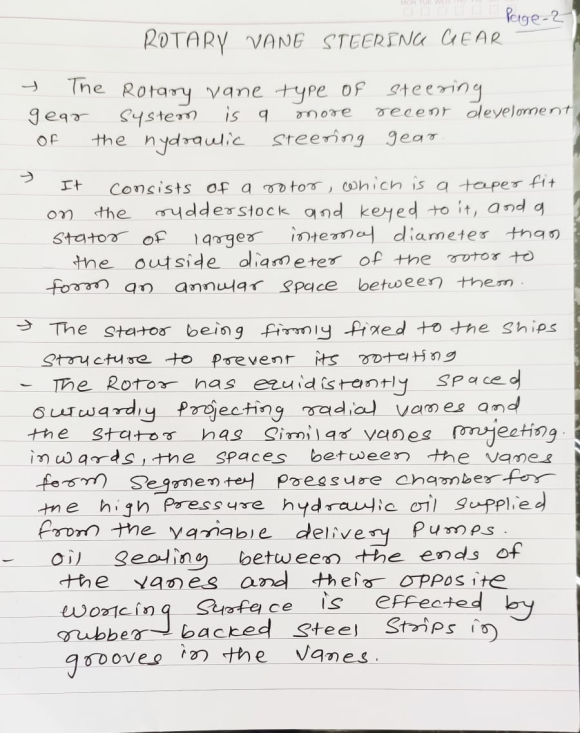

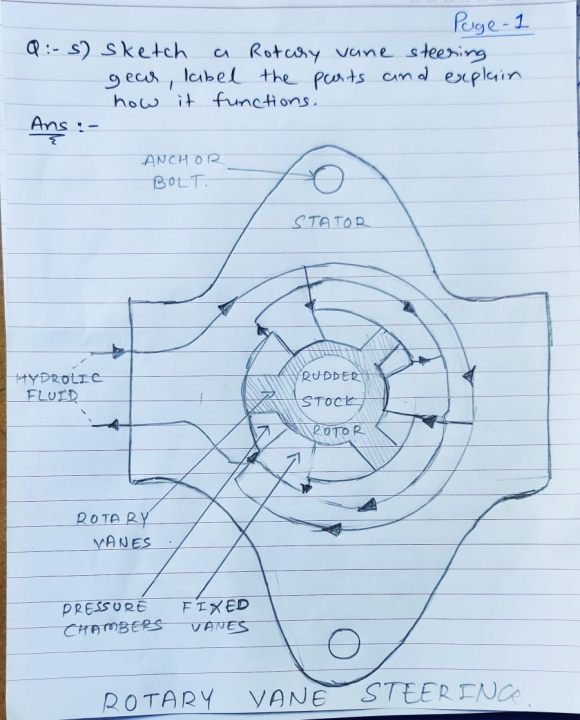

The detailed answers to the questions are described in the images below:

samet mamat answered 3 months ago
Next > < Previous
