0. Introduction.
In this lab assignment, you will extend some simple Java classes that represent plane figures from elementary geometry. The object of this assignment is not to do anything useful, but rather to demonstrate how methods can be inherited by extending classes.
1. Theory.
A polygon is a closed plane figure with three or more
sides, all of which are line segments. The perimeter of a
polygon is the sum of the lengths of its sides. A
rectangle is a polygon with exactly four sides that meet
at 90° angles. Like a polygon, it has a perimeter. It also has an
area, the product of its base and height. A
square is a rectangle whose sides are all the same length.
Like a rectangle, it has a perimeter and an area.
Polygons, rectangles, and squares
make up an is-a hierarchy. The hierarchy gets its name
because a square is-a rectangle, and a rectangle
is-a polygon. Is-a hierarchies can be easily modeled by
Java classes using the extends keyword.
2. Implementation.
The following is the source code for a Java class whose instances represent polygons. The file Polygon.java on Canvas contains a copy of this source code. You will need it to complete the laboratory assignment.
class Polygon
{
private int[] sideLengths;
public Polygon(int sides, int ... lengths)
{
int index = 0;
sideLengths = new int[sides];
for (int length: lengths)
{
sideLengths[index] =
length;
index += 1;
}
}
public int side(int number)
{
return sideLengths[number];
}
public int perimeter()
{
int total = 0;
for (int index = 0; index <
sideLengths.length; index += 1)
{
total += side(index);
}
return total;
}
}
The class Polygon uses a private array called sideLengths to
store the lengths of a polygon’s sides. The array’s length,
sideLengths.length, is the number of sides that the polygon has.
The class Polygon also has a has a public constructor and two
public methods. To keep things simple, they do not check their
arguments for correctness, as they would if Polygon was part of a
real program.
The constructor takes four or more
arguments and returns an instance of Polygon that represents a
polygon. The first argument is the number of sides that the polygon
has. The remaining arguments are the lengths of those sides. For
example, the Java statement:
Polygon triangle = new Polygon(3, 3, 4, 5);
declares the variable triangle and sets it to an instance of
Polygon that represents a triangle (because the first argument says
it has 3 sides). The lengths of the triangle’s sides are 3, 4, and
5.
The three dots ‘...’ in the
constructor mean that it can take zero or more extra integer
arguments after its first argument. The for-loop with the colon
visits the extra arguments one at a time. Don’t worry if those
parts of Java are unfamiliar. You don’t have to know how the
constructor works, only how to call it.
The method side returns the length
of a polygon’s side. Sides are numbered starting from 0. For
example, the expression triangle.side(0) returns 3, the expression
triangle.side(1) returns 4, and the expression triangle.side(2)
returns 5.
The method perimeter returns a
polygon’s perimeter, the sum of the lengths of its sides. For
example, the expression triangle.perimeter() returns 3 + 4 + 5 =
12.
For this assignment, you must write
a class called Rectangle. As its name suggests, each instance of
Rectangle must represent a rectangle. Along with a constructor,
Rectangle must provide two methods, called area and perimeter. The
method area must return the integer area of the rectangle, and the
method perimeter must return the integer perimeter of the
rectangle.
You must also write another class,
called Square. As its name suggests, each instance of Square must
represent a square. Along with a constructor, Square must provide
two methods, called area and perimeter. The method area must return
the integer area of the square, and the method perimeter must
return the integer perimeter of the square.
The following driver program shows
examples of how the constructors and methods of Rectangle and
Square must work.
class Shapes
{
public static void main(String[] args)
{
Rectangle wreck = new Rectangle(3,
5); // Make a 3 × 5 rectangle.
System.out.println(wreck.area()); // Print
its area, 15.
System.out.println(wreck.perimeter()); // Print
its perimeter, 16.
Square nerd = new
Square(7); // Make
a 7 × 7 square.
System.out.println(nerd.area()); // Print
its area, 49.
System.out.println(nerd.perimeter() // Print
its perimeter, 28.
}
}
Your classes Rectangle and Square must use the extends keyword,
so they will inherit methods from other classes. Also, each class
must inherit as many of its methods as possible from those other
classes. YOU WILL LOSE POINTS FOR DEFINING A METHOD INSIDE
A CLASS, IF IT COULD HAVE BEEN INHERITED FROM ANOTHER
CLASS!
Here’s a hint about how to write the
constructors for Rectangle and Square. Suppose that a class
Triangle extends the class Polygon. Then Polygon is the
superclass of Triangle. The keyword super can be used to
call the constructor that belongs to a superclass. For example,
Triangle’s constructor, which takes the lengths of a triangle’s
three sides, might look like this.
public Triangle(int a, int b, int c)
{
super(3, a, b, c);
}
It uses Polygon’s constructor to make a polygon with 3 sides, whose lengths are a, b, and c. If super is used in this way, then it must be the first statement in the constructor. You don’t have to write Triangle—this was only an example!
3. Deliverables.
The file tests6.java contains a driver class whose a main method
performs 12 public tests, worth 1 point each. Each public
test is a call to println, along with a comment that shows what it
must print. To grade your work, the TA’s will run the public tests
using your Rectangle and Square classes. If a public test behaves
exactly as it should, then you will receive 1 point for it.
In addition, the TA’s will do 5
private tests on your Rectangle and Square classes. You
will not be told what the private tests are, but they are worth 2
points each, and they determine if Rectangle and Square have
inherited as many methods as possible. The TA’s will do the same
private tests for all students, and these tests will be made public
only after all the work for this lab has been graded.
Your score for this lab is the sum
of the points you get for the public tests, and the points you get
for the private tests, for a maximum of 22 points. Here is what you
must turn in.
Source code for the class Rectangle. Its instances must provide the methods side, area and perimeter. These methods are not necessarily defined in Rectangle: some or all may be inherited.
Source code for the class Square. Its instances must provide the methods side, area and perimeter. These methods are not necessarily defined in Square: some or all may be inherited.
Here are the implemented classes, Rectangle extends Polygon class and Square extends Rectangle class.

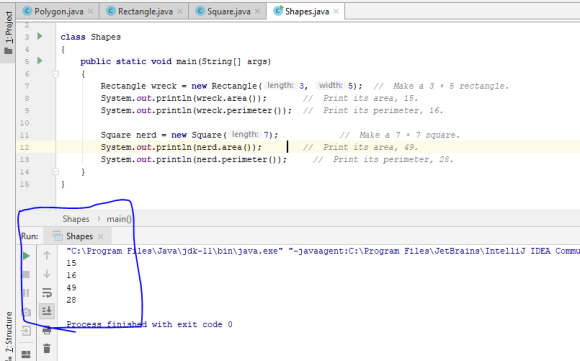

I ran the Shapes driver class and the output is coming as expected,
Let me know for any questions or changes. Will be happy to assist you !!
===================================================================
public class Rectangle extends Polygon { public Rectangle(int length, int width) { super(4, length, width,length,width); } public int area() { return side(0) * side(1); } }
===================================================================
public class Square extends Rectangle { public Square(int length){ super(length,length); } }
===================================================================
