Question

In: Physics

A Stirling Engine uses 8.1 x 10^-3 mol of an ideal gas, operates between hot and...

A Stirling Engine uses 8.1 x 10^-3 mol of an ideal gas, operates between hot and cold heat reservoirs of temperatures 95 degree celsius and 24 degree celsius, and runs at a rate of 0.7 cps. Q) What is the net transfer into the gas during in cycle?

Solutions

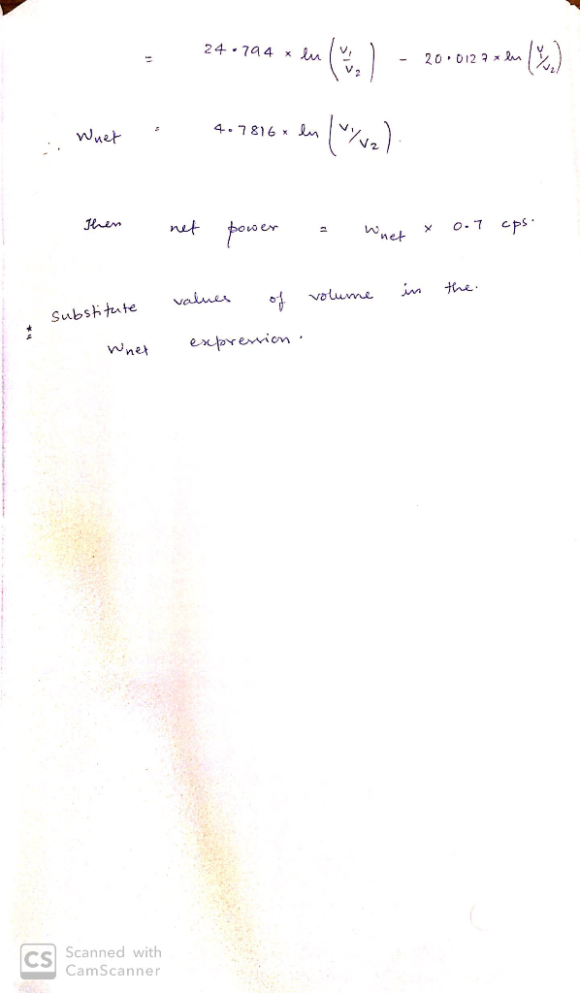

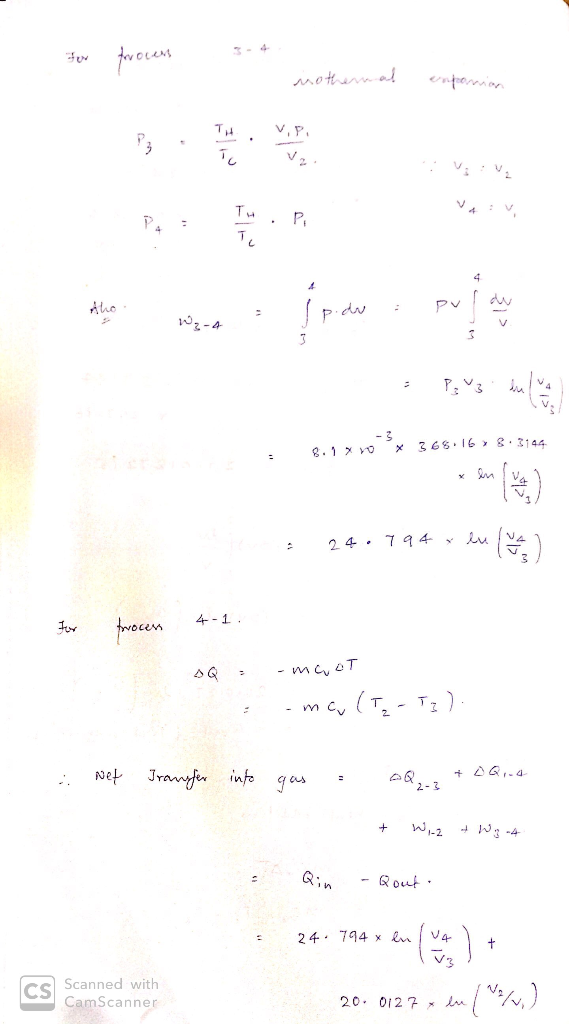

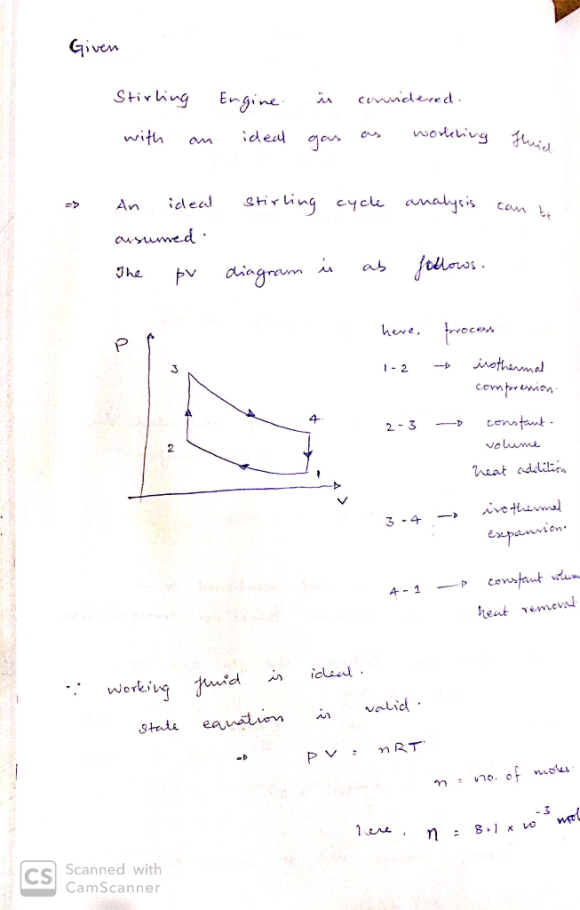

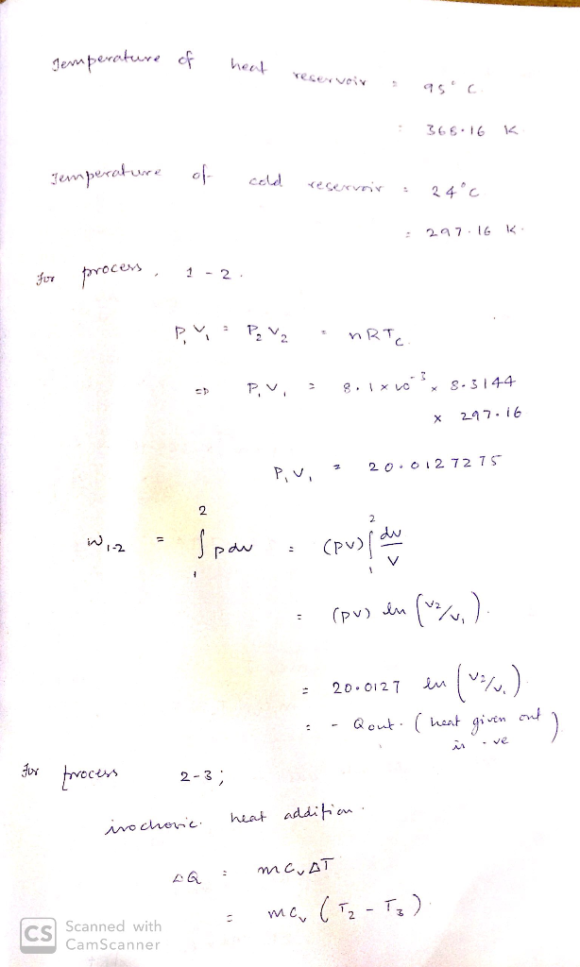

Expert Solution
