Problem 24.96 Infinite positively charged sheet 1 has uniform surface charge density σ1 = +2.0 nC/m2...

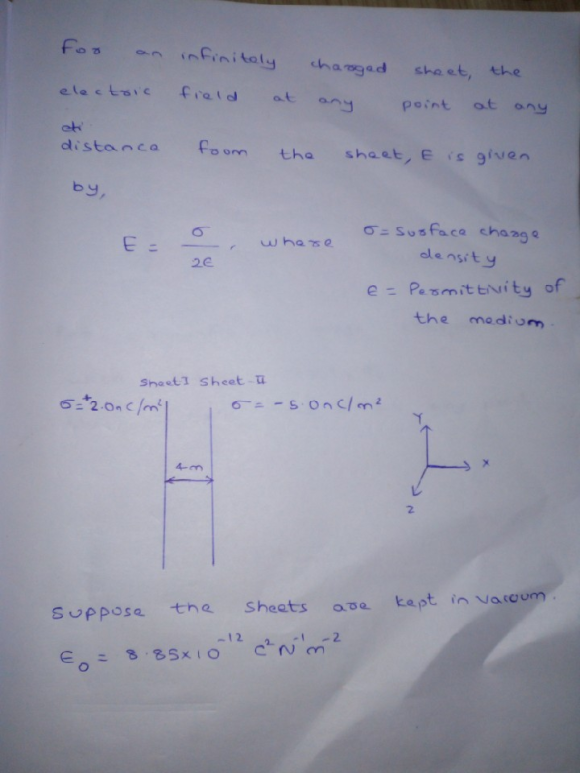

Problem 24.96 Infinite positively charged sheet 1 has uniform surface charge density σ1 = +2.0 nC/m2 and is located in the yz plane of a Cartesian coordinate system. Infinite negatively charged sheet 2 is parallel to sheet 1 and has uniform surface charge density σ2 = -5.0 nC/m2 . Sheet 2 is 4 m to the right of sheet 1 along the +x axis.

Part A

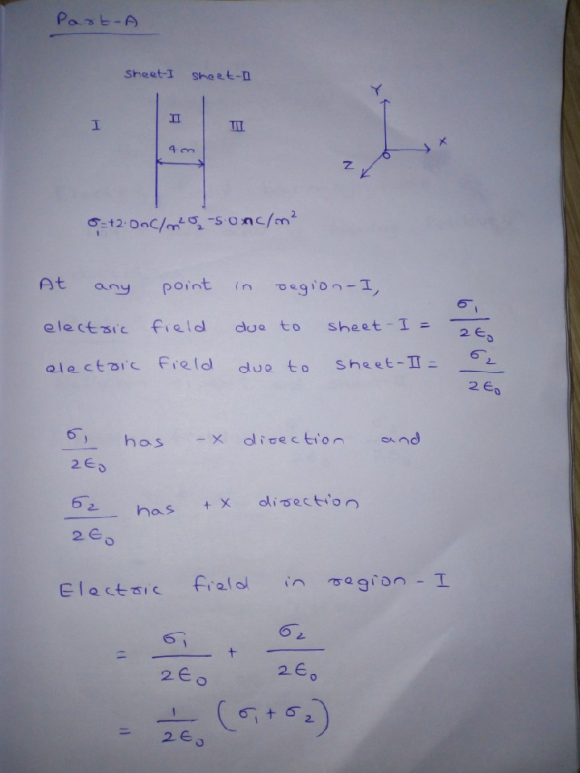

Determine the magnitude and direction of the electric field in region I, to the left of sheet 1.

Express your answer with the appropriate units. Enter positive value if the field is in positive x direction and negative value if the field is in negative x direction.

EI

EI

=

339StartFraction Upper N Over Upper C EndFractionNC

SubmitPrevious AnswersRequest Answer

Incorrect; Try Again; 4 attempts remaining

Part B

Determine the magnitude and direction of the electric field in region II, between the two sheets.

Express your answer with the appropriate units. Enter positive value if the field is in positive x direction and negative value if the field is in negative x direction.

EII

EII

=

nothingnothing

SubmitRequest Answer

Part C

Determine the magnitude and direction of the electric field in region III, to the right of sheet 2.

Express your answer with the appropriate units. Enter positive value if the field is in positive x direction and negative value if the field is in negative x direction.

EIII

EIII

=

nothingnothing

Solutions

Expert Solution

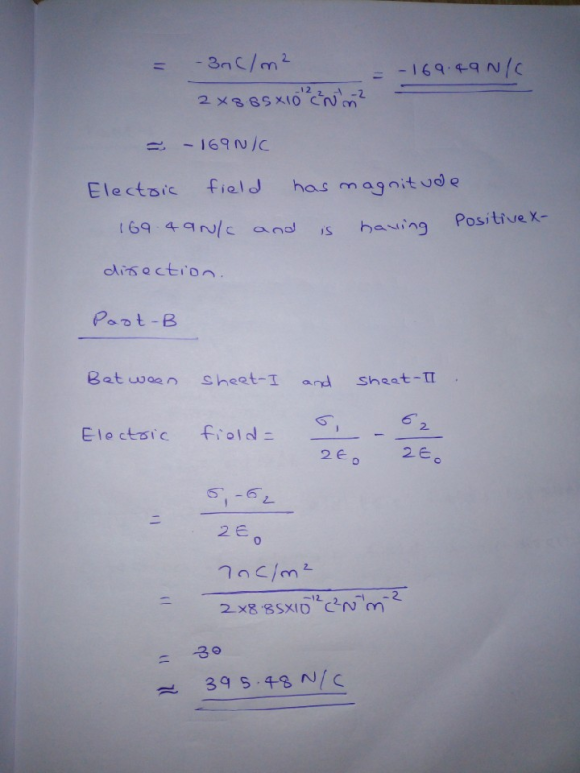

Part A- Electric field has magnitude 169.49N/C. Direction is positive X direction.

Part B- Electric field has magnitude 395.48N/C. Direction is positive X direction.

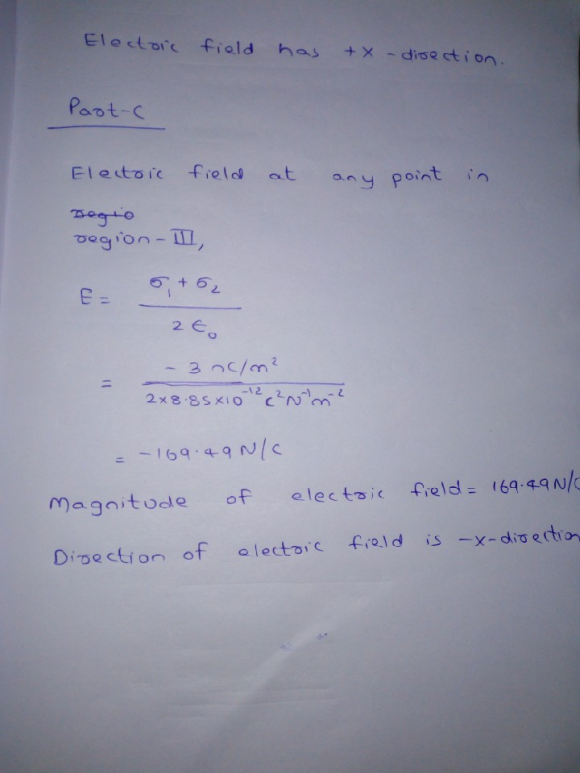

Part C- Electric field has magnitude 169.49N/C. Direction is negative X direction.
