Question

In: Electrical Engineering

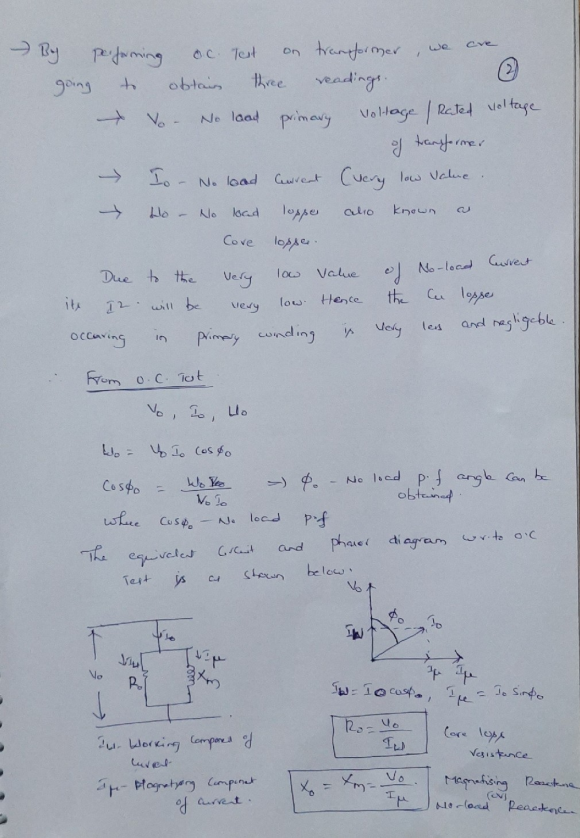

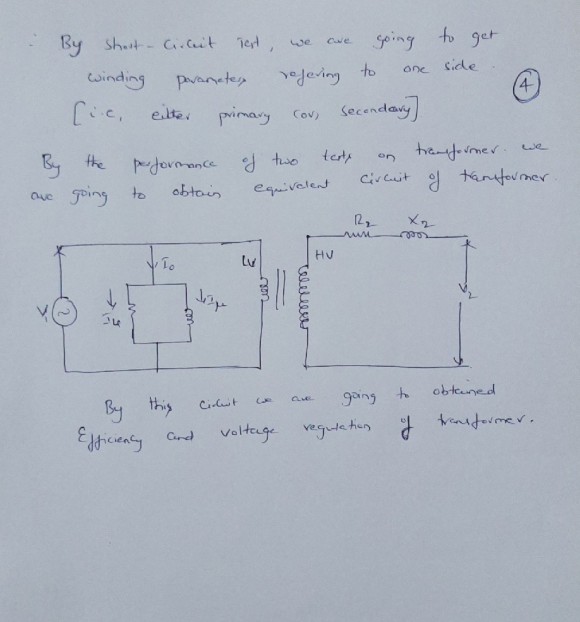

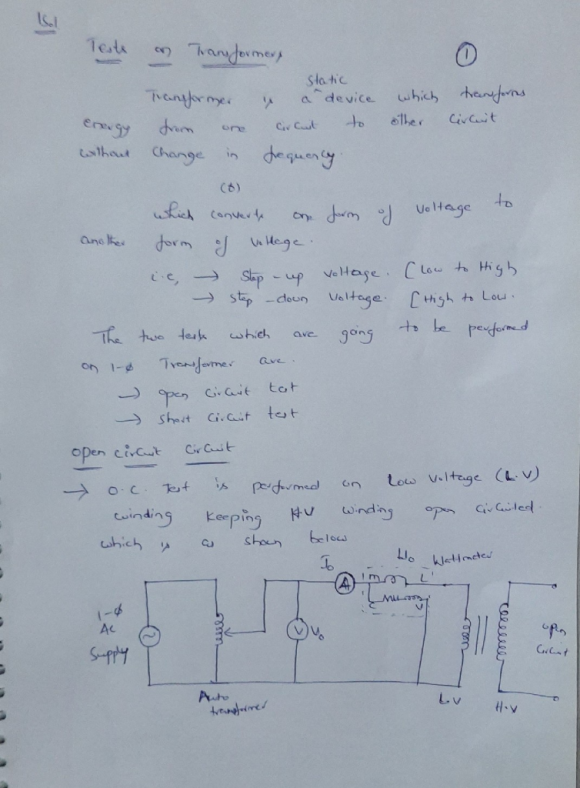

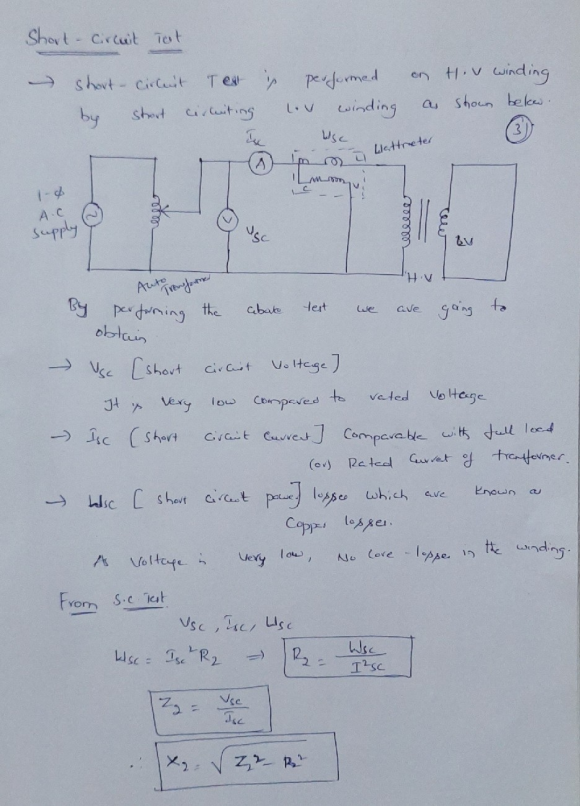

Theory about the open and short circuit test about the transformer?

Theory about the open and short circuit test about the transformer?

Solutions

Expert Solution
