Question

Write a python program.
The function protocol implements the functionality of the diagnostic protocol. The main idea of this function is to call the functions that you
have already implemented in the previous questions. See below for an explanation of exactly what is
expected.
def protocol(my_symptoms: Tuple[Set], all_patients_symptoms: Dict[str, Tuple[Set]],
all_patients_diagnostics: Dict[int, str]) -> str:

'''Return the diagnostic for my_symptoms based on the dictionary of patients symptoms
(all_patients_symptoms) and the dictionary of patients diagnostics
(all_patients_diagnostics).
Hint: This function selects the patients with the highest similarity between the their
symptoms and my_symptoms (by calling the function similarity_to_patients). Then, it
reports the the most frequent diagnostic from the patients with the highest symptoms
similarity (by calling the function getting_diagnostics).
>>>protocol(yang, all_patients_symptoms, all_patients_diagnostics)
'cold'
'''

Answer 1

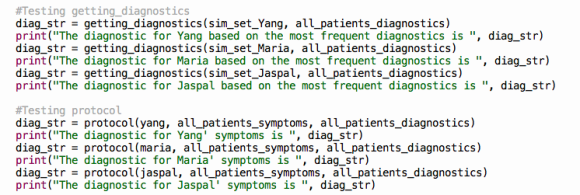

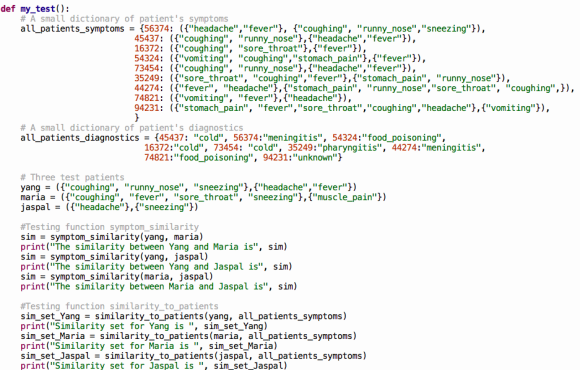

Use the function my_test to evaluate the code

ANSWER:

I have provided the properly commented  and indented code so you can easily copy the code as well as check for correct indentation.
I have provided the output image of the code so you can easily cross-check for the correct output of the code.
Have a nice and healthy day!!

CODE

# patients symptoms
all_patients_symptoms = {56374: ({"headache","fever"},{"coughing","runny_nose","sneezing"}),
                        45437: ({"coughing","runny_nose"},{"headache","fever"}),
                        16372: ({"coughing","sore_throat"},{"fever"}),
                        54324: ({"vomiting","coughing","stomach_pain"},{"fever"}),
                        73454: ({"coughing","runny_nose"},{"headache","fever"}),
                        35249: ({"coughing","sore_throat","fever"},{"stomach_pain","runny_nose"}),
                        44274: ({"fever","headache"},{"stomach_pain","runny_nose","sore_throat","coughing"}),
                        74821: ({"vomiting","fever"},{"headache"}),
                        94231 : ({"stomach_pain","fever","sore_throat","coughing","headache"},{"vomiting"})}

# patient's diagonstics
all_patients_diagnostics = {45437: "cold", 56374: "meningitis", 54324:"food_poisoning",16372:"cold",
                           73454: "cold", 35429:"pharyngitis", 44274:"meningitis",74821:"food_poisoning",
                           94231:"unknown"}
# three test patients
yang = ({"coughing","runny_nose","sneezing"}, {"headache","fever"})
maria = ({"coughing","fever","sore_thorat","sneezing"},{"muscle_pain"})
jaspal = ({"headache"},{"sneezing"})

# defining sample function similarity_to_patients
def similarity_to_patients(my_symptoms, all_patients_symptoms) -> str:
    # defining empty dict to record similarity of patients
    similarity_dict = {}
    # looping through all_patients_symptoms dict
    for key in all_patients_symptoms:
        # calling function symptom_similarity to fetch similarity
        similarity_dict[key] = symptom_similarity(my_symptoms,all_patients_symptoms[key])

    # returning similarity_dict
    return similarity_dict

# sample function getting_diagnostics
def getting_diagnostics(similarity_dict, all_patients_diagnostics):
    # fetching most similar symptoms from similarity_dict
    # using function max and fetching key Id having highest similarity value
    # using key argument of max function to do so
    max_similar_id = max(similarity_dict, key = lambda x:similarity_dict[x])

    # returning diagnostic of fetched max_similar_id
    return all_patients_diagnostics[max_similar_id]

# Q4. function protocol
# using all sample defined functions
def protocol(my_symptoms, all_patients_symptoms,
                          all_patients_diagnostics) -> str:
    # calling function similarity_to_patients and fecthing similarity_dict of patient
    similarity_dict = similarity_to_patients(my_symptoms, all_patients_symptoms)

    # calling function getting_diagnostics and fetching most similar dignostic
    similar_diag = getting_diagnostics(similarity_dict, all_patients_diagnostics)

    # returning value
    return similar_diag

# testing function protocol
diag_str = protocol(yang, all_patients_symptoms, all_patients_diagnostics)
print("response: ",diag_str)

OUTPUT IMAGE

i hope it helps..
