Question

Assingment: for c++

A magic square is an n x n matrix in which each of the integers 1, 2, 3...n² appears exactly once and all column sums, row sums, and diagonal sums are equal. For example, the attached table shows the values for a 5 x 5 magic square in which all the rows, columns, and diagonals add up to 65.

The following is a procedure for constructing an n x n magic square for any odd integer n. Place 1 in the middle of the top row. Then, after integer k has been placed, move up one row and one column to the right to place the next integer k+1 unless one of the following occurs:

-If the move takes you above the top row in the jth column, move to the bottom of the jth column and place k+1 there.

-If the move takes you outside to the right of the square in the ith row, place k+1 in the ith row on the left side.

-If the move takes you to an already filled square or if you move out of the square at the upper right-hand corner, place k+1 immediately below k.

Write a program to create a magic square. Get the size of the square (an odd integer) from the user. You must use a static matrix for the magic square. A solution using a dynamic matrix is unacceptable.

My code works, but the diagonals do not work, any help would be great, with documentation.

Here's my code:

#include
#include
using namespace std;

int main()
{
int n; //variable for array size (n x n)

cout<< "Enter an odd integer less than 50: ";
cin>>n;

int MagicSq[50][50];

// Clears the array of any unwanted data
for(int x = 0; x < n; x++)
{
for(int y = 0; y < n; y++)
{
MagicSq[x][y] = 0;
}
}

// the variables being used for the arrays
int Row,
Col;
int x =0 ;
int y= n / 2;

// Filling in each element of the array using the magic array
for ( int value = 1; value <= n*n; value++ )
{
MagicSq[x][y] = value;
// Finding the next cell
Row = (x - 1) % n;
Col = (y + 1) % n;

// If the cell is empty
if ( MagicSq[Row][Col] == 0 )
{
x = Row;
y = Col;
}
else
{
// The cell is full, so use the cell above the previous one.
x = (x + 1 + n) % n;
}

}

for(int i=0; i {
for(int j=0; j cout << MagicSq[i][j]<<" ";
cout << endl;
}
return(0); //End
}

Answer 1

#include <iostream>

using namespace std;
void generateSquare(int n){

int MagicSq[50][50];

// Clears the array of any unwanted data
for(int x = 0; x < n; x++)
{
for(int y = 0; y < n; y++)
{
MagicSq[x][y] = 0;
}
}
{
MagicSq[n][n];

// Initialize position for 1
int i = n/2;
int j = n-1;

// One by one put all values in magic square
for (int num=1; num <= n*n; )
{
if (i==-1 && j==n) //3rd condition
{
j = n-2;
i = 0;
}
else
{
// 1st condition helper if next number
// goes to out of square's right side
if (j == n)
j = 0;

// 1st condition helper if next number
// is goes to out of square's upper side
if (i < 0)
i=n-1;
}
if (MagicSq[i][j]) //2nd condition
{
j -= 2;
i++;
continue;
}
else
MagicSq[i][j] = num++; //set number

j++; i--; //1st condition
}

// Print magic square

for (i=0; i<n; i++)
{
for (j=0; j<n; j++)
cout << MagicSq[i][j]<<" ";
cout << endl;
}
} }

int main()
{
int n; //variable for array size (n x n)

cout<< "Enter an odd integer less than 50: ";
cin>>n;

generateSquare (n);
return 0;

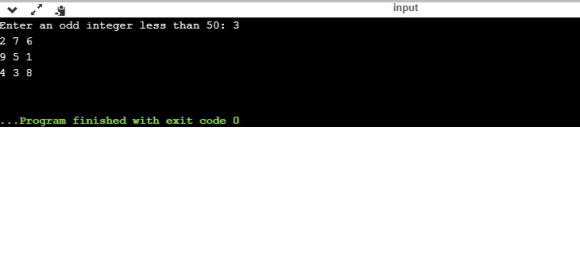

} output2
