Two small spheres are suspended by strings of length L = 1.20 m from a ceiling...

Two small spheres are suspended by strings of length L = 1.20 m from a ceiling at points d = 3.20 m apart. They have equal mass of m = 8.00 kg and equal and opposite charge of q = 1.40E-4 C. Calculate the angle or angles the strings make from vertical at equilibrium.

Expert Solution

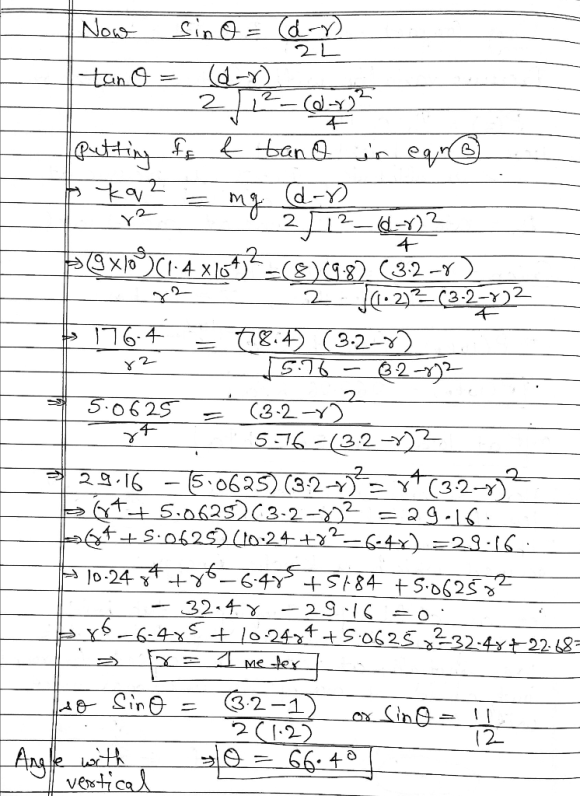

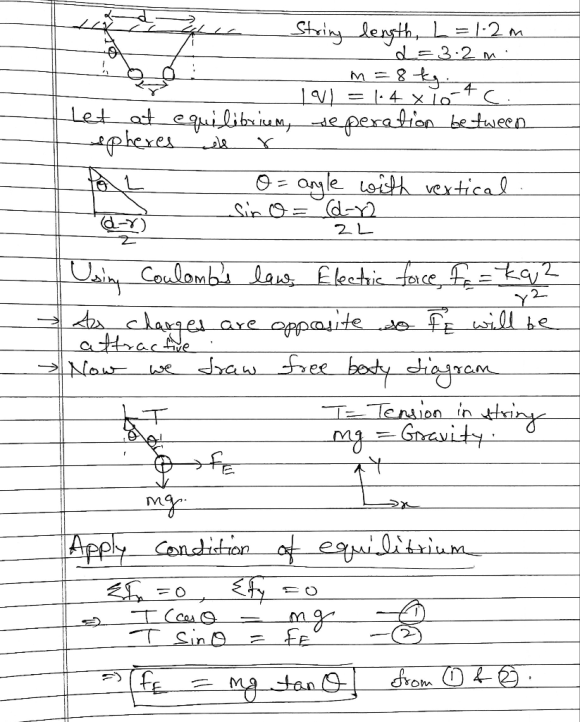

Here we apply Coulomb's law and condition for static equilibrium.

genius_generous answered 3 days ago

Two metal spheres of identical mass m = 3.60 g are suspended by light strings 0.500...

Two metal spheres of identical mass m = 3.60 g are suspended by light strings 0.500 m in length. The left-hand sphere carries a charge of 0.765 µC, and the right-hand sphere carries a charge of 1.61 µC. What is the equilibrium separation between the centers of the two spheres?

Two small metallic spheres, each of mass m = 0.210 g, are suspended as pendulums by...

Two small metallic spheres, each of mass m = 0.210 g, are suspended as pendulums by light strings of length L as shown in the figure below. The spheres are given the same electric charge of 6.8 nC, and they come to equilibrium when each string is at an angle of ? = 4.85

A thin, uniform bar of length L and mass M is suspended horizontally at rest. It...

A thin, uniform bar of length L and mass M is suspended horizontally at rest. It is suddenly released and, at the same instant, it is struck a sharp blow vertically upwards at one end – the duration of the impulse is negligibly short. (a) Explain the meaning of the equation Fnet = Macom (com stands for center of mass). If we call z the vertical direction, write an equation for zCOM(t), draw a sketch of zCOM(t) vs t, and...

4. Consider bit strings with length l and weight k (so strings of l 0’s and...

4. Consider bit strings with length l and weight k (so strings of l 0’s and 1’s, including k 1’s). We know how to count the number of these for a ﬁxed l and k. Now, we will count the number of strings for which the sum of the length and the weight is ﬁxed. For example, let’s count all the bit strings for which l + k = 11. (a) Find examples of these strings of diﬀerent lengths. What...

2) Two charged spheres separated by 2m are suspended vertically from a horizontal beam by insulating...

2) Two charged spheres separated by 2m are suspended vertically from a horizontal beam by insulating strings. The spheres have the same mass 4kg. The charges on the spheres are 2 ?C and -3 ?C. (a) Calculate the electric force between the charges. Give both magnitude and direction. (b) Determine the electric potential (Volts) at a point midway between the charges. (c) What direction are the electric field lines for each charge?

An object of 7kg is lit and it becomes suspended at rest from the ceiling. It...

An object of 7kg is lit and it becomes suspended at rest from the ceiling. It then explodes into 3 parts. Part 1 has a mass of 2.7kg and is traveling 3.1m/s at 22 degrees above x-axis. Part 2 has a mass of 1.75kg and moves 4.4 m/s at 53 degrees above x-axis. Determine the mass, velocity, and direction of the 3rd piece using momentum. Thank you.

A uniform rod of length 2.00 m and mass 5.00 kg is suspended by two ropes...

A uniform rod of length 2.00 m and mass 5.00 kg is suspended by two ropes of negligible mass. The rope at the lower end is horizontal. The rope at the upper end makes an angle φ = 30.0◦ with the vertical. φ θ (a) Draw a free body diagram for the rod. (b) What is the tension in the upper rope? (c) What is the tension in the lower (horizontal) rope? (d) What is the angle θ the rod...

Two small spheres, each of mass m and of negligible radius, are connected by a massless...

Two small spheres, each of mass m and of negligible radius, are connected by a massless rigid rod of length d such that the there is length d between the centers of masses of the two spheres, and the centers of masses of the spheres and the center of mass of the rod are in the same plane. 1. The moment of inertia about an axis perpendicular to the connecting rod and through its center is: a. 0 b. 0.25md2...

Part A Two identical steel balls, each of mass 2.40 kg, are suspended from strings of...

Part A Two identical steel balls, each of mass 2.40 kg, are suspended from strings of length 33.0 cm so that they touch when in their equilibrium position. We pull one of the balls back until its string makes an angle θ = 60.0° with the vertical and let it go. It collides elastically with the other ball. How high will the other ball rise? Part B Suppose that instead of steel balls we use putty balls. They will collide...

Two identical small insulating balls are suspended by separate 0.293 m threads that are attached to...

Two identical small insulating balls are suspended by separate 0.293 m threads that are attached to a common point on the ceiling. Each ball has a mass of 7.96E-4 kg. Initially the balls are uncharged and hang straight down. They are then given identical positive charges and, as a result, spread apart with an angle of 34.6 ° between the threads. Determine the charge on each ball.
