Question

In: Computer Science

This assignment tests your understanding of abstract classes, inheritance, and requirements modeling using class-based methods. The...

This assignment tests your understanding of abstract classes, inheritance, and requirements modeling using class-based methods. The assignment scenario involves an abstract vehicle class and concrete subclasses Jeep and Ford. The vehicle class has the following variables (manufacturer, language), and methods (getManufacturer( ), and getLanguage( )). The manufacturer builds a specific vehicle (a Jeep and a Ford). The manufacturer will notify the consumer class that a Jeep and a Ford are available for purchase. The consumer class purchases the Jeep. Your

Tasks:

a) Draw a Use Case diagram based on the above scenario

b) Draw a UML Class diagram based on the above scenario

Solutions

Expert Solution

USECASEDIAGRAM:

  • A use case diagram shows a set of use cases and actors and their relationships.
  • we apply use case diagram to illustrate the static use case view of a system

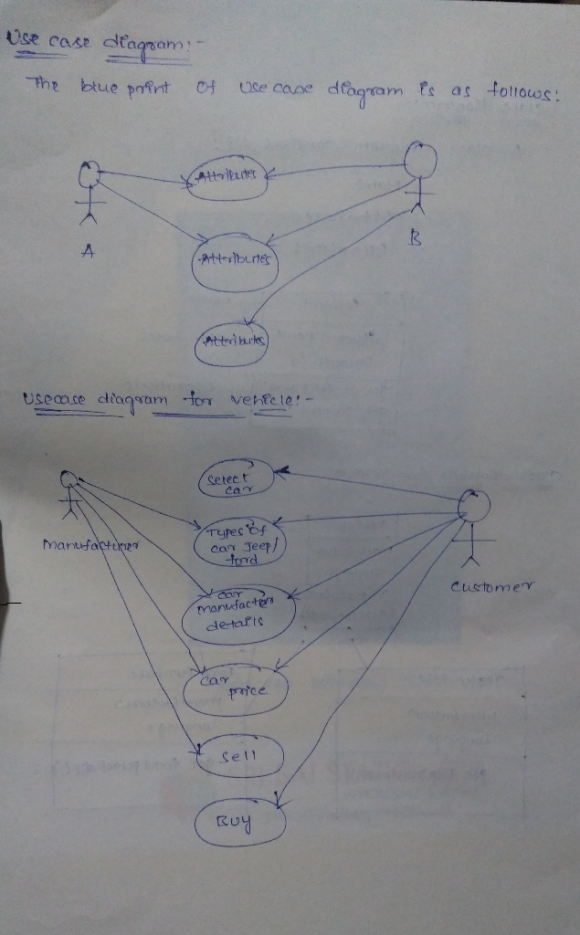

use case diagram for above scenario is as follows:

class diagram:

  • we use class diagrams to illustrate the static design view of a system.
  • A class diagram shows a set of classes, interfaces, and collaborations their relationships.

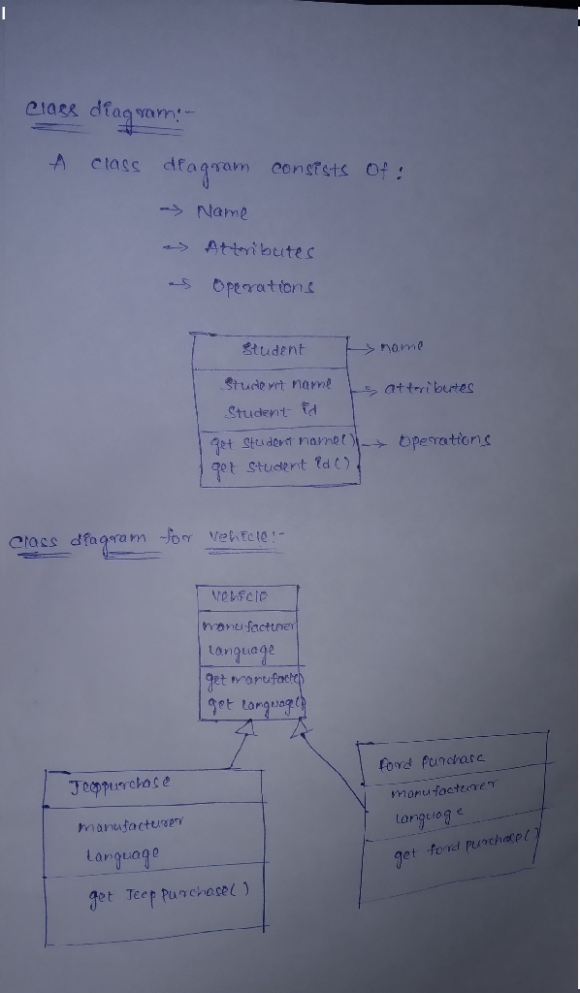

class diagram for above scenario is as follows:
