Question

In: Computer Science

Python.Python.Python. Write a functional program over the automata that accepts odd length binary digits and rejects...

Python.Python.Python. Write a functional program over the automata that accepts odd length binary digits and rejects those that are not. It must include a function called q0 ,q1, accept and reject(). CANNOT USE STRING. OR LENTH.

101 accepted (3 binary digits)

10610 rejected (the number 6 is not a binary number)

101111 rejected (6 digit binary number)

11111 accepted (5 binary digits)

Solutions

Expert Solution

Solution:

Code:

#
# Function to find a odd length binary digits..
#
def isOddLengthBinary(value):
    digit = 0;      #Variable to store single digit
    length = 0;     #Variable to store length

    while (value) :         #Traversing the each digit of value
        digit = value % 10 #Fetching the single digit..
        length = length + 1     #Counting the length..
        if (digit > 1 or digit < 0):    #Invalid case
            return 0
        else:
            value = value / 10;     #Fetch next digit

    if (length % 2 == 0):
        return 0        #Even length..
    else:
        return 1        #Return success..

def main():
    print("\n\n")
    while(1):
        #Read the value from the user..
        value = input(" Enter any integer value : ")
        if(isOddLengthBinary(int(value))):      #Func call..
            print ("\n Accepted\n") #True case
        else:
            print ("\n Rejected\n") #Fail case

if __name__ =='__main__':
    main()                  #calling main function..

-----------------------------------------------------

Code screenshot:

-----------------------------------

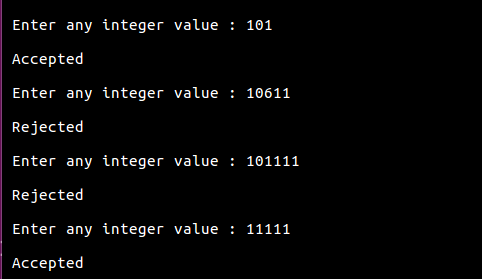

Sample Output:

-------------------------------------

Kindly upvote if you are satisfied with this solution
