Question

In: Computer Science

Write a C program to implement Jacobi iterative method for sovling a system of linear equations....

Write a C program to implement Jacobi iterative method for sovling a system of linear equations. Use the skeleton code.

skeleton code:

/*
   CS288 HOMEWORK 8
   Your program will take in two command-line parameters: n and error
   command: jacobi 5 0.0001
   command: jacobi 10 0.000001
 */
#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <time.h>
#include <math.h>

#define N 100
#define MAX_ITER 10000

int jacobi();
void init();
int convergence();
void srand();
void print_vector();
void print_equation();

float a[N][N], b[N];
float x[N], buf[N];
int n;
float error;

int main(int argc, char **argv){
  int n_iter;                   /* number of iterations */
  n = atoi(argv[1]);
  error = atof(argv[2]);

  init();                  /* initalize a, x0 and b - DO not change */
  n_iter = jacobi();

  return 0;
}

int jacobi(){
  int i,j,k;
  float sum;
  // ...
  // ...
  // ...
  return k;
}

// returns 1 if converged else 0
int convergence(int iter){
  int i,j,k,flag=1;
  // ...
  // ...
  // ...

  return flag;
}

// Try not to change this. Use it as is.
void init(char **argv){
  int i,j,k,flag=0;
  float sum;
  int seed = time(0) % 100;     /* seconds since 1/1/1970 */

  srand(seed);
  for (i=0;i<n;i++) {
    for (j=0;j<n;j++) {
      a[i][j] = rand() & 0x7;
      if (rand() & 0x1) a[i][j] = -a[i][j];
    }
    sum = 0;
    for (j=0;j<n;j++) if(i!=j) sum = sum + abs(a[i][j]);
    if (a[i][i] < sum) a[i][i] = sum + a[i][i];
  }

  for (i=0;i<n;i++) x[i]=1;

  srand(seed);
  for (i=0;i<n;i++){
    b[i]=rand() & 0x7;
    if (rand() & 0x1) b[i] = -b[i];
  }

  print_equation();

}

void print_equation(){
  int i,j;

  printf("A*x=b\n");
  for (i=0;i<n;i++) {
    for (j=0;j<n;j++) printf("%2d ",(int)(a[i][j]));
    printf(" * x%d = %d\n",i,(int)(b[i]));
  }
  printf("\n");
}

void print_vector(float *l){
  int i;
  for (i=0; i<n; i++) printf("%.6f ",l[i]);
  printf("\n");
}

// end of file

Solutions

Expert Solution

Working code implemented in C and appropriate comments provided for better understanding:

Source code for jacobi.c:

/*
CS288 HOMEWORK 8
Your program will take in two command-line parameters: n and error
command: jacobi 5 0.0001
command: jacobi 10 0.000001
*/

#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <time.h>
#include <math.h>

#define N 100
#define MAX_ITER 10000

int jacobi();
void init();
int convergence();
void srand();
void print_vector();
void print_equation();

float a[N][N], b[N];
float x[N], buf[N];
int n;
float error;

int main(int argc, char **argv){
int n_iter;           /* number of iterations */
if(argc!=3){
   printf("wrong # of arguments\n");
   return 0;
}
n = atoi(argv[1]);
error = atof(argv[2]);

init();       /* initalize a, x0 and b - DO not change */

n_iter = jacobi();
printf("# of iteration:%d\n",n_iter);
print_vector(x);

return 0;
}

int jacobi(){
int i,j,k=0;
float sum;
// ...
while(!convergence()&& (k<MAX_ITER)){
   for(i=0;i<n;i++){
       sum=0;
       for(j=0;j<n;j++)
           if(j!=i) sum+=a[i][j]*x[j];
       x[i]=(b[i]-sum)/a[i][i];
   }
   k++;
}
return k;
}

// returns 1 if converged else 0
int convergence(){
int i,j;
float abs,sum;
// ...
for(i=0;i<n;i++){
       sum=0;
       for(j=0;j<n;j++)
           sum+=a[i][j]*x[j];
       abs=sum-b[i];
       if(abs<0)abs=-abs;
       //printf("abs:%f ",abs);
       if(abs>error){
           //printf("\n");
           return 0;
       }
}
//printf("\n");
return 1;
}

// Try not to change this. Use it as is.
void init(char **argv){
int i,j,k,flag=0;
float sum;
int seed = time(0) % 100;   /* seconds since 1/1/1970 */

srand(seed);
for (i=0;i<n;i++) {
for (j=0;j<n;j++) {
a[i][j] = rand() & 0x7;
if (rand() & 0x1) a[i][j] = -a[i][j];
}
sum = 0;
for (j=0;j<n;j++) if(i!=j) sum = sum + abs(a[i][j]);
if (a[i][i] < sum) a[i][i] = sum + a[i][i];
}

for (i=0;i<n;i++) x[i]=1;

srand(seed);
for (i=0;i<n;i++){
b[i]=rand() & 0x7;
if (rand() & 0x1) b[i] = -b[i];
}

print_equation();

}

void print_equation(){
int i,j;

printf("A*x=b\n");
for (i=0;i<n;i++) {
for (j=0;j<n;j++) printf("%2d ",(int)(a[i][j]));
printf(" * x%d = %d\n",i,(int)(b[i]));
}
printf("\n");
}

void print_vector(float *l){
int i;
for (i=0; i<n; i++) printf("%.6f ",l[i]);
printf("\n");
}

// end of file

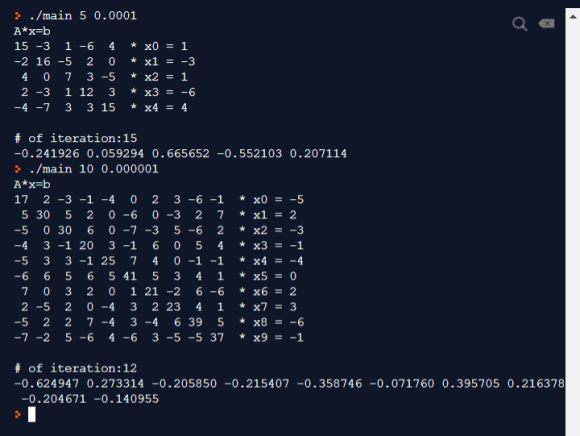

Output Screenshots:

Hope it helps, if you like the answer give it a thumbs up. Thank you.
