a trapezoidal channel with a fall of 6m per km is required to convey a discharge...

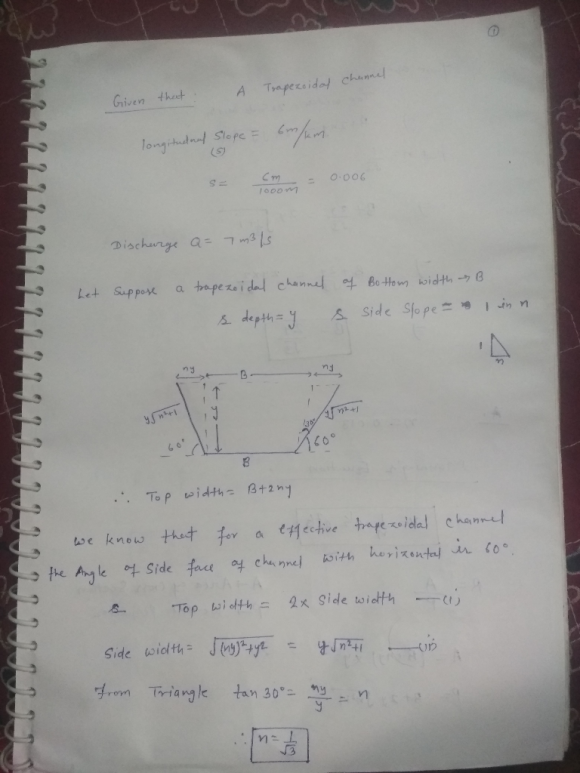

a trapezoidal channel with a fall of 6m per km is required to convey a discharge of 7 m^3/s through terrain consisting of loose soil. perform the following .

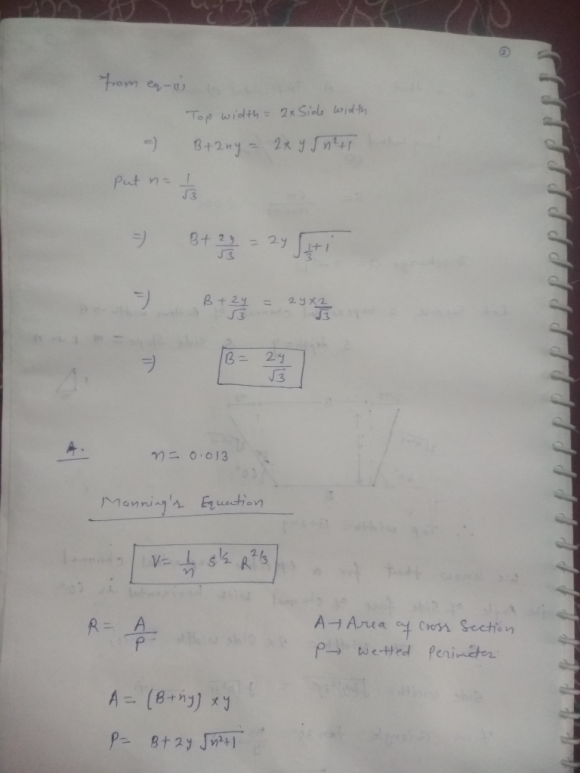

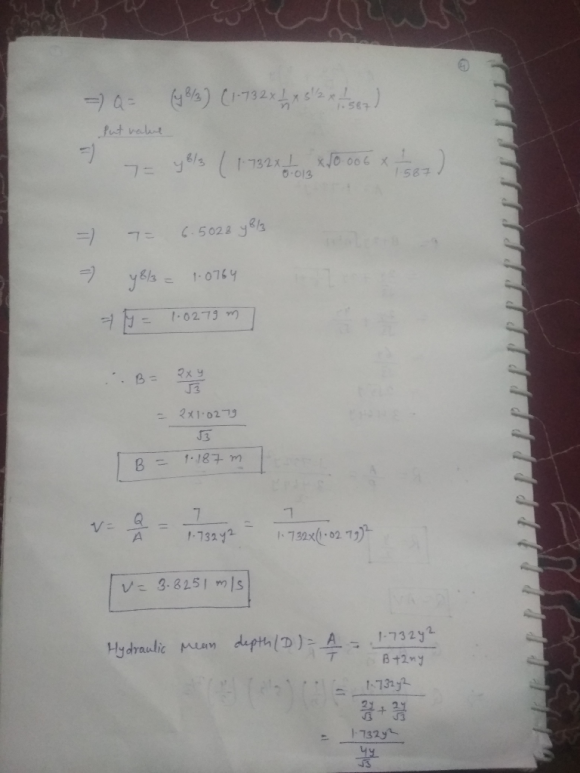

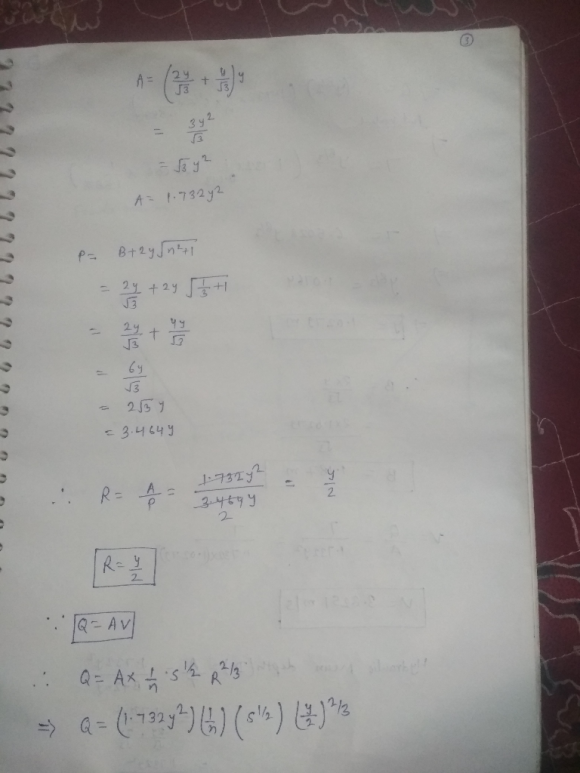

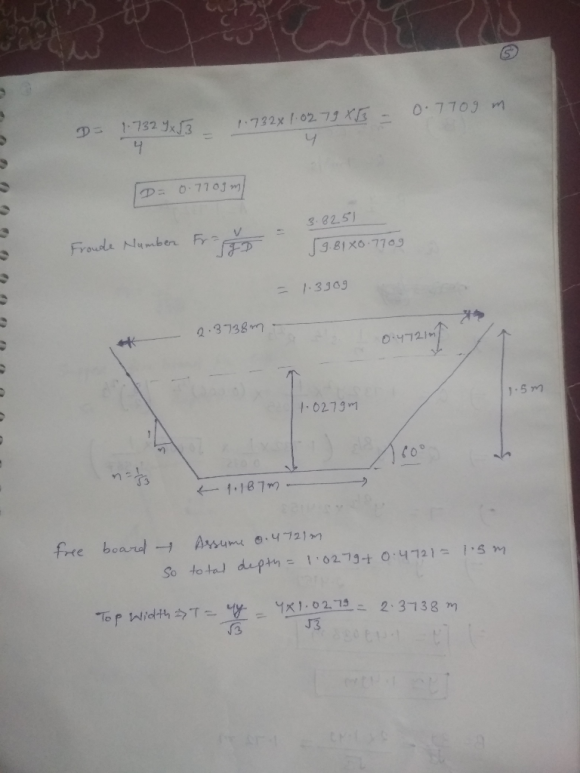

A. design a trapezoidal concrete lined ( n = 0.013) channel.

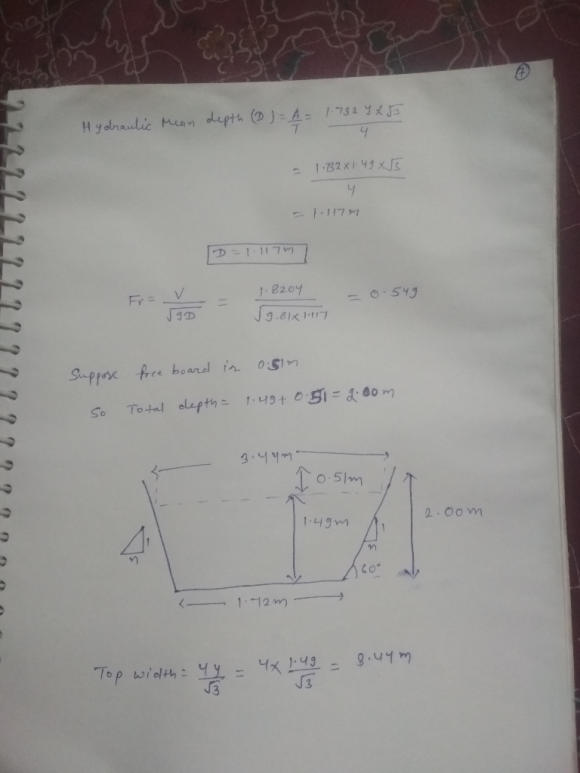

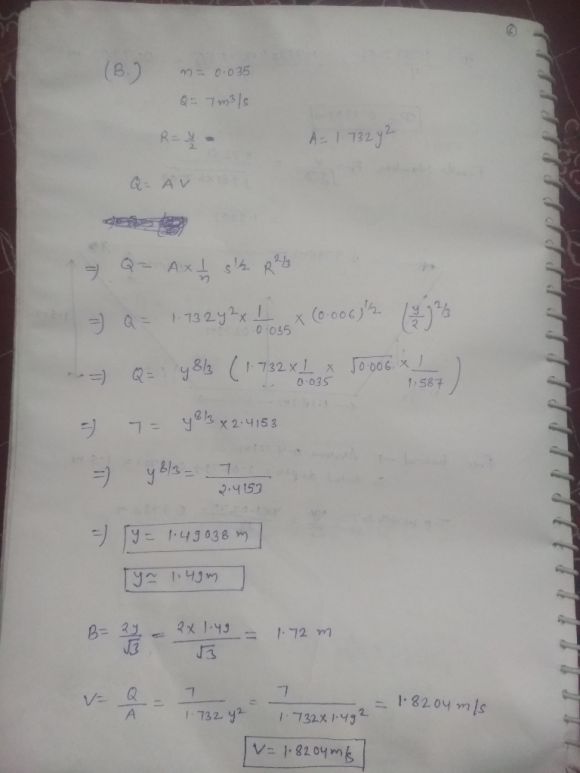

B. design an effective trapezoidal concrete lined with Bermuda grass ( n= 0.035) which has minimum perimeter subject to the low hazard constraint Vy < 0.4m^2/s and v < permissible velocity.

Solutions

Expert Solution
