Write assembly code to implement the expression A = (B + C - D) x (D...

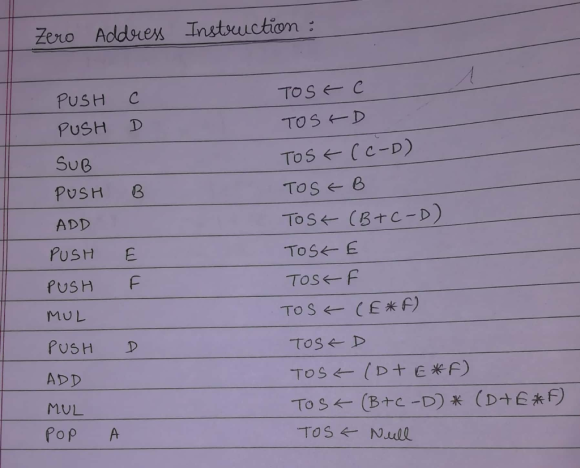

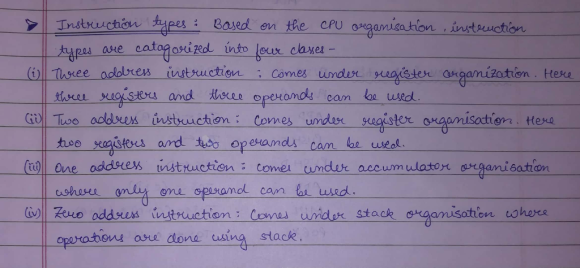

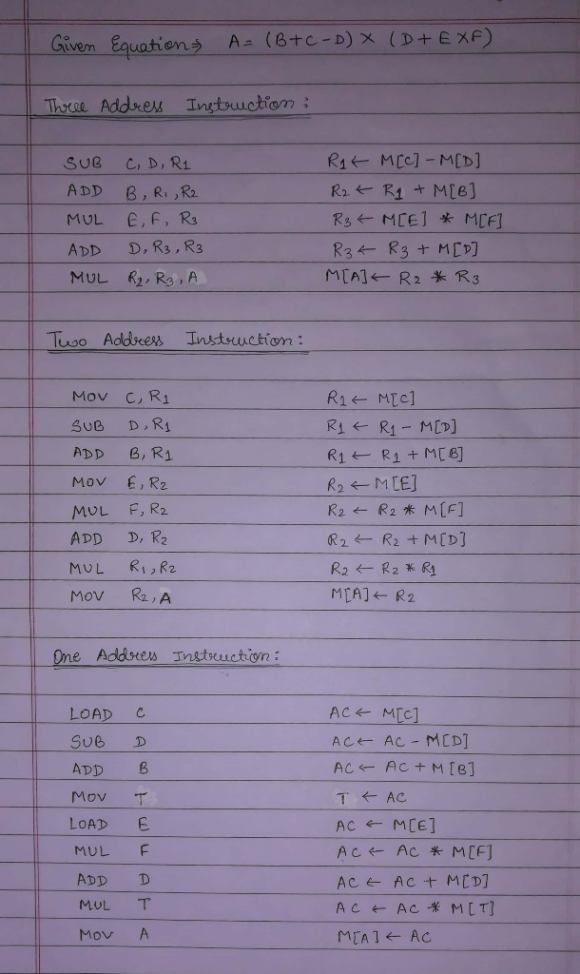

Write assembly code to implement the expression A = (B + C - D) x (D + E x F) on three-, two-, one-, and zero-address machines (do not change the values of the operands). Refer to Chapter 5 Slides 25-28 for the syntax.

Expert Solution

venereology answered 7 months ago

Analyze following logic expression representing a digital system, Z = (A+C)(A'+D')(B'+C'+D) Identify the 0-hazards and write...

Analyze following logic expression representing a digital system, Z = (A+C)(A'+D')(B'+C'+D) Identify the 0-hazards and write down the logic expression for the implementation of static free circuit. Note that you would be requiring three additional loops in K-map.

For the following infix expression, build the corresponding expression tree. 1.1 ab 1.2 a+bc 1.3 a+b*c/d-e...

For the following infix expression, build the corresponding expression tree. 1.1 a*b 1.2 a+b*c 1.3 a+b*c/d-e Perform pre-order and post-order traversal of the above binary expression trees. What relationship exists among these scans and prefix and postfix notation for the expression?

Consider the cross: A/a; b/b; C/c; D/d; E/e x A/a; B/b; c/c; D/d; e/e a) what...

Consider the cross: A/a; b/b; C/c; D/d; E/e x A/a; B/b; c/c; D/d; e/e a) what proportion of the progeny will phenotypically resemble the first parent? b) what proportion of the progeny will genotypically resemble neither parent?

write mips assembly mips assembly (x+a) (bx^2+cx+d) using the pesedo- code with loop ,program should claclute...

write mips assembly mips assembly (x+a) (bx^2+cx+d) using the pesedo- code with loop ,program should claclute six T[i] and display aproper message about roots .the the program should store all T[i] as memory array a = [1, 1, 1, 1, 1, 1]; b = [1, 2, 4, 8, 16, 32]; c = [-6, -4, -2, 2, 4, 6]; d = [-1, -3, -5, -7, -9, -11]; for (i=0 ; i<=6; i++) { T[i] =-4 *b [i] * d[i] +c[i] *...

1.Write a new expression similar to the following : E1= a+bc+(de+f)*g a)Convert your expression to...

1.Write a new expression similar to the following : E1= a+b*c+(d*e+f)*g a)Convert your expression to postfix form. b) Trace the algorithm Postfix on slide 38 using your expression. 2.Write a new expression similar to the following : E2= 6*((5+(2+3)*8)+3) Convert your expression to postfix form. Trace EvalPostfix algorithm on slide 53 using your expression. 3.Write a program that receives some input values and a ) Displays these values by pointers, c)Displays their memory addresses.

Write the MIPS assembly version of this C code: int weird(char[] s, int x) { int...

Write the MIPS assembly version of this C code: int weird(char[] s, int x) { int i; for (i = 0; i < x; i++) { if (s[i] == ‘A’) { return power(10, i); } } return -1; } int power(int base, int i) { int j = 0; while (j < base) { base = base * base; j++; } return base; }

write a program that evaluates the following arithmetic expression: ((A+B)/C)*((D-A)+E). Assign test values to the variables...

write a program that evaluates the following arithmetic expression: ((A+B)/C)*((D-A)+E). Assign test values to the variables and display the resulting value.

Let A = {a, b, c, d} and B = {b, d, e}. Write out all...

Let A = {a, b, c, d} and B = {b, d, e}. Write out all of the elements of the following sets. (a) B ∩ ∅ (b) A ∪ B (c) (A ∩ B) × B (d) P(A\B) (e) {X ∈ P(A) | |X| ≤ 3}

- sparc assembly - *Write a program that takes four 32-bit integers (A,B,C,D) in hexadecimal form...

- sparc assembly - *Write a program that takes four 32-bit integers (A,B,C,D) in hexadecimal form and calculates A*B + C*D. (Assumption: User input is 32-bit 0 or positive. The result is expressed in 64 bits.) [result example] bash $ assm Hex value? ffffffff Hex value? 8 Hex value? ffffffff Hex value? 8 Result is 0000000f fffffff0

Write MIPS assembly code for the following C code. for (i = 10; i < 30;...

Write MIPS assembly code for the following C code. for (i = 10; i < 30; i ++) { if ((ar[i] > b) || (ar[i] <= c)) ar[i] = 0; else ar[i] = a; }
