1. Why is there an electric field in a wire carrying a current if the wire...

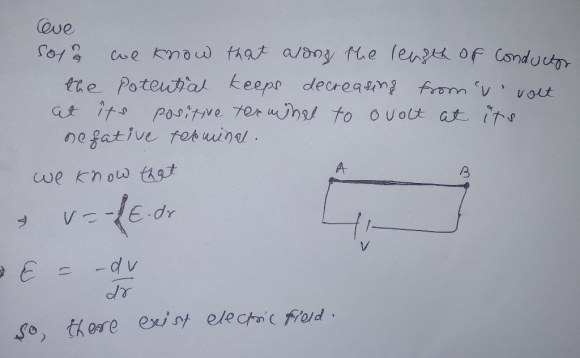

1. Why is there an electric field in a wire carrying a current if the wire is a conductor?

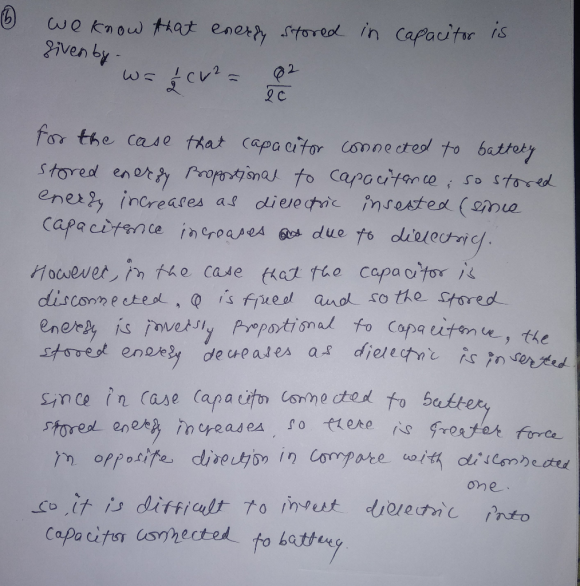

2. Which is easier and why, inserting a dielectric into a charged capacitor that is either connected or not connected to a battery?

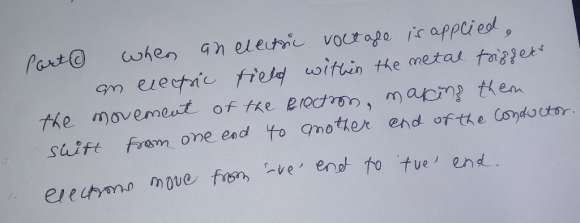

3. Describe the motion of electrons moving through a conductor.

Solutions

Expert Solution
