Figure P30.23 is a cross-sectional view of a coaxial cable. The center conductor is surrounded by...

Figure P30.23 is a cross-sectional view of a coaxial cable. The center conductor is surrounded by a rubber layer, which is surrounded by an outer conductor, which is surrounded by another rubber layer. In a particular application, the current in the inner conductor is I1 = 1.10 A out of the monitor, and the current in the outer conductor is I2 = 2.84 A into the monitor. Determine the magnitude and direction of the magnetic field at point a.

Solutions

Expert Solution

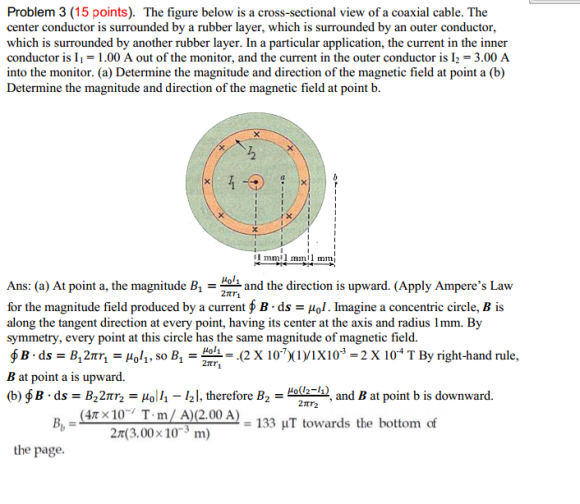

Here is what I solved before, please modify the figures as per your question. Please let me know if you have further questions. Ifthis helps then kindly rate 5-stars.


Related Solutions

The coaxial cable shown in Figure on the right consists of a solid inner conductor of...
The coaxial cable shown in Figure on the right consists of a solid inner conductor of radius a and a hollow outer conductor of inner radius b and thickness c. The two-carry equal but opposite currents I, uniformly distributed. Find expressions for the magnetic field as a function of radial position r a) within the inner conductor (10 pts) b) between inner and outer conductors (5 pts) c) beyond the outer conductor (5 pts)
Consider a cylindrical coaxial cable. The center conductor is solid with radius R, while the outer...
Consider a cylindrical coaxial cable. The center conductor is solid with radius R, while the outer conductor is hollow with inner radius a and outer radius b, Both conductors have the same total current I (of uniform current density), but moving in the opposite direction of each other. Find the magnitude of the magnetic field as a function of r (where r=0 at the central axis) in the interval a is less than or equal to r is less than...
Consider an infinitely long, straight coaxial cable consisting of a homogeneous cylindrical center conductor with radius...
Consider an infinitely long, straight coaxial cable consisting of a homogeneous cylindrical center conductor with radius a and a surrounding conductive tube (shield) with inner radius b. The space between the center conductor and the screen is filled with a dielectric with er (epsilon r) = 1. In the inner conductor, a direct current I is distributed evenly over the cross section. In the outer conductor there is a corresponding return current. On the surface of the inner conductor there...
A coaxial cable consists of a long cylindrical copper wire of radius r1 surrounded by a...
A coaxial cable consists of a long cylindrical copper wire of radius r1 surrounded by a cylindrical insulating shell of outer radius r2 . A final conducting cylindrical shell of outer radius r3 surrounds the insulating shell. The wire and conducting shell carry equal but opposite currents I uniformly distributed over their volumes. What is the current density j(r) for all r? Find formulas for the magnetic field in each of the regions.
A very long coaxial cable consists of a solid cylindrical inner conductor of radius 3.8mm ,...
A very long coaxial cable consists of a solid cylindrical inner conductor of radius 3.8mm , surrounded by an outer cylindrical conductor with inner radius 7mm , and outer radius 9.3mm . The region between the two conductors is filled with a waxlike insulating material to keep the conductors from touching each other. The inner conductor carries a current 4.65A , into the page, while the outer conductor carries a current 4.6A , out of the page. Part A Use...
Coaxial cable. The inner cable has a radius R1 and carries D, a current per cross...
Coaxial cable. The inner cable has a radius R1 and carries D, a current per cross sectional area. The outer cable is a sheath cable, very thin, and carries an equal total current but in the opposite direction at a radius R2. There is a spacer between the two cables and a rubber coating on the outside for safety purposes. (Give answers in terms of R1, R2, D, and universal constants, plus r only when specified) a) Determine the total...
The block of glass (n = 1.5) shown in cross section in Figure 1 is surrounded...
The block of glass (n = 1.5) shown in cross section in Figure 1 is surrounded by air. A ray of light enters the block at its left-hand face with incident angle θ1 and reemerges into the air from the right-hand face directed parallel to the block's base. Determine the angle θ1.
A coaxial cable consists of alternating coaxial cylinders of conducting and insulating material. Coaxial cabling is...
A coaxial cable consists of alternating coaxial cylinders of conducting and insulating material. Coaxial cabling is the primary type of cabling used by the cable television industry and is also widely used for computer networks such as Ethernet, on account of its superior ability to transmit large volumes of electrical signal with minimum distortion. Like all other kinds of cables, however, coaxial cables also have some inductance that has undesirable effects, such as producing some distortion and heating.Consider a long...
The figure below shows a cross section across a diameter of a long cylindrical conductor
The figure below shows a cross section across a diameter of a long cylindrical conductor of radius a = 2.00 cm carrying uniform current 159 A. What is the magnitude of the current's magnetic field at the following radial distances?(a) 0_____ T(b) 1.20 cm_____ T(c) 2.00 cm (wire's surface)______ T(d) 3.90 cm______ T
The figure shows a cross section across a long cylindrical conductor of radius a = 2.97...
The figure shows a cross section across a long cylindrical conductor of radius a = 2.97 cm carrying uniform current 27.5 A. What is the magnitude of the current's magnetic field at radial distance (a) 0, (b) 2.10 cm, (c) 2.97 cm (wire's surface), (d)3.84 cm?
