Question

In: Electrical Engineering

Create a circuit that produces 600khz sine wave in Multisim. Provide a Oscilloscope graph in Multisim....

Create a circuit that produces 600khz sine wave in Multisim. Provide a Oscilloscope graph in Multisim. please show the components used

Solutions

Expert Solution

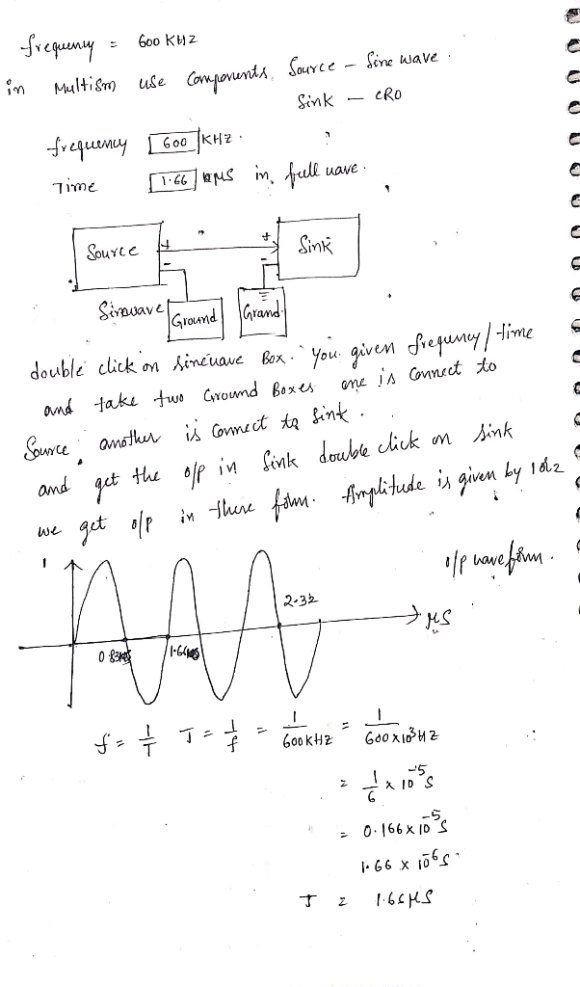

I don't have multism software but I have some knowledge about the software on that basis you can take one source,2ground boxes,1sink that means CRO Source is sine wave and have frequency 600khz that it convert into time scale we get 1.66 microseconds per each cycle. Total information fill on the source box and source positive connection connect to CRO positive connection and those two negetive connections are given to ground that it be shown in below figure.play the CRO means double click on sink box we get output sine wave of 600Khz.
