Question

In: Electrical Engineering

What will be the revised nameplate data for a 3-phase, 60Hz, 480V, 30A, 20kW, 1435 rpm...

What will be the revised nameplate data for a 3-phase, 60Hz, 480V, 30A, 20kW,
1435 rpm totally enclosed fan ventilated induction motor in the following
circumstances?
1. For the use on 3-phase 50Hz supply without modification
11. After rewinding the motor with coils having half as many turns using wires
having twice the cross sectional area


111. For a modified construction of the motor with 10% increase of the active
length

Solutions

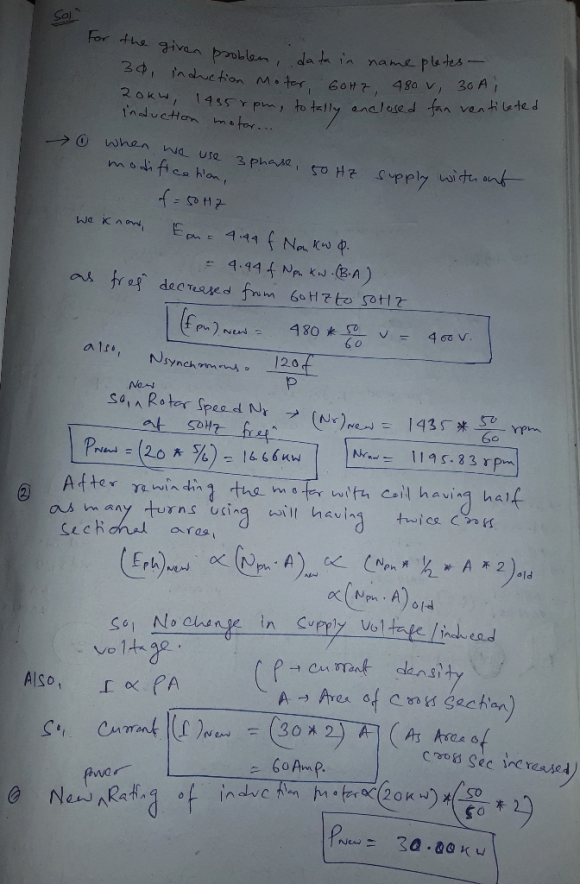

Expert Solution


Related Solutions

3. A 60Hz, single phase line transmits power to an inductive load that has a receiving...
3. A 60Hz, single phase line transmits power to an inductive load that has a receiving voltage of 13.8KV, reactive factor of 0.6 and 5 MVA respectively. If this line has a impedance of 1+j2 ohms per conductor, Calculate the following: The voltage at the sending end (10 pts) b. The transmission line efficiency (10 pts) c. If this line is connected in parallel to a telephone wire and the conductors of the power line is labelled a and b...
Find the main dimensions of a 2500 KVA, 187.5 rpm, 50 Hz, 3 phase, 3 kV,...
Find the main dimensions of a 2500 KVA, 187.5 rpm, 50 Hz, 3 phase, 3 kV, salient pole synchronous generator. The generator is to be a vertical, water wheel type. The specific magnitude loading is 0.6 Wb/m2 and the specific electric loading is 34000 A/m. Use circular pole with ratio of core length to pole pitch=0.65. Find the normal speed.
NIPA data are revised many times. are never revised. are revised once. are revised twice.
NIPA data are revised many times. are never revised. are revised once. are revised twice.
Design a circuit that converts a sinusoidal wave with 480Vrms at 60Hz into a three-phase set...
Design a circuit that converts a sinusoidal wave with 480Vrms at 60Hz into a three-phase set of voltages with 400 Vrms (Phase voltage) at 50 Hz. Suppose that this circuit is loaded with a Y-connected RL- series load with R=50Ω and 50 mH per phase. Make sure that the output THD is less than 5%. Verify your results with simulations. Estimate the power output with simulations in simulink.
A three phase 10kW, 1700rpm, 60Hz, four poles, Y connected induction motor has a no-load speed...
A three phase 10kW, 1700rpm, 60Hz, four poles, Y connected induction motor has a no-load speed of 1750rpm. The rotational mechanical losses are constant and equal to 500W. The core losses are constant and equal to 300W. The copper losses in the stator equal to the copper losses in the rotor at full load. If the rotor resistance per phase is 0.25?, calculate the following: a.The frequency of the induced current in the rotor circuit at full load. b.The percentage...
•The rotor impedance at standstill of a three-phase, Y-connected, 208-V, 60Hz, 8-pole, wound-rotor induction motor is...
•The rotor impedance at standstill of a three-phase, Y-connected, 208-V, 60Hz, 8-pole, wound-rotor induction motor is 0.1 + j0.5 Ω/phase. •Determine the breakdown slip, (0.2) the breakdown (maximum) torque, (458.37 Nm) and the power developed by the motor at maximum torque (34.6kW). •What is the starting torque of this motor? (176.3 Nm) •Determine the resistance that must be inserted in series with the rotor circuit so that the starting torque is 50% of the maximum torque. (0.034Ω)
A motor apply power 10-hp split-phase motor speed at 1700 rpm is used to drive a...
A motor apply power 10-hp split-phase motor speed at 1700 rpm is used to drive a rotary pump, which operates 24 hours per day. An engineer has specified a 7-in small sheave, an 10-in large sheave, and three C112 belts. The service factor of 1.2 was augmented by 0.1 because of the continuous-duty requirement. Analyze the drive and estimate the belt life in passes and hours.
A three-phase asynchronous motor with 380 Δ / 660 λ, 35 Kw, 1400 rpm label on...
A three-phase asynchronous motor with 380 Δ / 660 λ, 35 Kw, 1400 rpm label on the label will be started in 380 volt network. Draw the control and power circuit according to the requests below. A) The motor will be turned right and left B) Motor will be protected against overcurrent and two phases C) The green lamp will light when the engine is turning to the right and the blue lamp will be turning when turning to the...
A 6-pole and three-phase induction motor has synchronous speed of (1000) RPM. a) Find the no-load...
A 6-pole and three-phase induction motor has synchronous speed of (1000) RPM. a) Find the no-load and full-load operating speed of motor for the cases given, 1. 2.5Hz electrical frequency of rotor for no-load condition. 2. 6.3Hz electrical frequency of rotor for full-load condition. b) Find the speed regulation of motor by using parameters found above. c) Determine the electrical frequency of rotor under full-load condition so that speed regulation would be equal to 5%? (Electrical frequency of rotor for...
Record your data from Activity 1 in the boxes below. Enter the data for the sample you used in each trial (5000 rpm, 10000 rpm, etc…)
  Activity 1 Record your data from Activity 1 in the boxes below. Enter the data for the sample you used in each trial (5000 rpm, 10000 rpm, etc…) in the appropriate columns and the corresponding g-force, number of layers, and position of layers position results. You will need to use the following formula to assist with your laboratory report: G-force =0 00001118 x radius of centrifuge arm x (rpm)2 The radius of the centrifuge arm for this instrument is...
