I'm creating a heating control PID project, and the system is first order and is characterized...

I'm creating a heating control PID project, and the system is first order and is characterized using this equation------->>>C(s)/R(s)=1/(sT+1) {PID has not been implemented}. My Question how does this characterization equation(C(s)/R(s)=1/(sT+1)) relate to the PID equation Kp( 1 + 1/(TI*s) + Td*s)

Solutions

Expert Solution

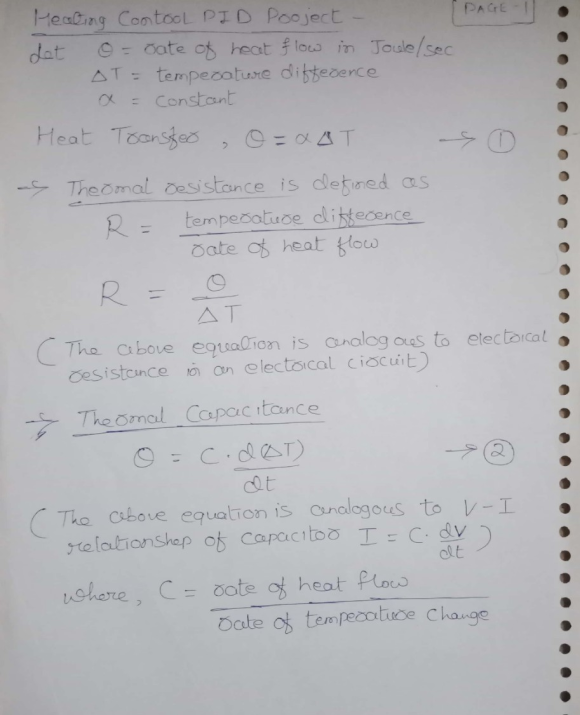

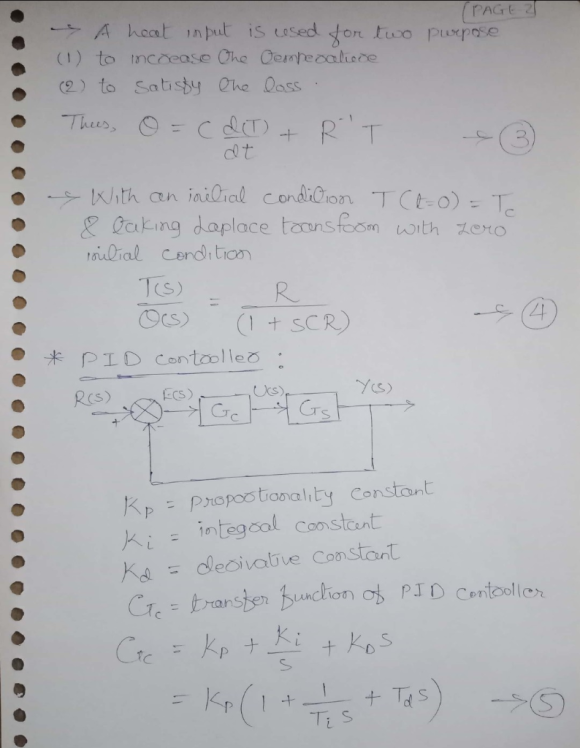

The formulation of temperature control equation with the PID controller is shown as below. The notations used in the equation are basics nomenclature
