With four Boolean inputs mentioned in the first four columns of the following table, report the...

With four Boolean inputs mentioned in the first four columns of the following table, report the outputs from the circuits described by the Boolean expressions in the topmost row of the table in the 5th and 6th columns, in the corresponding rows in the 5th and 6th columns of the table. The circuit in the 5th column uses two AND gates, two NOT gates, and one OR gate. The circuit in the 6th column uses two AND gates and one OR gate. You can draw the circuits or construct partial truth tables which have just the given combinations of input values instead of the 16 possible combinations, if you wish. You can also find the answers by simply using the meaning of AND, OR, and NOT gates.

X1

X2

X3

X4

NOT(X1) AND

((X2 OR X3) AND (NOT(X4)))

(X1 AND X2) OR (X3 AND X4)

0

0

0

0

1

1

0

0

0

1

1

0

Solutions

Expert Solution

Truth Table: 5th column i.e NOT(X1) AND ((X2 OR X3) AND (NOT(X4)))

    X1

    X2

    X3

    X4

   NOT(X1)

    NOT(X4)

     X2 OR X3

     NOT(X1) AND ((X2 OR X3)

    NOT(X1) AND ((X2 OR X3) AND (NOT(X4)))

    0

    0

    0

    0

    1

    1

    0

    0

    0

    0

    1

    1

    0

    1

    1

    1

    1

    1

    1

    1

    0

    0

    0

    1

    1

    0

    0

The Boolean expression for 5th column is F (X1, X2, X3, X4) = ​ M (0, 12)

Mo = 0000 = (X1+X2+X3+X4)

M12 = 1100 = (X1'+X2'+X3+X4)

F (X1, X2, X3, X4) = (X1+X2+X3+X4)(X1'+X2'+X3+X4)

= [X1+X2+(X3+X4)][X1'+X2'+(X3+X4)]
= [(X1+X2)(X1'+X2')+(X3+X4)] { By Distributive law P+QR = (P+Q)(P+R) }
= [X1(X1'+X2')+X2(X1'+X2')+(X3+X4)] { By Distributive law P+QR = (P+Q)(P+R) }
= [(X1X1'+X1X2')+(X1'X2+X2X2')+(X3+X4)] { By Distributive law P(Q+R) = PQ+PR }
= [(0+X1X2')+(X1'X2+0)+(X3+X4)] { We know that PP'=0 }
= [X1X2'+X1'X2+(X3+X4)]

The Simplified Boolean expression for 5th column is F (X1, X2, X3, X4) = X1X2'+X1'X2+ X3+X4

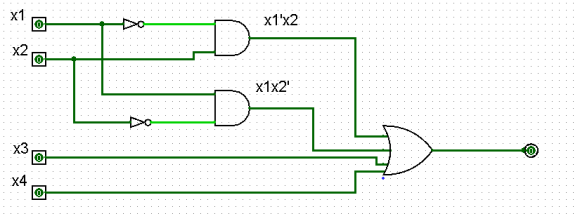

Circuit for 5th column

Truth Table: 6th column i.e (X1 AND X2) OR (X3 AND X4)

    X1

    X2

    X3

    X4

     X1 AND X2

     X3 AND X4

    (X1 AND X2) OR (X3 AND X4)

    0

    0

    0

    0

    0

    0

    0

    0

    1

    1

    0

    0

    0

    0

    1

    1

    0

    0

    1

    0

    1

The Boolean expression for 6th column is  F (X1, X2, X3, X4) = ​ M (0, 6)

Mo = 0000 = (X1+X2+X3+X4)

M12 = 0110 = (X1+X2'+X3'+X4)

F (X1, X2, X3, X4) = (X1+X2+X3+X4)(X1+X2'+X3'+X4)

= (X1+X2+X3+X4)(X1+X2'+X3'+X4)
= [((X1+X4)+X2+X3)((X1+X4)+X2'+X3')]
= [(X1+X4)+(X2+X3)(X2'+X3')] { By Distributive law P+QR = (P+Q)(P+R) }
= [(X1+X4)+(X2(X2'+X3')+X3(X2'+X3'))] { By Distributive law P+QR = (P+Q)(P+R) }
= [(X1+X4)+(X2X2'+X2X3')+(X2'X3+X3X3'))] { By Distributive law P(Q+R) = PQ+PR }
= [(X1+X4)+(0+X2X3')+(X2'X3+0))]  { We know that PP'=0 }
= X1+X4+X2X3'+X2'X3

The Simplified Boolean expression for 5th column is F (X1, X2, X3, X4) = X1+X4+X2X3'+X2'X3

Circuit for 6th column
