Question

In: Civil Engineering

Find the maximum bending moment and locate the point of inflection for a propped cantilever beam...

Find the maximum bending moment and locate the point of inflection for a propped cantilever beam of span 8 m due to a uniformly varying load, whose intensity is 10 kN/m at the fixed support and 2 kN/m at the simple support

Solutions

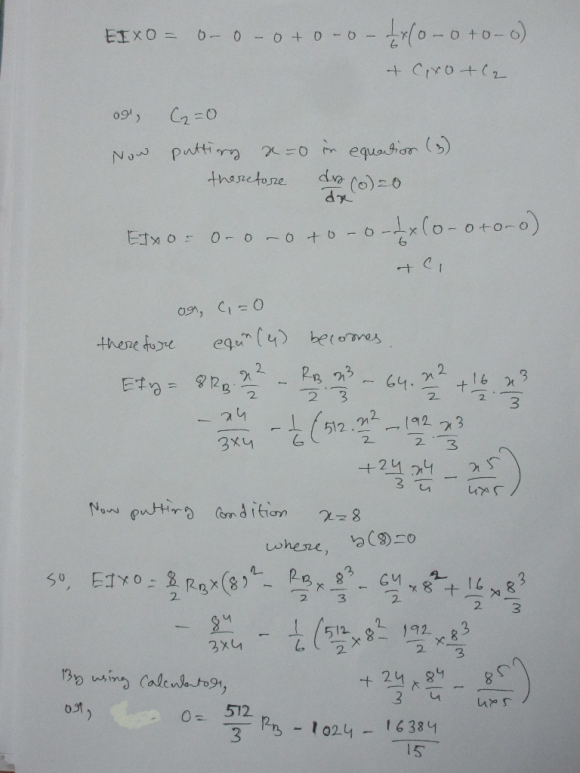

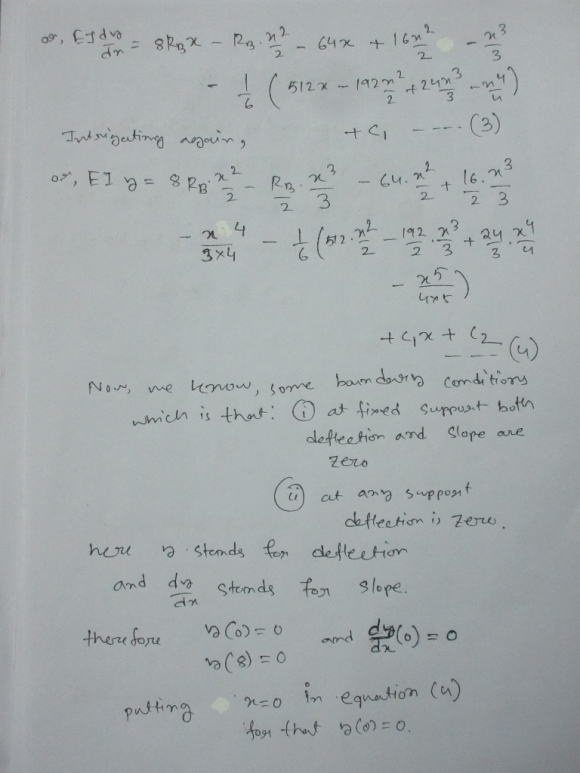

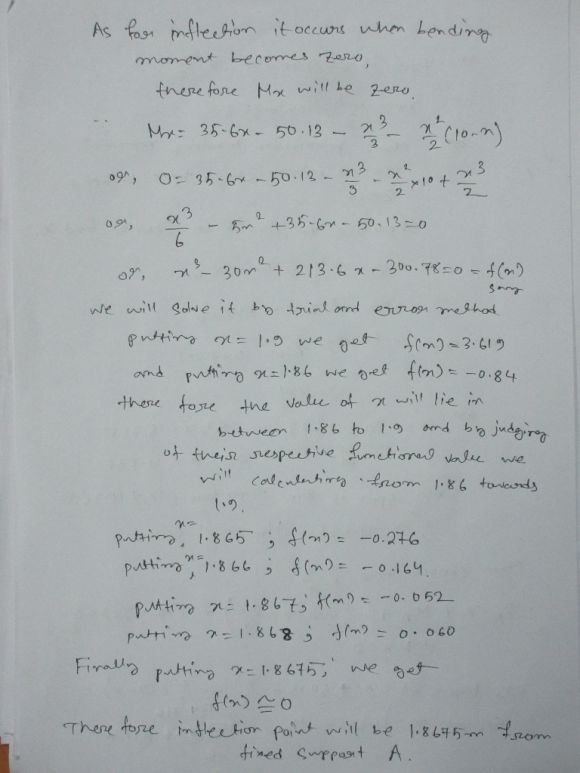

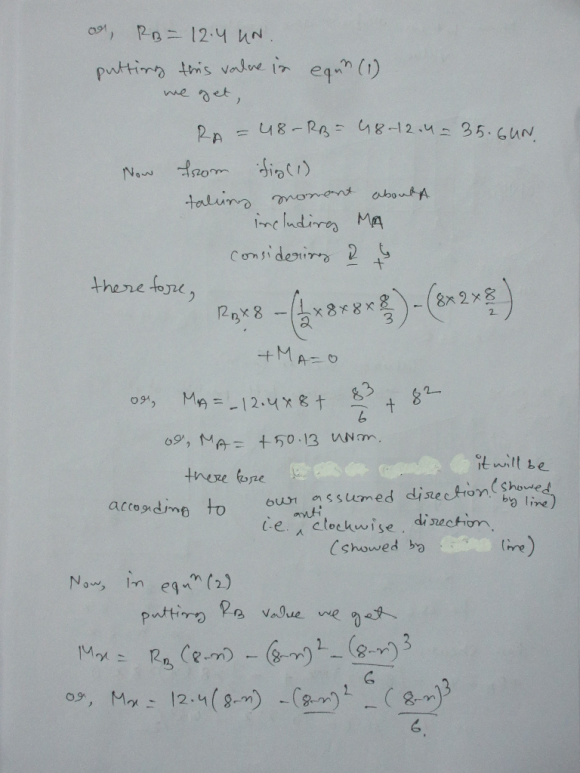

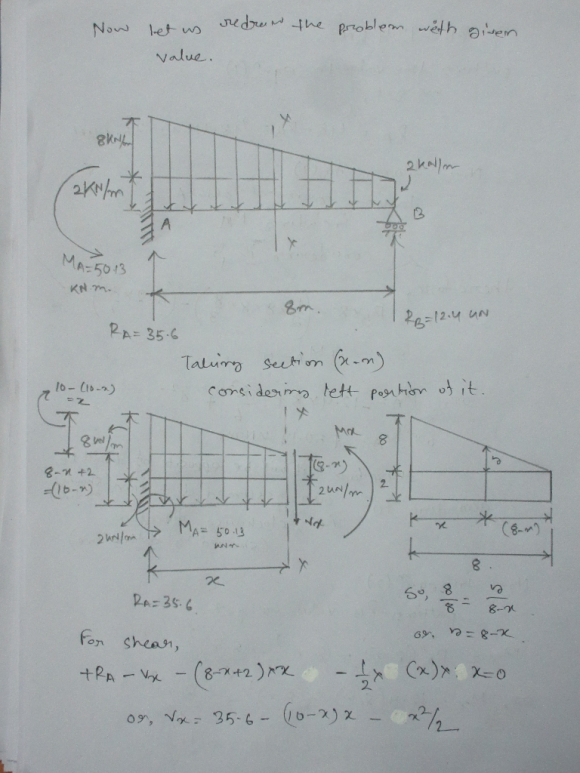

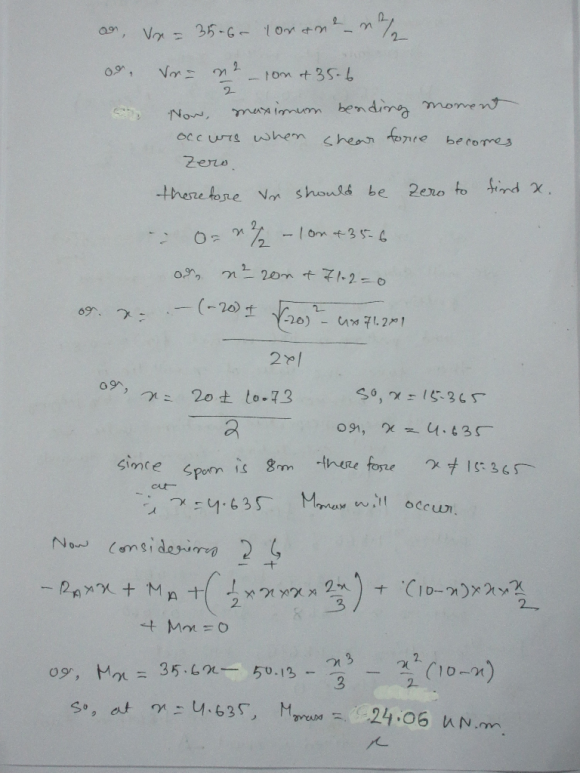

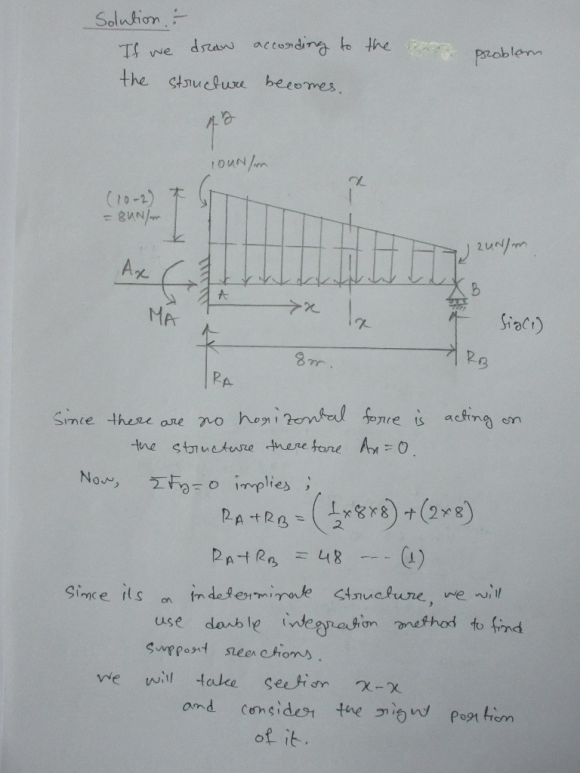

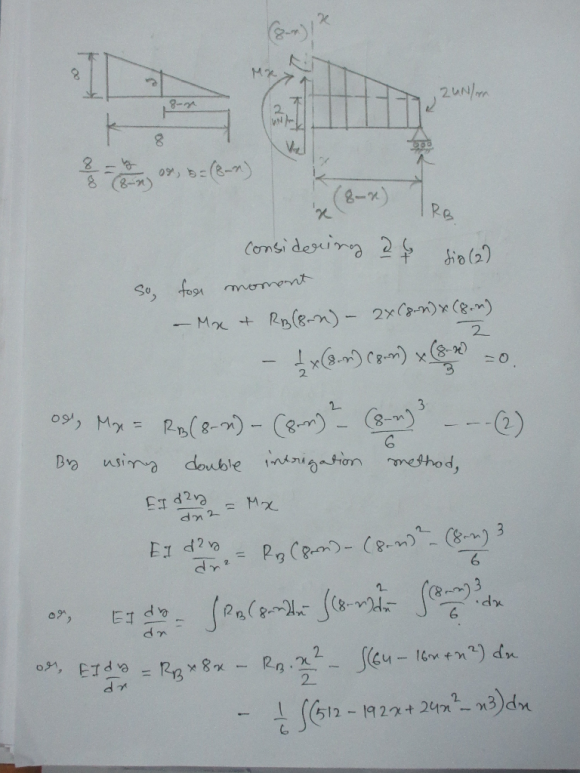

Expert Solution
