draw hertzsprug russell diagram for an open star cluster and a globular cluster and discuss the...

draw hertzsprug russell diagram for an open star cluster and a globular cluster and discuss the differences

Expert Solution

The differences between HR diagrams of both open star cluster and globular clusters are follows:

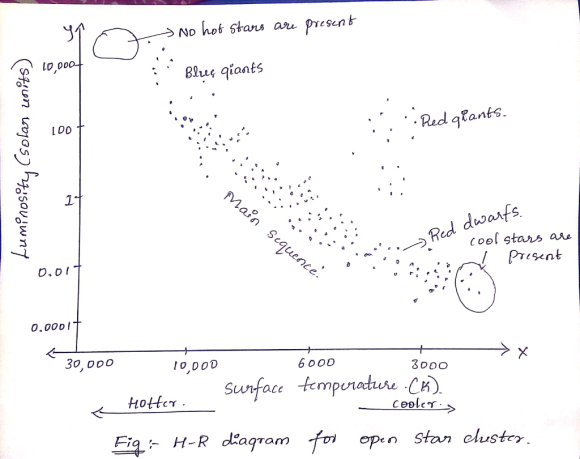

Open star cluster :

HR diagram shows group of hundred of stars which are clustered openly .
Open cluster is filled with young stars that were born in nebula.
Open clusters are located in the spiral arm of milky way galaxy.
H R diagram shows the cluster of bright blue stars.
It contains irregularly shaped grouping of stars.

Globular cluster:

HR diagram shows tens of thousands to hundreds of thousands of stars.
Globular cluster is filled with old stars that were born when the universe was younger .
Globular clusters are located in the halo or bulge of a galaxy.
HR diagram shows the cluster of bright red giant stars.
It contains highly symmetrical balls of star.

genius_generous answered 5 months ago
