Question

In: Physics

How do you use character table to generate a reducible representation of the 3n translational rotation...

How do you use character table to generate a reducible representation of the 3n translational rotation and vibrational degrees of freedom

Solutions

Expert Solution

Solution :

To understand how to generate a reducible representation of the 3n translation, rotation and vibrational degrees of freedom from a character table, let us consider an example of a molecule, BF3.

STEP 1: Identify the point group of the molecule.
BF3 belongs to D3h point group.

STEP 2 : Determination of degrees of freedom
BF3 is a non-linear molecule , with 4 atoms.
Using the equation 3N, there are (3 x 4=12) 12 degrees of freedom. Similarly,using the equation 3n-6, we find that there are (12-6=6) 6 vibrational degrees of freedom.

STEP 3 : Determination of irreducible representations of

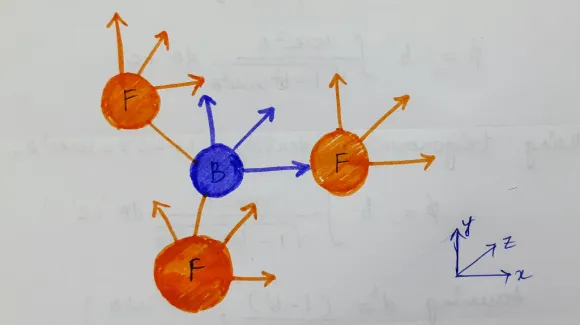

The three axes are put on each atom. is then evaluated by observing the effect on the axes by all the symmetry operations.

E 2C3 3C2 σ h 2S3 v
12 0 -2 4 -2 2

The contributions from each symmetry species are as follows:

Therefore, Γ tot = A1 ’ + A2 ’ + 3E’ + 2A2” + E”. From the above contriutions of each symmetry, we can conclude that, Γ tot has twelve degrees of freedom as already shown in step 2.

STEP 3: DETERMINATION OF :
We know that, Γ tot = Γ trans + Γ rot + Γ vib
From the character table,   Γ trans = E’ + A2
Also, Γ rot = A2’ + E”
Therefore, using Γvib = Γ tot – Γ trans - Γrot, we arrive at Γ vib = A1’ + 2E’ + A2
Γ vib has six degrees of freedom.

STEP 4 : SPLITTING INTO STRETCHES AND BONDS
BF3 has three bonds, so it has 3 stretches and 3 bends.

STEP 5 : DETERMINATION OF IRREDUCIBLE REPRESENTATION OF
One axis is put on each bond.


E 2C3 3C2 σ h 2S3 v
3 0 1 3 0 1

The contributions of each symmetry element are as follows:

Γ stretch = A1’ + E’

STEP 6 : DETERMINATION OF
Γ bend = Γ vib - Γ stretch
Γbend = E’ + A2
