A sphere with radius R has a charge density given by ρ = cr3. Use Gauss's...

A sphere with radius R has a charge density given by

ρ = cr³.

Use Gauss's law to find an expression for the magnitude of the electric field at a distance r from the center of the sphere, where we have the following. (Use the following as necessary: c, r, R, and ε₀. Assume c is positive.)

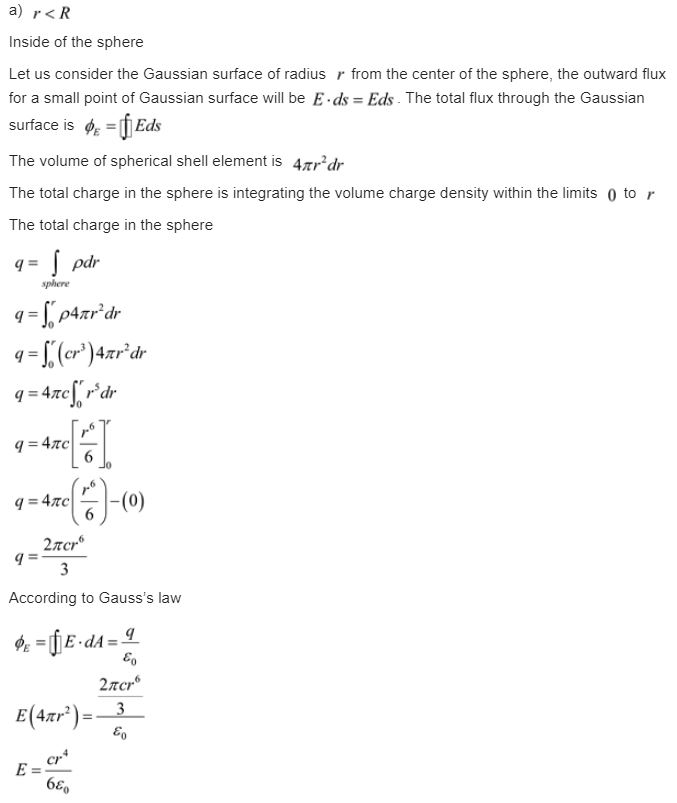

(a)

r < R

E =

(b)

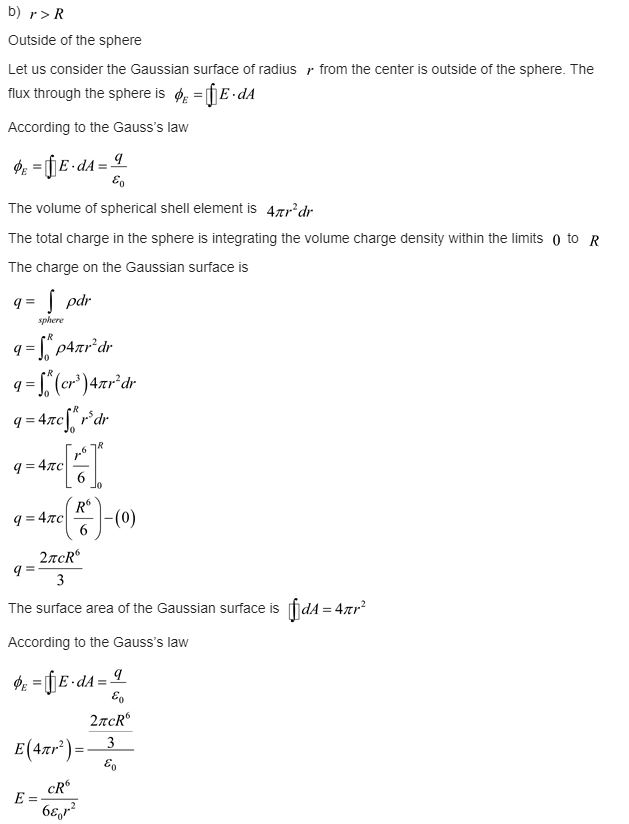

r > R

E =

Expert Solution
