What is the data rate of the following system: The system sends sends a set of...

What is the data rate of the following system:

The system sends sends a set of twp 7-bit ASCII characters as a block. The block is proceeded by 1 start bit. After the two character block there is 1 parity bit and 2 stop bits? The bit time for this system is 0.0000025 seconds per bit.

What is the data rate of the following system:

Expert Solution

The answer to the question is given below.

We know that the data rate is the amount of data being sent over the connection in a second.

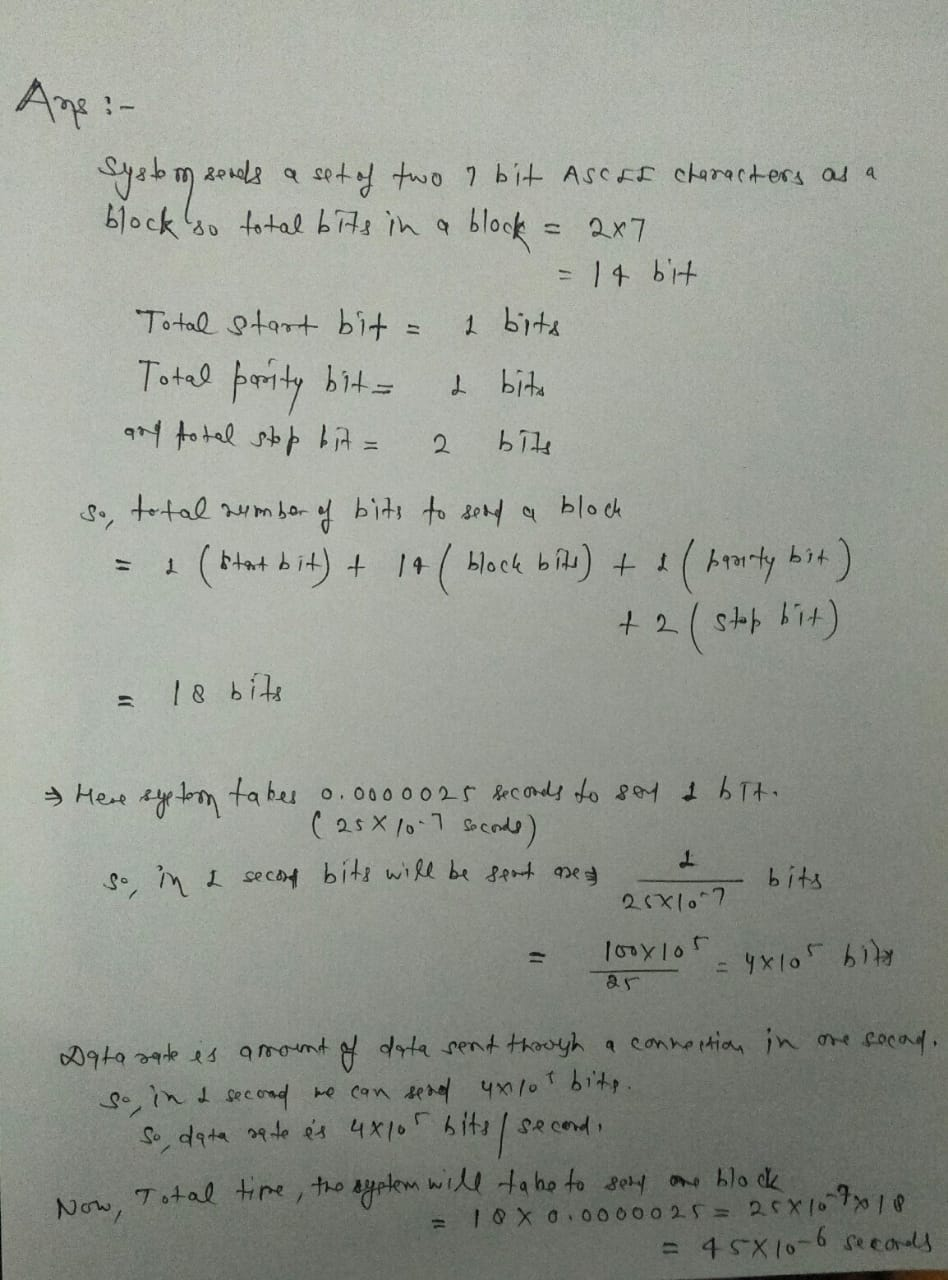

The solution is given in the image below.

If the answer helped please upvote It means a lot. For any query please comment.
